SQUARE D

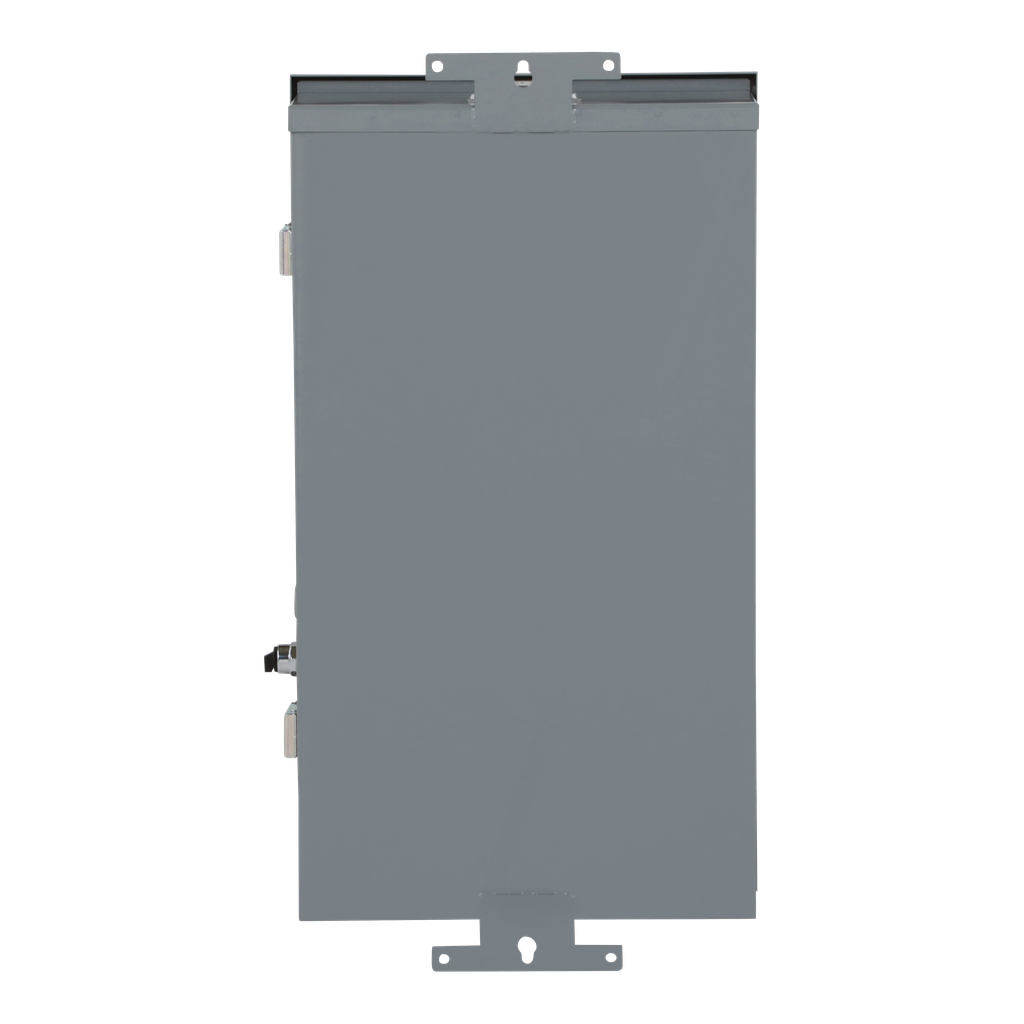

Pump Panel, NEMA Type S, Well Guard, oil field, Size 2, 45A, 25HP, HLL36050M72 circuit breaker, Motor Logic SSOLR, 480VAC 60Hz coil, NEMA 3R

PUMP PANEL

SQD8940XD4S2V06A28H30 8940XD4S2V06A28H30 785901226932
3246.14 / EA
http://schema.org/OutOfStock
Mayer-DDS-Pump Panel, NEMA Type S, Well Guard, oil field, Size 2, 45A, 25HP, HLL36050M72 circuit breaker, Motor Logic SSOLR, 480VAC 60Hz coil, NEMA 3R-2
  • Certifications: NEMA, UL Listed
  • Circuit Breaker Type: HLL
  • Depth: 239 mm
  • Height: 978 mm
  • Line Rated Current: 45 A
  • Mounting Type: Surface
  • NEMA: 2
  • Number of Poles: 3
  • Warranty Length: 18 mth
  • Width: 519 mm
Well-Guard pumping plant panels are designed for pumping applications. This panel is specifically designed for oil field applications. These panels provide extra space for field installation of auxiliary equipment. These panels us Type S non-reversing magnetic starters. Panel has a HLL36050M72 circuit breaker. This panel has a 3 pole NEMA Size 2 starter that has a 45 ampere rating. This NEMA Size 2 starter has a maximum of 25 HP rating three phase. This non-reversing NEMA motor starter has a Motor Logic overload relay with a 15A to 45A range to sense over current conditions. The starters in these panels are available with a wide variety of replaceable coil voltages. The starter in this device has a 440/480 VAC 50/60 Hz operating coil wired for common control. A painted sheet steel NEMA 3R rainproof enclosure is used to protect this starter. Enclosure is 38.50 inches tall, 19.00 inches wide and 9.39 inches deep. A wide variety of accessories are available for Type S starters. This pump panel is supplied with a START momentary push button and a HAND/OFF/AUTO selector switch. These NEMA pump panels with Type S starters are UL listed and marked Suitable for use as Service Equipment. They are also CSA certified.
QTY
  • Product Description
  • Specifications
Well-Guard pumping plant panels are designed for pumping applications. This panel is specifically designed for oil field applications. These panels provide extra space for field installation of auxiliary equipment. These panels us Type S non-reversing magnetic starters. Panel has a HLL36050M72 circuit breaker. This panel has a 3 pole NEMA Size 2 starter that has a 45 ampere rating. This NEMA Size 2 starter has a maximum of 25 HP rating three phase. This non-reversing NEMA motor starter has a Motor Logic overload relay with a 15A to 45A range to sense over current conditions. The starters in these panels are available with a wide variety of replaceable coil voltages. The starter in this device has a 440/480 VAC 50/60 Hz operating coil wired for common control. A painted sheet steel NEMA 3R rainproof enclosure is used to protect this starter. Enclosure is 38.50 inches tall, 19.00 inches wide and 9.39 inches deep. A wide variety of accessories are available for Type S starters. This pump panel is supplied with a START momentary push button and a HAND/OFF/AUTO selector switch. These NEMA pump panels with Type S starters are UL listed and marked Suitable for use as Service Equipment. They are also CSA certified.
  • Environment
    • Product Certifications : UL Listed || NEMA
    • Enclosure Type : weatherproof enclosure indoor/outdoor
    • Nema Degree Of Protection : NEMA 3R
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • China Rohs Regulation : Product out of China RoHS scope. Substance declaration for your information.
    • Eu Rohs Directive : Under investigation
  • Complementary
    • Thermal Overload Type : Motor Logic solid state class 10/20
    • Disconnector Device Type : associated circuit breaker
    • Height : 978 mm
    • Control Type : selector switch HAND-OFF-AUTO) || push-button START)
    • Nema Size : 2
    • Device Mounting : surface
    • Circuit Breaker Type : HLL
    • Maximum Horse Power Rating : 25-25 hp 480 V AC, 3 phase
    • [Uc] Control Circuit Voltage : 480 V AC 60 Hz || 440 V AC 50 Hz
    • Circuit Breaker Ct Rating : 50 A
    • Permissible Voltage : 600 V AC
    • Electrical Connection : screw terminal
    • Line Rated Current : 45 A
    • Protection Type : overload || phase loss || phase unbalance
    • Control Circuit : common control circuit
    • Width : 519 mm
    • Depth : 239 mm
    • Number Of Poles : 3
  • Specifications
    • Product Name : Well-Guard Control
    • Device Application : pumping
    • Device Short Name : S2
