Pump Panel, NEMA Type S, Well Guard, Size 2, 45A, 5kA SCCR, 30HP, 60A Class H and K fuse clip, Motor Logic SSOLR, 440/480VAC 50/60Hz coil, NEMA 3R

PUMP PANEL 480VAC 45AMP NEMA +

SQD8940SSD4030 8940SSD4030 785901011767
3540.63 / EACH
http://schema.org/OutOfStock

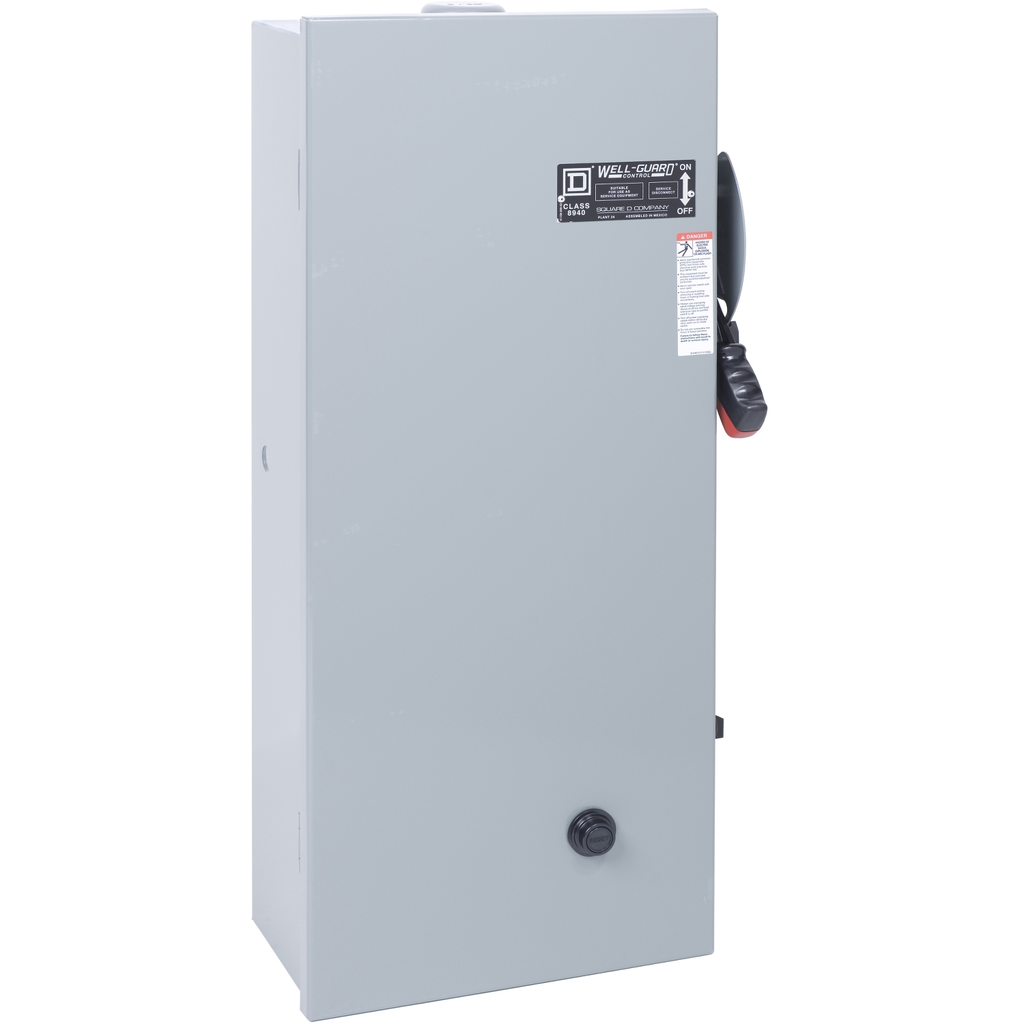

Mayer-DDS-Pump Panel, NEMA Type S, Well Guard, Size 2, 45A, 5kA SCCR, 30HP, 60A Class H and K fuse clip, Motor Logic SSOLR, 440/480VAC 50/60Hz coil, NEMA 3R-2
  • Country of Origin: Mexico
  • Depth: 9.69 in
  • Fuse Type: H, K
  • Height: 39.06 in
  • Number of Poles: 3
  • Warranty Length: 18 mth
  • Width: 15.16 in
Well-Guard pumping plant panels are designed for pumping applications. These panels provide extra space for field installation of auxilliary equipment. These panels us Type S non-reversing magnetic starters. Panel has a 60A fusible disconnect switch. Thi
QTY
  • Product Description
  • Features
  • Specifications
Well-Guard pumping plant panels are designed for pumping applications. These panels provide extra space for field installation of auxilliary equipment. These panels us Type S non-reversing magnetic starters. Panel has a 60A fusible disconnect switch. Thi
  • Uc Control Circuit Voltage
    • 480 V AC 60 Hz
    • 440 V AC 50 Hz
  • Control Type
    • selector switch HAND-OFF-AUTO)
    • push-button START)
  • Permissible Voltage
    • 600 V AC
  • Enclosure Type
    • rainproof enclosure indoor/outdoor
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Protection Type
    • overload
    • phase loss
    • phase unbalance
  • Accessories
    • 9999SX6
    • 9999SX7
    • 9999SX8
  • Maximum Horse Power Rating
    • 30-30 hp 480 V AC, 3 phase
  • Market Segmentation
    • Commercial
    • Industrial
  • Persona Type Names
    • End User
    • Contractor
    • Original Equipment Manufacturer
    • OEM - Control Panelbuilder
    • Panel Builder
  • Persona Type Ids
    • EU
    • LC
    • OM
    • OM8
    • PB
  • Thermal Overload Type
    • Motor Logic solid state class 10/20
  • Market Segmentation Id
    • COMMERCIAL
    • INDUSTRIAL
  • Product Certifications
    • UL Listed
    • NEMA
  • Complementary Attributes
    • Control Circuit : common control circuit
    • Line Rated Current : 45 A
  • Important Information Attributes
    • B2B Bullet Point 1 : Flexible with four overload relays: Motor Logic™ solid state, Adapted Bimetal, and melting alloy types
    • B2B Bullet Point 2 : Pump panels are extremely customizable with other devices and accessories
    • B2B Bullet Point 3 : Robust design and reliable build for long mechanical life and electrical endurance
    • B2B Bullet Point 4 : Serviceable by replacing contacts and coils rather than replacing the entire product
    • B2B Bullet Point 5 : Pump panels, in NEMA Type 3R enclosures, are specifically designed for irrigation or oil field applications.
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-09-17
    • Legacy WEEE Scope : In
    • WEEE Product Category : 5
    • Scope Perimeter : Outside of Europe
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS Eur In Scope : Yes
    • ROHS Eur Status : Will not be Compliant
    • ROHS Eur Full Compliance Status : Not compliant
    • ROHS Eur Full Compliance Status Id : NOT_COMPLIANT
    • China ROHS In Scope : No
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 5 - INITIALIZED WITH DataSCAN OK (Migration)
    • Tier Id : 1
    • Tier : 1
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Associated Fuse Rating : 60 A
    • Device Application : pumping
    • Device Short Name : class 8940 type SS
    • Disconnector Device Type : fusible disconnect switch
    • Electrical Connection : screw terminal
    • Fuse Type : H or K
    • Number Of Poles : 3
    • Package Weight Lbs : 27.669 kg
    • Product Availability : Stock - Normally stocked in distribution facility
    • Range : Square D
    • Returnability : Yes
    • Sustainable Packaging : No
    • Relationshiptype : Compatible relationship
  • Environment Attributes
    • China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=562457&lang=en-us
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : Product out of China RoHS scope. Substance declaration for your information.
    • Eu Rohs Directive : Not compliant
    • Nema Degree Of Protection : NEMA 3R
    • Nema Size : 2
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : Mexico
    • Height : 39.06 in
    • Width : 15.16 in
    • Depth : 9.69 in
