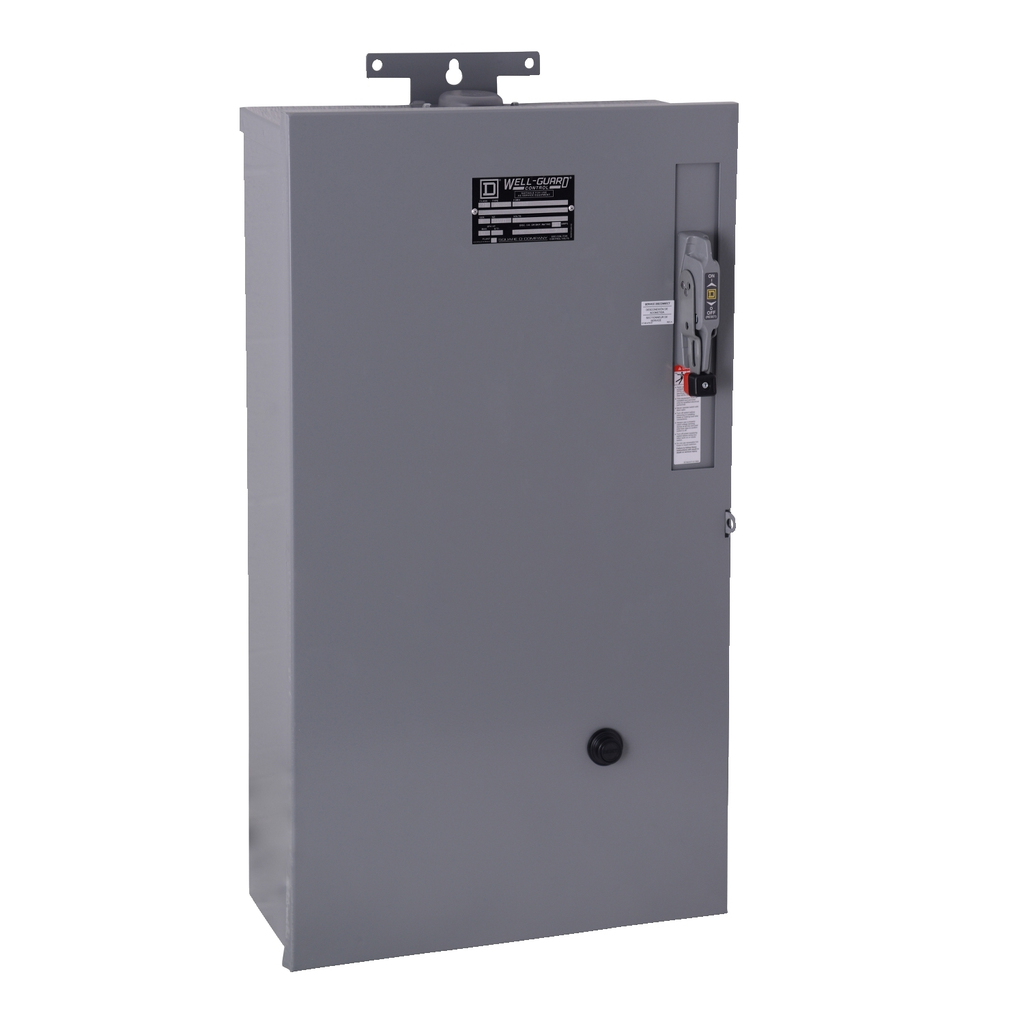

Well-Guard pumping plant panels are designed for pumping applications. This panel is specifically designed for oil field applications. These panels provide extra space for field installation of auxiliary equipment. These panels us Type S non-reversing magnetic starters. Panel has a 30A fusible disconnect switch. Fuse clips are sized for use with dual-element time-delay fuses This panel has a 3 pole NEMA Size 1 starter that has a 27 ampere rating. This NEMA Size 1 starter has a maximum of 10 HP rating three phase. This non-reversing NEMA motor starter has a Motor Logic overload relay with a 9A to 27A range to sense over current conditions. The starters in these panels are available with a wide variety of replaceable coil voltages. The starter in this device has a 110/120 VAC 50/60 Hz operating coil wired for separate control. A painted sheet steel NEMA 3R rainproof enclosure is used to protect this starter. Enclosure is 38.50 inches tall, 19.00 inches wide and 9.39 inches deep. A wide variety of accessories are available for Type S starters. This pump panel is supplied with a HAND/OFF/AUTO selector switch. These NEMA pump panels with Type S starters are UL listed and marked Suitable for use as Service Equipment. They are also CSA certified.

• Control Type
• selector switch HAND-OFF-AUTO)
• Permissible Voltage
• 600 V AC
• Enclosure Type
• weatherproof enclosure indoor/outdoor
• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• UC Control Circuit Voltage
• 120 V AC 60 Hz
• 110 V AC 50 Hz
• Accessories
• 9999SX6
• 9999SX7
• 9999SX8
• Maximum Horse Power Rating
• 10-10 hp 480 V AC, 3 phase
• Market Segmentation
• Commercial
• Industrial
• Persona Type Names
• End User
• Contractor
• OEM - Control Panelbuilder
• Panel Builder
• Persona Type Ids
• EU
• LC
• OM8
• PB
• Thermal Overload Type
• Motor Logic solid state class 10/20
• Market Segmentation Id
• COMMERCIAL
• INDUSTRIAL

• Important Information Attributes
• B2B Bullet Point 1 : Flexible with four overload relays: Motor Logic™ solid state, Adapted Bimetal, and melting alloy types
• B2B Bullet Point 2 : Pump panels are extremely customizable with other devices and accessories
• B2B Bullet Point 3 : Robust design and reliable build for long mechanical life and electrical endurance
• B2B Bullet Point 4 : Serviceable by replacing contacts and coils rather than replacing the entire product
• B2B Bullet Point 5 : Pump panels, in NEMA Type 3R enclosures, are specifically designed for irrigation or oil field applications.
• Local Data Status : Publishable
• Local Publishable Date : 2025-11-13
• Legacy WEEE Scope : In
• WEEE Product Category : 5
• Scope Perimeter : Outside of Europe
• ROHS EUR In Scope : Yes
• ROHS EUR Full Compliance Status : Under investigation
• ROHS EUR Full Compliance Status Id : UNDER_INVESTIGATION
• China ROHS In Scope : No
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : N
• WD Status : 5 - INITIALIZED WITH DataSCAN OK (Migration)
• Tier Id : 2
• Tier : 2
• Function Option Id : STANDARD
• Function Option : Standard
• Device Short Name : S2
• Energy Efficiency Optimized : False
• Number Of Poles : 3
• Package Weight Lbs : 26.751 kg
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Range : Square D
• Returnability : No
• Sustainable Packaging : No
• Relationship Type : Compatible relationship
• Nbr Of Units In Pkg : 1
• Warranty In Months : 18
• Environment Attributes
• China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=562777&lang=en-us
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : Product out of China RoHS scope. Substance declaration for your information.
• EU ROHS Directive : Under investigation
• Nema Size : 1
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Specifications
• Country of Origin : Mexico
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
