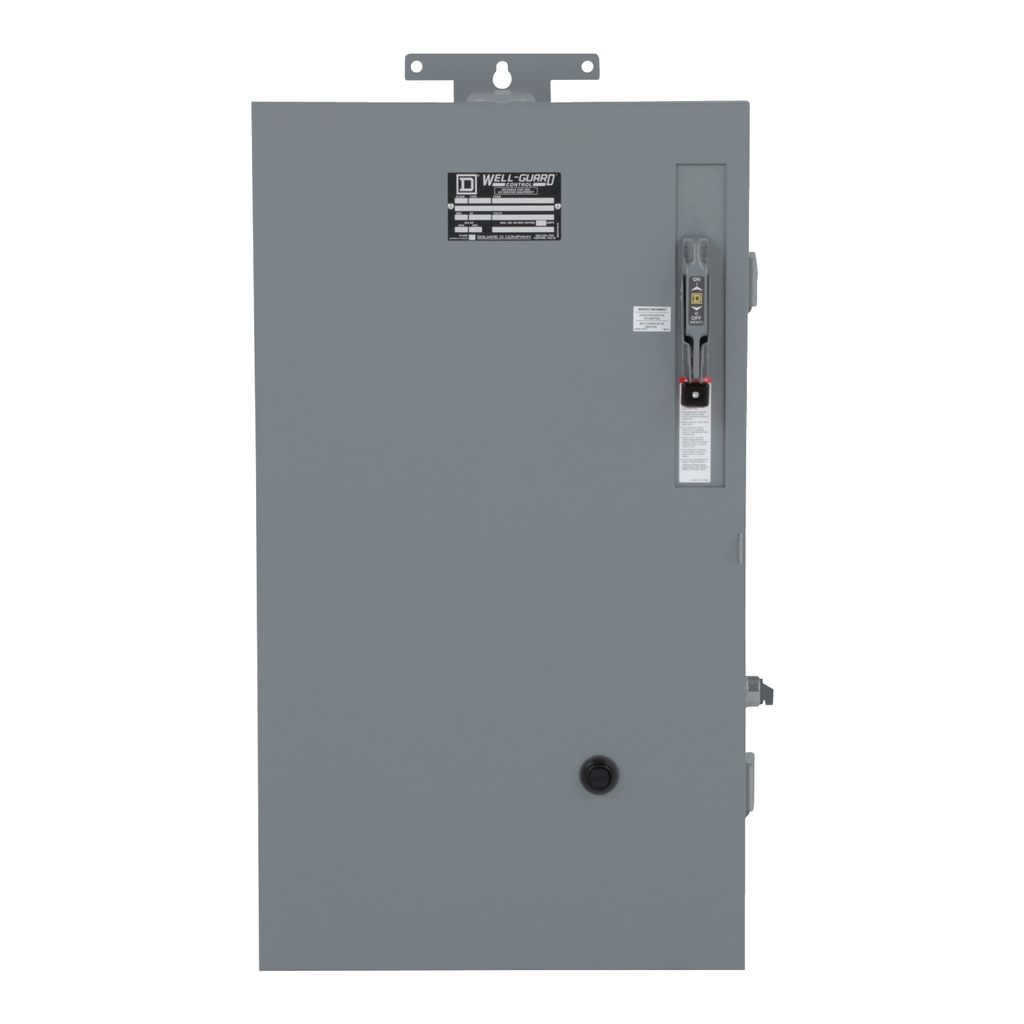

Well-Guard pumping plant panels are designed for pumping applications. This panel is specifically designed for oil field applications. These panels provide extra space for field installation of auxiliary equipment. These panels us Type S non-reversing magnetic starters. Panel has a 30A fusible disconnect switch. Fuse clips are sized for use with dual-element time-delay fuses This panel has a 3 pole NEMA Size 1 starter that has a 27 ampere rating. This NEMA Size 1 starter has a maximum of 10 HP rating three phase. This non-reversing NEMA motor starter has a Motor Logic overload relay with a 9A to 27A range to sense over current conditions. The starters in these panels are available with a wide variety of replaceable coil voltages. The starter in this device has a 440/480 VAC 50/60 Hz operating coil wired for common control. A painted sheet steel NEMA 3R rainproof enclosure is used to protect this starter. Enclosure is 38.50 inches tall, 19.00 inches wide and 9.39 inches deep. A wide variety of accessories are available for Type S starters. This pump panel is supplied with a HAND/OFF/AUTO selector switch. These NEMA pump panels with Type S starters are UL listed and marked Suitable for use as Service Equipment. They are also CSA certified.

• Prop 65
• "WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov"

• Environment
• Product Certifications : UL Listed || NEMA
• Enclosure Type : weatherproof enclosure indoor/outdoor
• Nema Degree Of Protection : NEMA 3R
• Contractual warranty
• Warranty : 18 months
• Environmental data
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : Yes
• California Proposition 65 : "WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov"
• Take-Back : No
• Eu Rohs Directive : Under investigation
• Complementary
• Thermal Overload Type : Motor Logic solid state class 10/20
• Disconnector Device Type : fusible disconnect switch
• Height : 978 mm
• Control Type : selector switch HAND-OFF-AUTO)
• Nema Size : 1
• Device Mounting : surface
• Maximum Horse Power Rating : 10-10 hp 480 V AC, 3 phase
• [Uc] Control Circuit Voltage : 480 V AC 60 Hz || 440 V AC 50 Hz
• Permissible Voltage : 600 V AC
• Fuse Type : H or K
• Electrical Connection : screw terminal
• Line Rated Current : 27 A
• Protection Type : overload || phase loss || phase unbalance
• Control Circuit : common control circuit
• Width : 519 mm
• Depth : 239 mm
• Associated Fuse Rating : 30 A
• Number Of Poles : 3
• Specifications
• Country of Origin : Mexico
• Width : 519 mm
• Height : 978 mm
• Product Name : Well-Guard Control
• Device Application : pumping
• Device Short Name : S2
