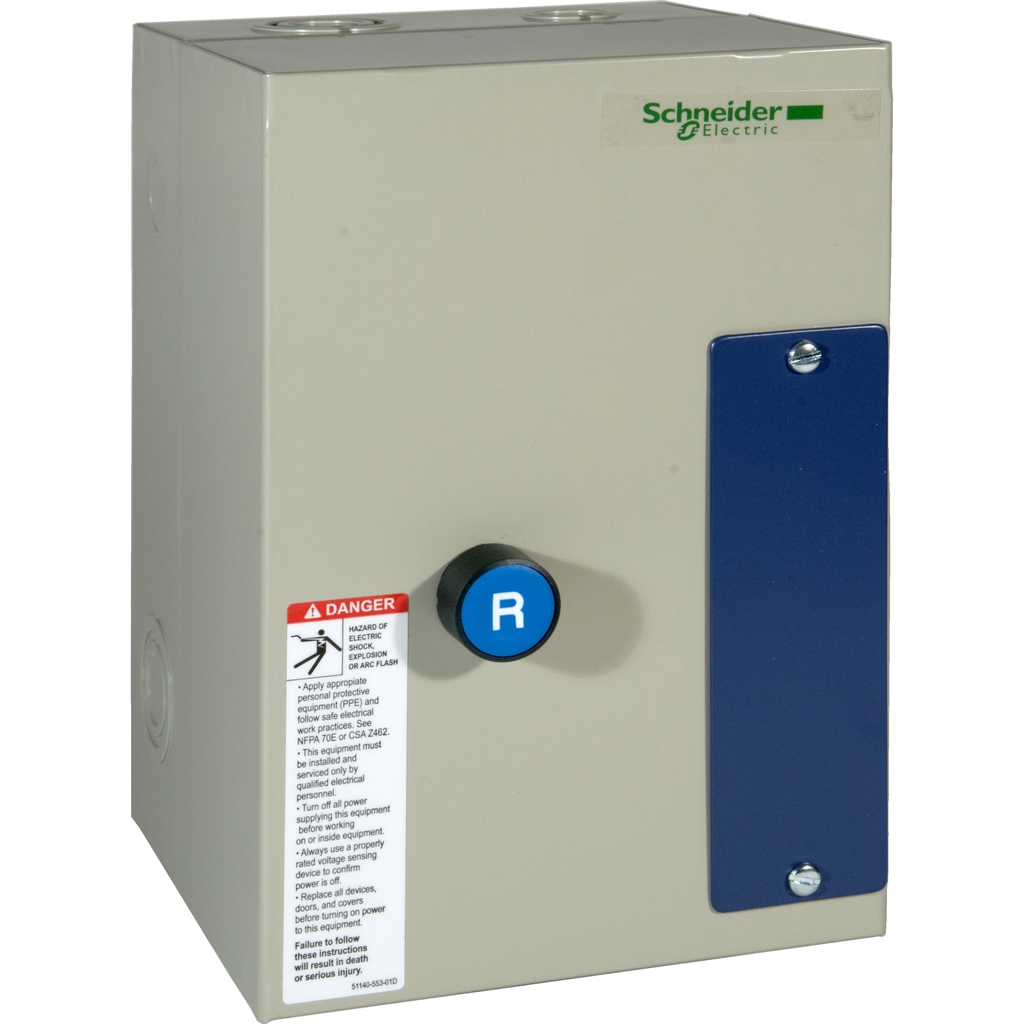

Full voltage nonversing starter, TeSys Deca, 3P, Type 1, 25A, 120VAC coil, unfused

FULL-VOLTAGE NON-REVERSING IEC

SQDLE1D253A62OG70 LE1D253A62OG70 785901792956
240.22 / EA
http://schema.org/OutOfStock
Mayer-DDS-Full voltage nonversing starter, TeSys Deca, 3P, Type 1, 25A, 120VAC coil, unfused-1
  • Warranty Length: 18 mth
QTY
  • Features
  • Specifications
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
  • Environment
    • Product Certifications : CSA || UL || IEC
    • Nema Degree Of Protection : NEMA 1 steel
  • Contractual warranty
    • Warranty : 18 months
  • Environmental data
    • Packaging Made With Recycled Cardboard : No
    • Environmental Disclosure : ENVPEP111273EN
    • Packaging Without Single Use Plastic : No
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • China Rohs Regulation : X
    • Circularity Profile : N/A
    • Take-Back : No
    • Pvc Free : Yes
  • Complementary
    • [Uc] Control Circuit Voltage : 600 V AC
    • [Ue] Rated Operational Voltage : 120 V AC 50/60 Hz
    • Auxiliary Contact Composition : 1 NO + 1 NC
    • Maximum Horse Power Rating : 2-2 hp 120 V AC, 1 phase || 3-3 hp 240 V AC, 1 phase || 7.5-7.5 hp 208 V AC, 3 phase || 7.5-7.5 hp 230 V AC, 3 phase || 15-15 hp 460 V AC, 3 phase || 20-20 hp 575 V AC, 3 phase
    • Protection Type : switch-disconnector fuse
    • Location Of Connection : line
    • [Ie] Rated Operational Current Ac : 25 A
  • Specifications
    • Country of Origin : Mexico
    • Range Of Product : Instakits
    • Product Or Component Type : full voltage starter
    • Motor Starter Type : non reversing
