SQUARE D

IEC Starter, TeSys LE1, full voltage non reversing, unfused, 18A, 5HP at 460VAC, 120VAC 50/60Hz coil, NEMA 1

18A 120V 3P FVNR TYPE 1

SQDLE1D183A62OG70 LE1D183A62OG70 785901562528
219.45 / EA
http://schema.org/OutOfStock

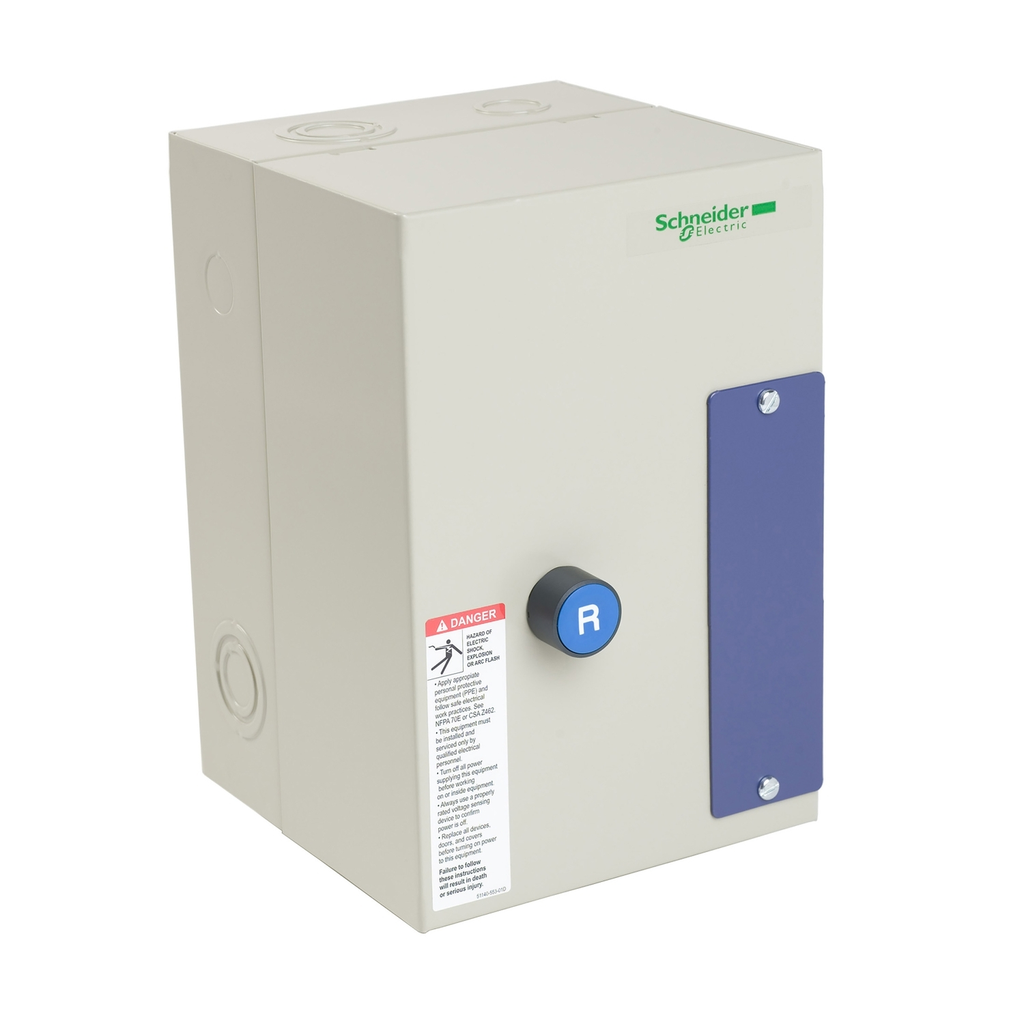

Mayer-DDS-IEC Starter, TeSys LE1, full voltage non reversing, unfused, 18A, 5HP at 460VAC, 120VAC 50/60Hz coil, NEMA 1-1
  • Certifications: CSA, IEC, UL
  • Contact Configuration: 1 NO + 1 NC
  • Warranty Length: 18 mth
TeSys LE1 enclosed IEC full voltage starters are available in Type 1 and Type 12/3R enclosures. The enclosed TeSys LE1 starters use TeSys D contactors and standard TeSys D accessories and all Insta-Kits control units and control power transformer kits. This enclosed IEC full voltage starter has a LC1D18G7 contactor. This enclosed IEC starter is without an line protection. Contactor has a 5HP at 208VAC, 5HP at 230VAC, 10HP at 460VAC and 15HP at 600VAC 3 phase ratings. Contactor has a 1HP at 120VAC and 3HP at 240VAC single phase ratings. Contactor has a 120VAC 50/60Hz coil. Contactor has one normally open and one normally closed auxiliary contact. Enclosed starter is not supplied with an overload relay or control transformer. Enclosure is a general purpose sheet steel that is rated NEMA Type 1. This TeSys LE1 IEC encosed starter is UL Listed, CSA certified and IEC certified.
QTY
  • Product Description
  • Specifications
TeSys LE1 enclosed IEC full voltage starters are available in Type 1 and Type 12/3R enclosures. The enclosed TeSys LE1 starters use TeSys D contactors and standard TeSys D accessories and all Insta-Kits control units and control power transformer kits. This enclosed IEC full voltage starter has a LC1D18G7 contactor. This enclosed IEC starter is without an line protection. Contactor has a 5HP at 208VAC, 5HP at 230VAC, 10HP at 460VAC and 15HP at 600VAC 3 phase ratings. Contactor has a 1HP at 120VAC and 3HP at 240VAC single phase ratings. Contactor has a 120VAC 50/60Hz coil. Contactor has one normally open and one normally closed auxiliary contact. Enclosed starter is not supplied with an overload relay or control transformer. Enclosure is a general purpose sheet steel that is rated NEMA Type 1. This TeSys LE1 IEC encosed starter is UL Listed, CSA certified and IEC certified.
  • Environment
    • Product Certifications : UL || IEC || CSA
    • Nema Degree Of Protection : NEMA 1 steel
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • China Rohs Regulation : X
    • Circularity Profile : N/A
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP111273EN
    • Sustainable Offer Status : Green Premium product
    • Pvc Free : Yes
    • Toxic Heavy Metal Free : Yes
    • Eu Rohs Directive : Compliant
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
    • Reach Free Of Svhc : Yes
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
  • Complementary
    • [Uc] Control Circuit Voltage : 600 V AC
    • [Ue] Rated Operational Voltage : 120 V AC 50/60 Hz
    • Auxiliary Contact Composition : 1 NO + 1 NC
    • Maximum Horse Power Rating : 25-25 hp 575 V AC, 3 phase || 5-5 hp 208 V AC, 3 phase || 5-5 hp 230 V AC, 3 phase || 10-10 hp 460 V AC, 3 phase
    • Location Of Connection : line
    • [Ie] Rated Operational Current Ac : 18 A
  • Specifications
    • Motor Starter Type : non reversing
    • Range Of Product : Instakits
    • Product Or Component Type : full voltage starter
