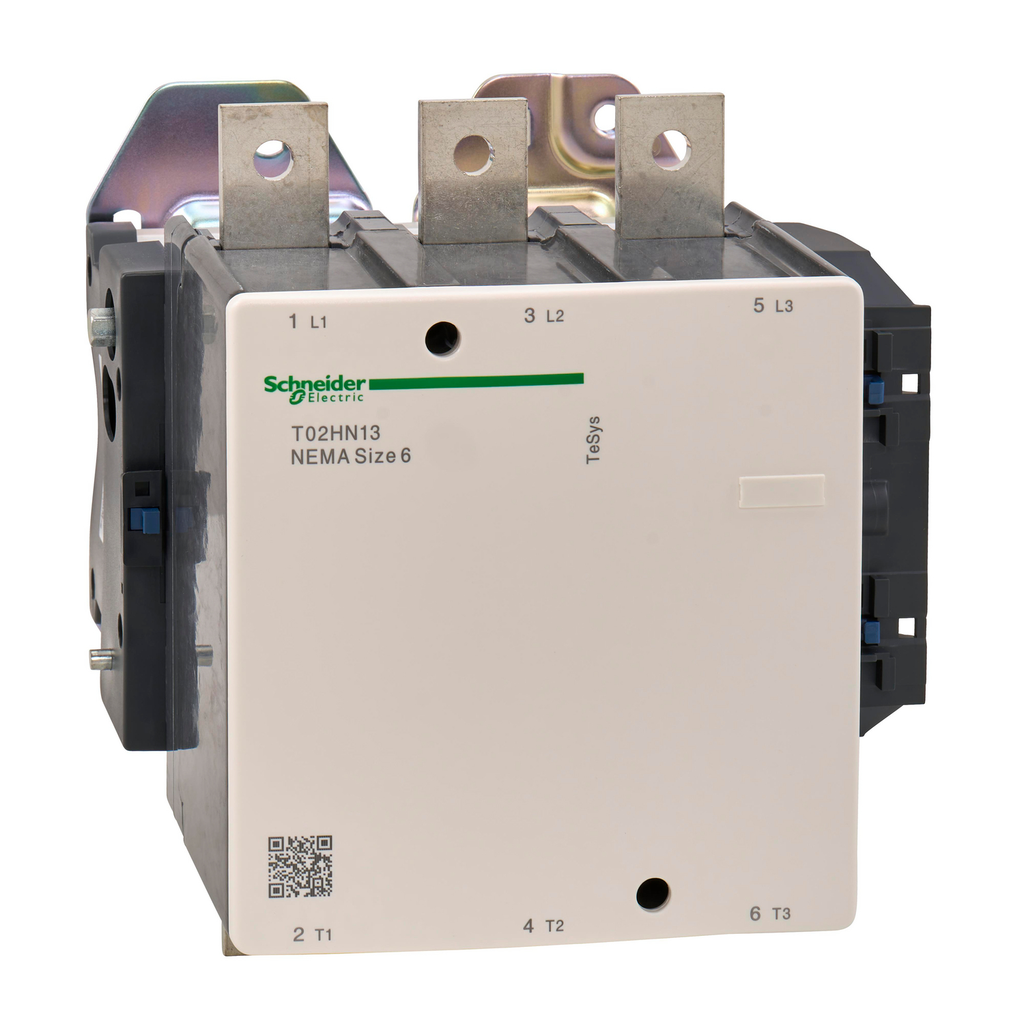

NEMA Contactor, TeSys N, nonreversing, Size 6, 540A, 400HP at 460VAC, 3 pole, 3 phase

CONTACTOR - TESYS NEMA SIZE 6

SQDT02HN13 T02HN13 3606480575273
21843.57 / EA
http://schema.org/OutOfStock
Mayer-DDS-NEMA Contactor, TeSys N, nonreversing, Size 6, 540A, 400HP at 460VAC, 3 pole, 3 phase-1
TeSys N contactors and starters conform to NEMA ICS2 standards. The NEMA size is printed directly on the face of the contactor. The 3 pole NEMA size 6 motor starter has a 540 amperage continuous current rating. It also has ratings of 400HP at 460VAC three phase. This motor starter has a Motor Logic solid state overload relay with a Class 10/20 rating. This motor starter is UL listed and CSA Certified.
QTY
  • Product Description
  • Features
  • Specifications
TeSys N contactors and starters conform to NEMA ICS2 standards. The NEMA size is printed directly on the face of the contactor. The 3 pole NEMA size 6 motor starter has a 540 amperage continuous current rating. It also has ratings of 400HP at 460VAC three phase. This motor starter has a Motor Logic solid state overload relay with a Class 10/20 rating. This motor starter is UL listed and CSA Certified.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
  • Complementary Attributes
    • Maximum Horse Power Rating : 150 hp 200 V AC, 200 hp 230 V AC, 400 hp 460 V AC, 400 hp 575 V AC
    • Ue Rated Operational Voltage : 600 V AC
    • Control Circuit : common control circuit
    • Line Rated Current : 540 A
  • Important Information Attributes
    • Persona Type Ids : EU, LC, OM, OM8, PB, SC
    • Persona Type Names : End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician
    • Market Segmentation Id : COMMERCIAL, INDUSTRIAL
    • Market Segmentation : Commercial, Industrial
    • Electrical Connection : lugs ordered separately
    • Certificate Agency : UL Listed, CSA
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-04-12
    • Return Indicator : Y
    • Stocking Flag : N
    • Stock Policy : 2
    • Device Type : LV equipment - LV contactor
    • Serviceability : No
    • Traceability : No
    • Field Service Division : PPIBS
    • Average Life Duration : 20 year(s)
    • Weee Scope : In
    • Weee Product Category : 5
    • Scope Perimeter : At least in Europe
    • Rohs Eur In Scope : Yes
    • Rohs Eur Status : Compliant By Exemption
    • Rohs Eur Conformity Date : 2022
    • Rohs Eur Full Compliance Status : Compliant By Exemption
    • China Rohs In Scope : No
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Tier Id : 2
    • Tier : 2
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Product Kit Identifier : N
    • Contactor Application : non-reversing
    • Control Circuit : common control circuit
    • Energy Efficiency Optimized : False
    • Phase : 3 phase
    • Poles Description : 3P
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : contactor
    • Range Of Product : TeSys N
    • Returnability : Yes
    • Sustainable Packaging : No
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Warranty In Months : 18
    • Pep Code : ENVPEP1112001EN
    • Offer Owner Code : 190788
    • Pn : 1
  • Environment Attributes Main
    • China Rohs Regulation : Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP1112001EN
    • Eu Rohs Directive : Compliant By Exemption
    • Nema Degree Of Protection : not rated (open device)
    • Nema Size : 6
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : No
    • Pep Code : ENVPEP1112001EN
  • General Attributes
    • Phase : 3 phase
    • Product Or Component Type : contactor
    • Range Of Product : TeSys N
  • Specifications
    • Country of Origin : Czechia, United States
