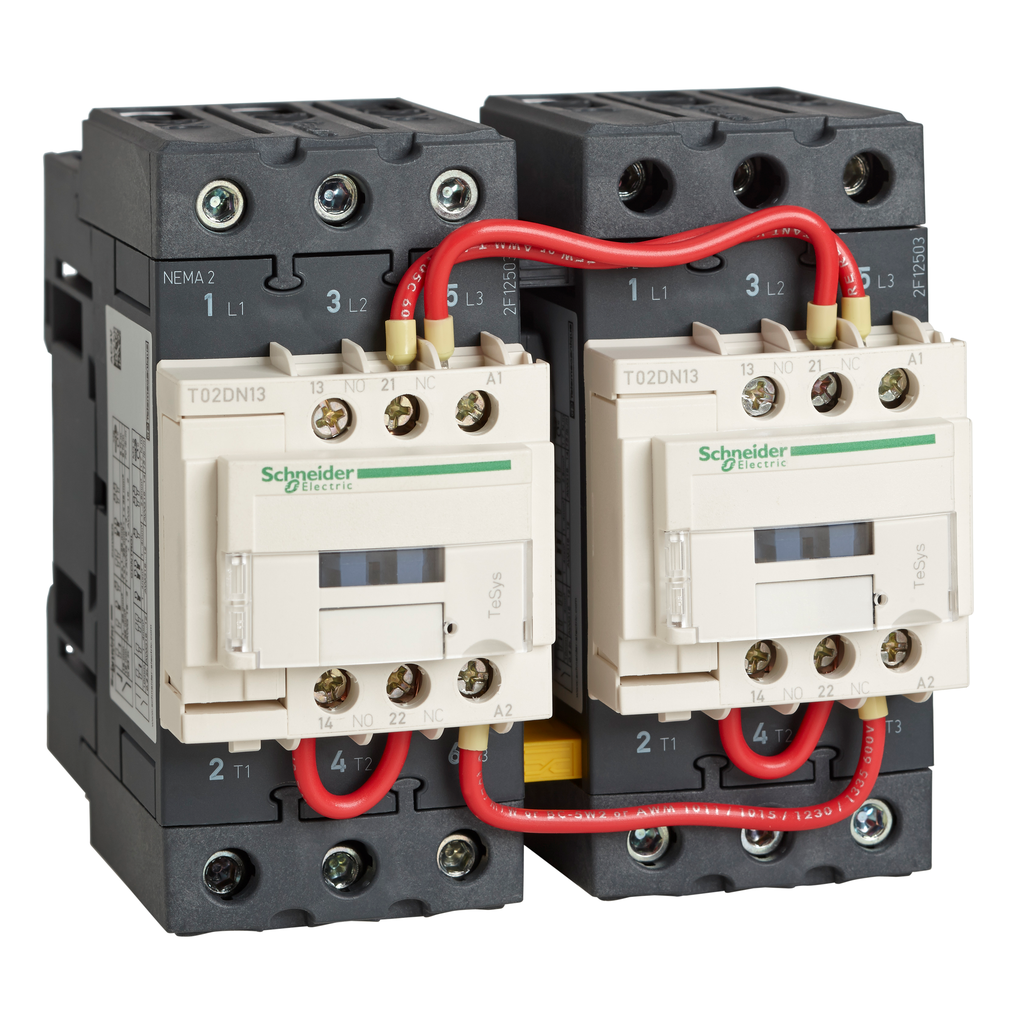

NEMA Contactor, TeSys N, reversing, Size 2, 45A, 25HP at 460VAC, 3 pole, 3 phase, 120VAC 50/60Hz coil, open

TeSys NEMA Sz2 REV CONTACTOR 3

SQDT02DN23G7 T02DN23G7 3606480575129
1553.21 / EA
http://schema.org/OutOfStock
Mayer-DDS-NEMA Contactor, TeSys N, reversing, Size 2, 45A, 25HP at 460VAC, 3 pole, 3 phase, 120VAC 50/60Hz coil, open-1
  • Country of Origin: France
TeSys N contactors and starters conform to NEMA ICS2 standards. The NEMA size is printed directly on the face of the contactor. This NEMA size 2 reversing contactor consists of contactors that are mechanically and electrically interlocked. This 3 pole reversing contactor mounts on 35mm DIN rail and has a 45 amperage continuous current rating. This contactor has 3 HP at 115 VAC and 7.5 HP at 230 VAC single phase ratings. The contactor also has ratings of 10 HP at 200, 15 HP at 230 VAC and 25 HP at 460 and 575 VAC poly phase. The reversing contactor is wired for common control with a 120 VAC 50/60 Hz replaceable coil. Contactor has 1 normally open and 1 normally closed auxiliary contact. This contactor is not in an enclosure. This contactor is 5.47 inches tall, 4.67 inches wide and 4.72 inches deep. It weighs 4.56 lbs. The screw clamp terminals will accept power wires from 16 AWG to 4 AWG and control wires from 16 AWG to 12 AWG. This TeSys N contactor is UL listed and CSA Certified.
QTY
  • Product Description
  • Features
  • Specifications
TeSys N contactors and starters conform to NEMA ICS2 standards. The NEMA size is printed directly on the face of the contactor. This NEMA size 2 reversing contactor consists of contactors that are mechanically and electrically interlocked. This 3 pole reversing contactor mounts on 35mm DIN rail and has a 45 amperage continuous current rating. This contactor has 3 HP at 115 VAC and 7.5 HP at 230 VAC single phase ratings. The contactor also has ratings of 10 HP at 200, 15 HP at 230 VAC and 25 HP at 460 and 575 VAC poly phase. The reversing contactor is wired for common control with a 120 VAC 50/60 Hz replaceable coil. Contactor has 1 normally open and 1 normally closed auxiliary contact. This contactor is not in an enclosure. This contactor is 5.47 inches tall, 4.67 inches wide and 4.72 inches deep. It weighs 4.56 lbs. The screw clamp terminals will accept power wires from 16 AWG to 4 AWG and control wires from 16 AWG to 12 AWG. This TeSys N contactor is UL listed and CSA Certified.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
  • Environmental
    • Product Certifications : UL Listed || CSA
    • Nema Degree Of Protection : not rated (open device)
  • Specifications
    • Country of Origin : France
    • Range Of Product : TeSys N
    • Nema Size : 2
    • Contactor Application : reversing
    • Product Or Component Type : contactor
    • Maximum Horse Power Rating : 10 hp 200 V AC || 15 hp 230 V AC || 25 hp 460 V AC || 25 hp 575 V AC
  • Complementary
    • [Uc] Control Circuit Voltage : 120 V AC
    • Auxiliary Contact Composition : 1 NO + 1 NC
    • Electrical Connection : screw clamp terminals
    • Phase : 3 phase
    • Poles Description : 3P
    • Line Rated Current : 45 A
    • Control Circuit : common control circuit
    • [Ue] Rated Operational Voltage : 600 V AC
  • Environmental data
    • Packaging Made With Recycled Cardboard : Yes
    • Environmental Disclosure : ENVPEP110229EN
    • Packaging Without Single Use Plastic : Yes
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
    • China Rohs Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
    • Circularity Profile : ENVEOLI110229EN
    • Take-Back : No
    • Pvc Free : Yes
