SQUARE D

NEMA Contactor and NEMA Motor Starter, Type S, replacement contact kit, 8502SC, 8536SC, 8903SM, NEMA size 1 & 1P, 30 Amp, 3 pole

PARTS-KIT - CONTACT

SQD9998SL3 9998SL3 785901867227
250.72 / EACH
http://schema.org/OutOfStock
NEMA Contactor and NEMA Motor Starter, Type S, replacement contact kit, 8502SC, 8536SC, 8903SM, NEMA size 1 & 1P, 30 Amp, 3 pole
  • Country of Origin: USA
  • Depth: 4.5 in
  • Height: 1.5 in
  • Net Weight: 0.08 kg
  • Number of Poles: 3
  • Warranty Length: 18 mth
  • Weight: 0.08 kg
  • Width: 3 in

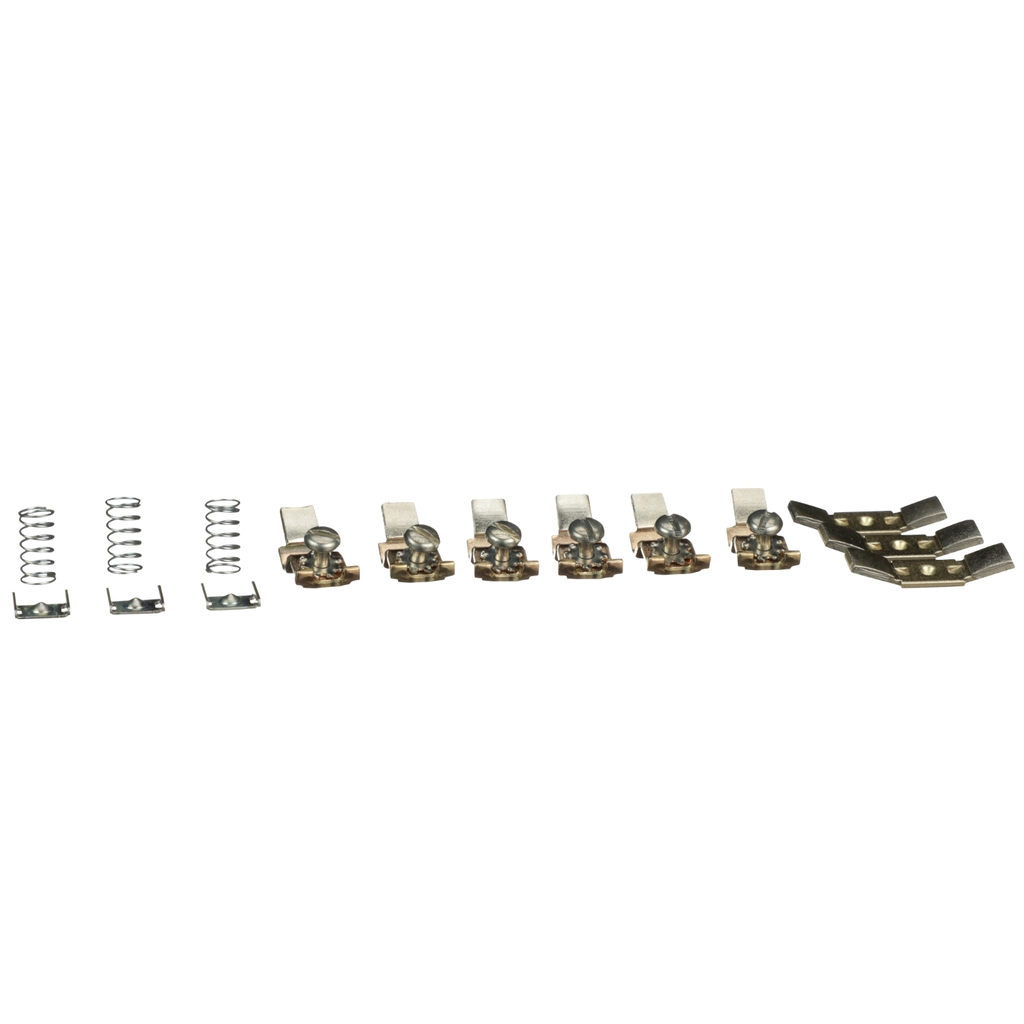

Type S magnetic contactors and starters are for motor control applications. 8903S lighting contactors are for lighting control applications. Type S contacts are easily replaced. This extends the life of the NEMA Size 1 contactor or starters or 30A lighting contactor. This replacement contact kit is for 3 pole 8502SC contactors, 8536SC starters and 8903SM lighting contactors. Kit includes the movable and stationary contacts and needed hardware for 3 poles.
QTY
  • Product Description
  • Features
  • Specifications
Type S magnetic contactors and starters are for motor control applications. 8903S lighting contactors are for lighting control applications. Type S contacts are easily replaced. This extends the life of the NEMA Size 1 contactor or starters or 30A lighting contactor. This replacement contact kit is for 3 pole 8502SC contactors, 8536SC starters and 8903SM lighting contactors. Kit includes the movable and stationary contacts and needed hardware for 3 poles.
  • Prop 65
    • "WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov"
  • Complementary
    • Height : 1.5 in
    • Nema Size : 1P || 1
    • Net Weight : 0.08 kg
    • Width : 3 in
    • Depth : 4.5 in
    • Number Of Poles : 3
  • Environmental data
    • Packaging Made With Recycled Cardboard : No
    • Halogen Content Performance : Halogen free product
    • Packaging Without Single Use Plastic : No
    • California Proposition 65 : "WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov"
    • Circularity Profile : N/A
    • Take-Back : No
    • Pvc Free : Yes
  • Specifications
    • Country of Origin : United States
    • Width : 3 in
    • Height : 1.5 in
    • Weight : 0.08 kg
    • Product Or Component Type : contact kit
    • Accessory / Separate Part Destination : class 8536 type S starter || class 8903 contactor
  • Contractual warranty
    • Warranty : 18 months
