Contactor coil, TeSys Deca, LXD3, 220V AC 50/60Hz for 40…65A contactor

D40A to D65A Coil 220 VAC 50/6

SQDLXD3M7 LXD3M7 3389119410410
63.09 / EA
http://schema.org/OutOfStock

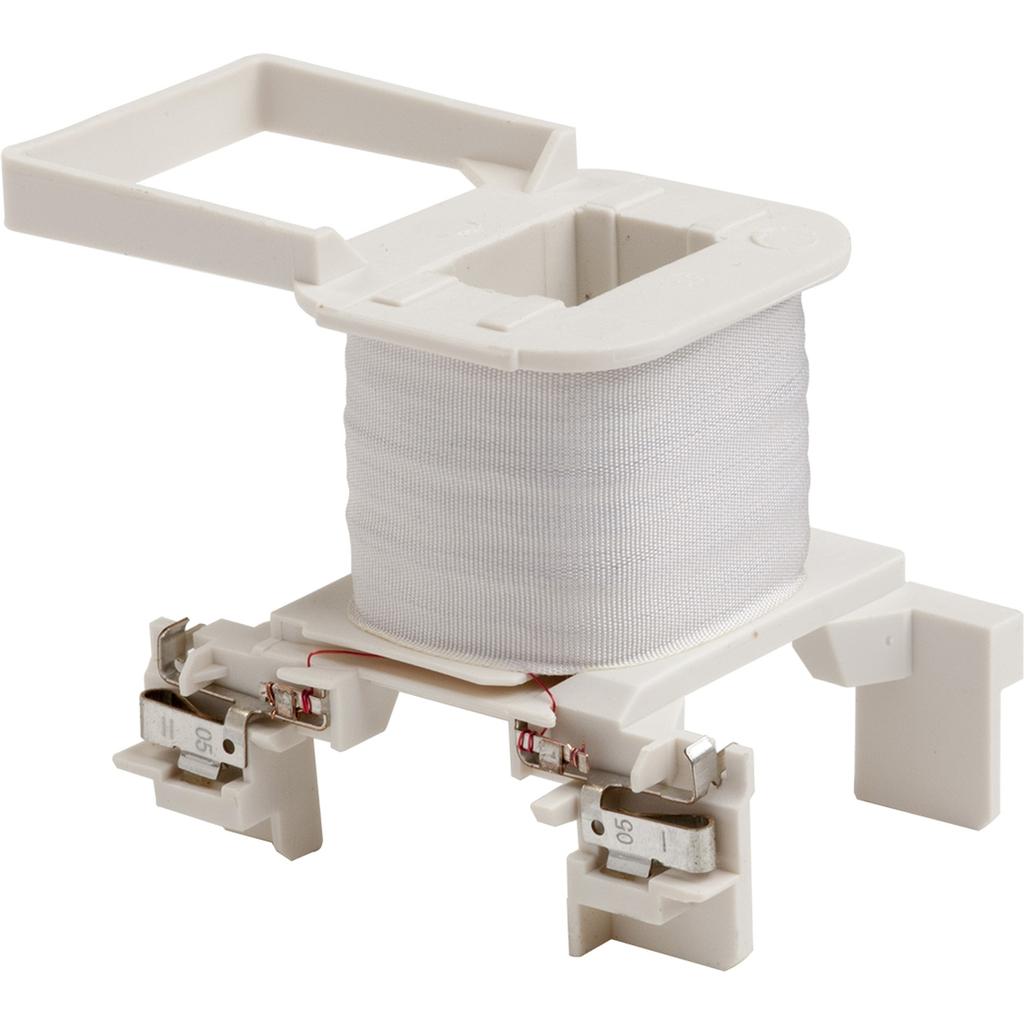

Mayer-DDS-Contactor coil, TeSys Deca, LXD3, 220V AC 50/60Hz for 40…65A contactor-1
  • Country of Origin: France
  • Net Weight: 0.07 kg
  • Warranty Length: 18 mth
  • Weight: 0.07 kg
QTY
  • Features
  • Specifications
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
  • Environment
    • Ambient Air Temperature For Operation : -5-60 °C
    • Net Weight : 0.07 kg
  • Contractual warranty
    • Warranty : 18 months
  • Environmental data
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : Yes
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
    • Take-Back : No
  • Complementary
    • Control Circuit Voltage Limits : drop-out: 0.3...0.6 Uc at 50/60 Hz (at <60 °C) || operational: 0.8...1.1 Uc at 50 Hz (at <60 °C) || operational: 0.85...1.1 Uc at 60 Hz (at <60 °C)
    • Inrush Power In Va : 160-160 VA 60 Hz cos phi 0.75 (at 20 °C) || 160-160 VA 50 Hz cos phi 0.75 (at 20 °C)
    • Coil Technology : without built-in suppressor module
    • Hold-In Power Consumption In Va : 15-15 VA 60 Hz cos phi 0.3 (at 20 °C) || 15-15 VA 50 Hz cos phi 0.3 (at 20 °C)
    • Heat Dissipation : 4-5 W 50/60 Hz
  • Specifications
    • Country of Origin : France
    • Weight : 0.07 kg
    • Average Resistance : 182 Ohm 20 °C
    • [Uc] Control Circuit Voltage : 220 V AC 50/60 Hz
    • Control Circuit Type : AC 50/60 Hz
    • Product Or Component Type : contactor coil
    • Range : TeSys
    • Inductance Of Closed Circuit : 10 H
    • Maximum Operating Rate : 3600 cyc/h 60 °C
    • Mechanical Durability : 6 Mcycles
    • Product Compatibility : LC1D40A...D65A || LC1DT80A || LC1DT60A
    • Device Short Name : LXD3
