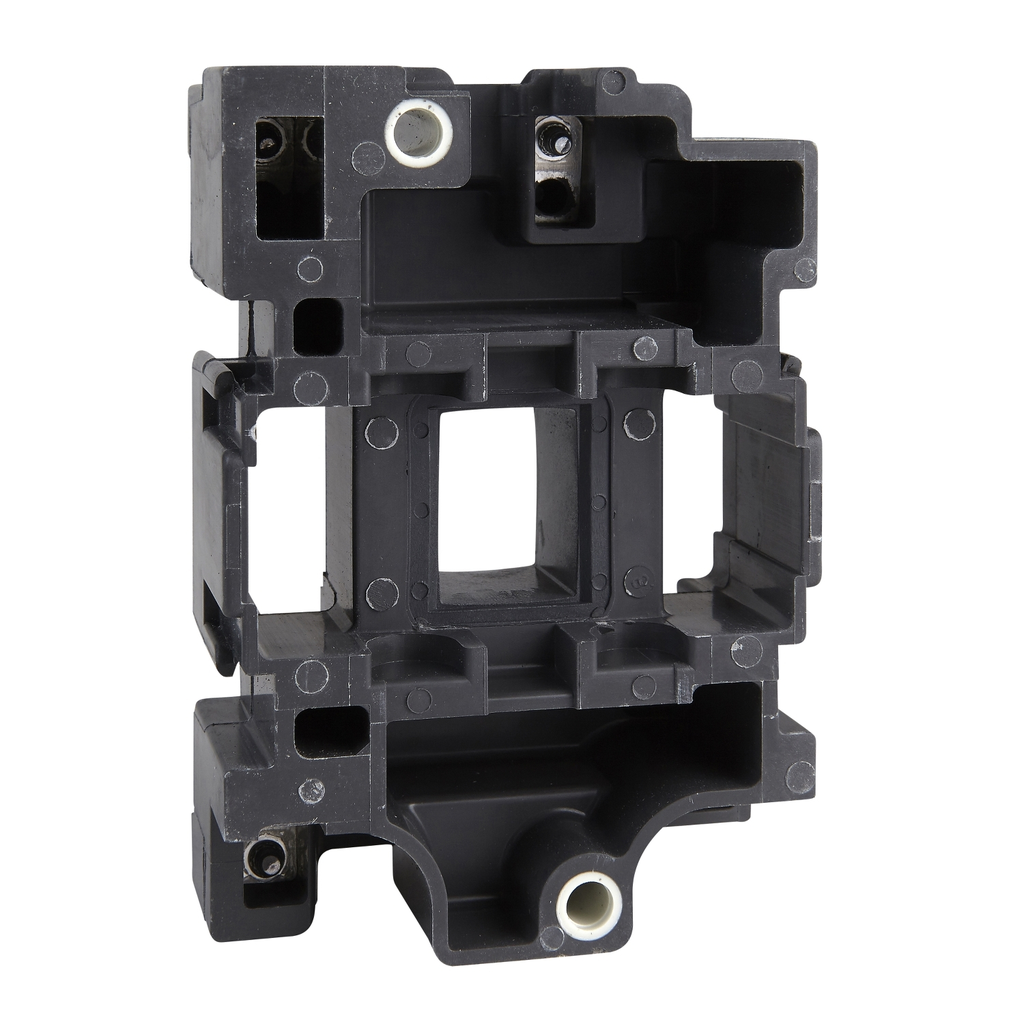

This product is TeSys Deca replacement AC coil 220V 50/60Hz for TeSys Deca contactors. It is applied on 3 and 4-pole contactors LC1D80 to D95. It operates in the voltage limits 0.85-1.1 Uc and environments until 55°C

• Prop 65
• WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov

• Complementary Attributes
• Control Circuit Voltage Limits : drop-out: 0.3...0.6 Uc at 50/60 Hz (at <55 °C), operational: 0.8...1.1 Uc at 50 Hz (at <55 °C), operational: 0.85...1.1 Uc at 60 Hz (at <55 °C)
• Control Circuit Type : AC 50/60 Hz
• Maximum Operating Rate : 3600 cyc/h 60 °C
• UC Control Circuit Voltage : 220 V AC 50/60 Hz
• Important Information Attributes
• Persona Type Ids : EU, LC, OM, OM8, PB, SI
• Persona Type Names : End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Hold In Power Consumption In VA : 26-26 VA 60 Hz cos phi 0.3 (at 20 °C), 26-26 VA 50 Hz cos phi 0.3 (at 20 °C)
• Inrush Power In VA : 245-245 VA 60 Hz cos phi 0.75 (at 20 °C), 245-245 VA 50 Hz cos phi 0.75 (at 20 °C)
• Local Data Status : Publishable
• Local Publishable Date : 2025-02-26
• HTML Description : TeSys D Contactor CoilControl Circuit Voltage: 120V AC 50/60 HzAverage Resistance: 102 Ohm at 20 Deg. C
• Manufacturer : Schneider Electric
• Serviceability : No
• Traceability : No
• Field Service Division : PPIBS
• Legacy WEEE Scope : Out
• Scope Perimeter : At least in Europe
• EOLI Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• ROHS EUR In Scope : No
• ROHS EUR Status : Compliant
• ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : No
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 1 - GSC certified
• Function Option Id : STANDARD
• Function Option : Standard
• Average Resistance : 102 Ohm 20 °C
• Coil Technology : without built-in suppressor module
• Device Short Name : LX1D6
• Energy Efficiency Optimized : False
• Heat Dissipation : 6-10 W 50/60 Hz
• Inductance Of Closed Circuit : 6.7 H
• Package Weight Lbs : 313.000 g
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : contactor coil
• Range : TeSys
• Range Of Product : TeSys Deca
• Returnability : Yes
• Sustainable Packaging : No
• Relationship Type : Compatible relationship
• Pep Code : ENVPEP1102005EN
• Product Kit Identifier : N
• Product Manager : NANNAN YAN
• Environment Attributes Main
• EU ROHS Directive : Compliant​, Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS Exemption Information : Yes
• Take Back : No
• Reach Free SHVC : Yes
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Environmental Disclosure : ENVPEP1102005EN
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Free Of SVHC : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• Pep Code : ENVPEP1102005EN
• General Attributes
• Product Or Component Type : contactor coil
• Range Of Product : TeSys Deca
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
