Contactor coil, TeSys Deca, 208V AC 60Hz for D40A-D80A DT60A-DT80A contactor

D40A TO D65A REPLACE COIL 208

SQDLXD3LE7 LXD3LE7 3389118332744
64.62 / EA
http://schema.org/OutOfStock

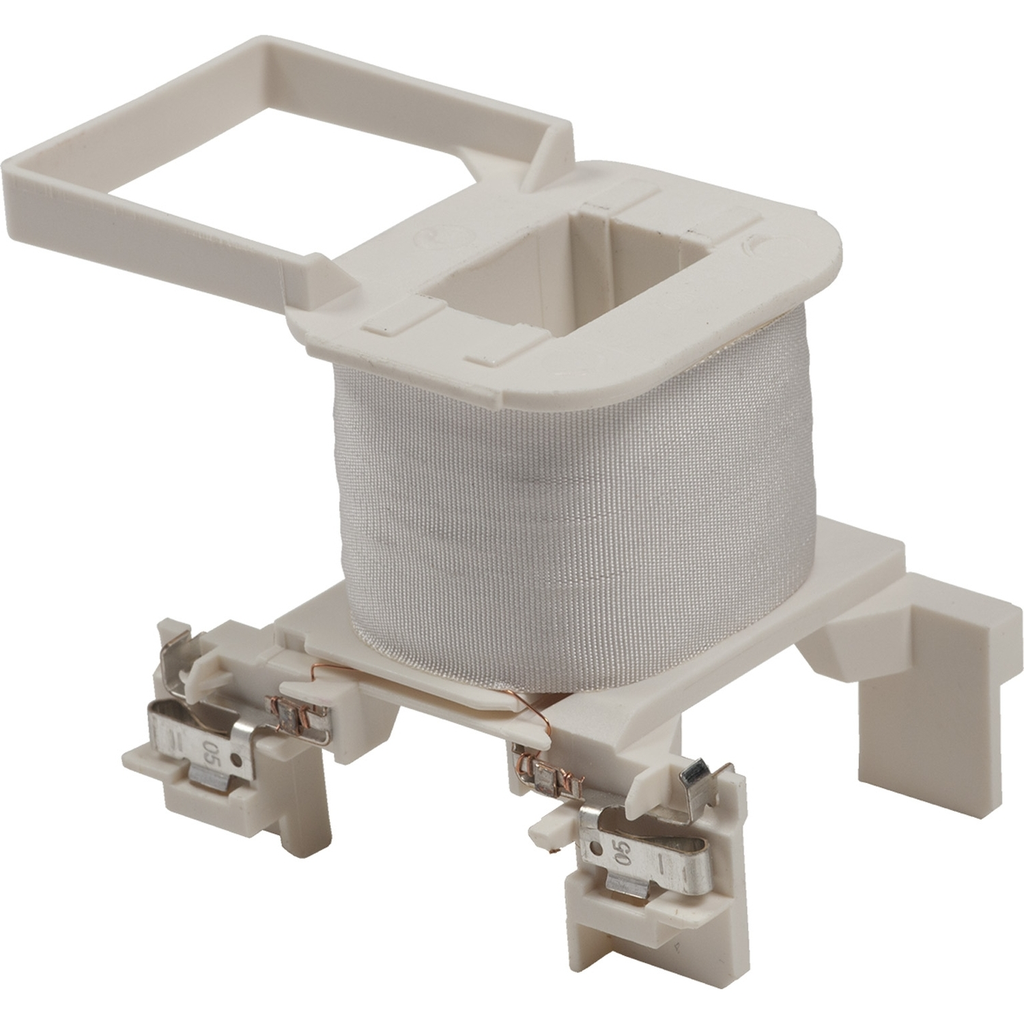

Mayer-DDS-Contactor coil, TeSys Deca, 208V AC 60Hz for D40A-D80A DT60A-DT80A contactor-1
  • Country of Origin: France
  • Warranty Length: 18 mth
This is a contact coil of Tesys Deca contactors. It's multiple certified and sustainability compliant.
QTY
  • Product Description
  • Features
  • Specifications
This is a contact coil of Tesys Deca contactors. It's multiple certified and sustainability compliant.
  • Uc Control Circuit Voltage
    • 208 V AC 60 Hz
  • Heat Dissipation
    • 4-5 W 60 Hz
  • Maximum Operating Rate
    • 3600 cyc/h 60 °C
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
  • Control Circuit Type
    • AC 60 Hz
  • Market Segmentation
    • Commercial
    • Industrial
  • Persona Type Names
    • End User
    • Contractor
    • Original Equipment Manufacturer
    • OEM - Control Panelbuilder
    • Panel Builder
    • System Integrator
  • Persona Type Ids
    • EU
    • LC
    • OM
    • OM8
    • PB
    • SI
  • Average Resistance
    • 105 Ohm 20 °C
  • Control Circuit Voltage Limits
    • drop-out: 0.3...0.6 Uc at 60 Hz (at <60 °C)
    • operational: 0.85...1.1 Uc at 60 Hz (at <60 °C)
    • operational: 0.85...1.1 Uc at
  • Hold In Power Consumption In Va
    • 15-15 VA 60 Hz cos phi 0.3 (at 20 °C)
  • Market Segmentation Id
    • COMMERCIAL
    • INDUSTRIAL
  • Inrush Power In Va
    • 160-160 VA 60 Hz cos phi 0.75 (at 20 °C)
  • Product Compatibility
    • LC1D40A...D80A
    • LC2D40A...D80A
    • LC1DT60A...DT80A
  • Important Information Attributes
    • Local Data Status : Publishable
    • Local Publishable Date : 9/16/2025
    • Html Descr : TeSys D - contactor coil - LXD3 - 208 V AC 50/60 Hz for 40… 65 A contactor
    • Manufacturer : Schneider Electric
    • Serviceability : No
    • Traceability : No
    • Field Service Division : PPIBS
    • Legacy WEEE Scope : Out
    • Scope Perimeter : At least in Europe
    • Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
    • Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
    • ROHS Eur In Scope : No
    • ROHS Eur Status : Compliant
    • ROHS Eur Conformity Date : 2538
    • ROHS Eur Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS Eur Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : No
    • China ROHS Label : 1
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 1 - GSC certified
    • Tier Id : 1
    • Tier : 1
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Coil Technology : without built-in suppressor module
    • Device Short Name : LXD3
    • Inductance Of Closed Circuit : 6.22 H
    • Mechanical Durability : 6 Mcycles
    • Package Weight Lbs : 124.000 g
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : contactor coil
    • Range : TeSys
    • Range Of Product : TeSys Deca
    • Returnability : Yes
    • Sustainable Packaging : Yes
    • Relationshiptype : Compatible relationship
  • General Attributes
    • Product Or Component Type : contactor coil
    • Range Of Product : TeSys Deca
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=61601558&lang=en-us
    • Take Back : No
    • Reach Free Shvc : Yes
    • Recycled Metal Content At Cr Level : 0%
    • China ROHS Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Ambient Air Temperature For Operation : -5-60 °C
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Free Of Svhc : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : France
