CONTACTOR COIL LX1F 70V AC 50/60HZ

CONTACTOR COIL 120V AC ONLY

SQDLX1FK070 LX1FK070 785901710882

535.48 / EA

http://schema.org/OutOfStock

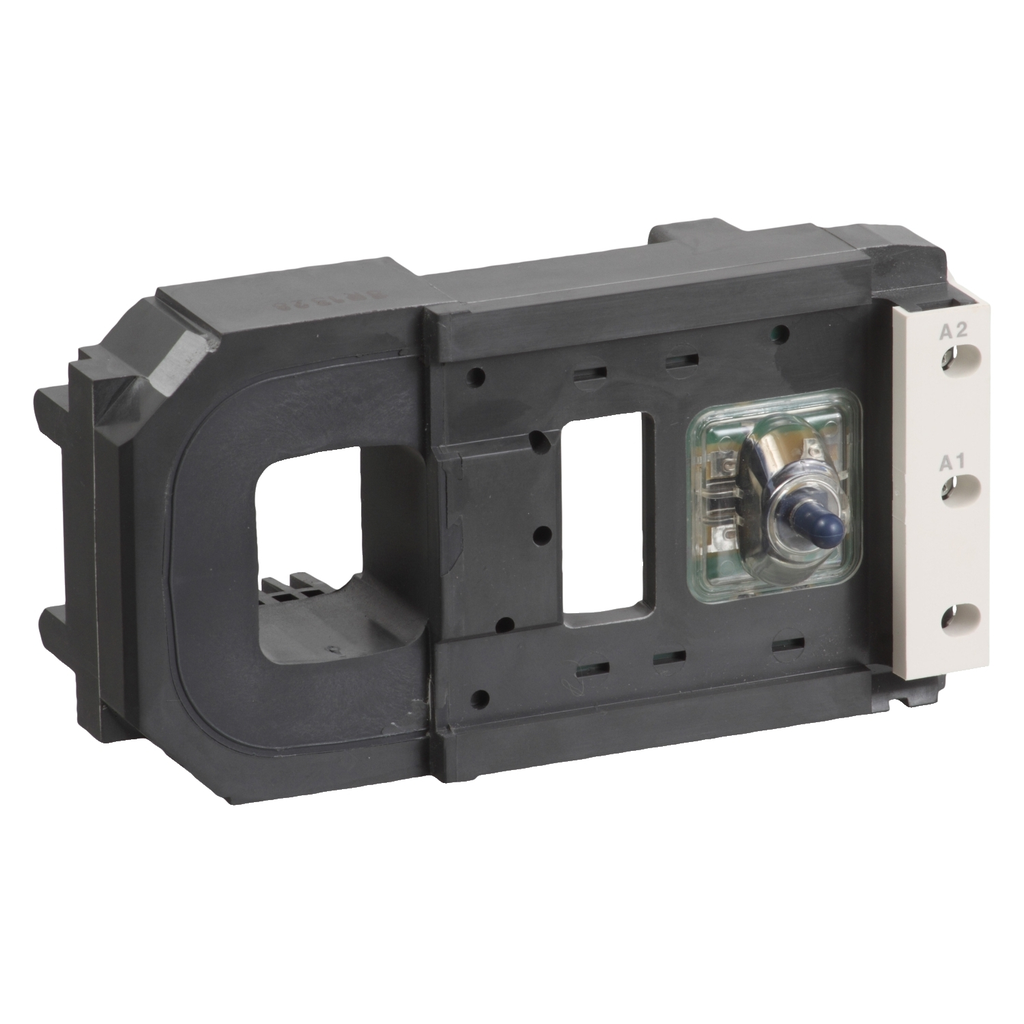

Mayer-DDS-CONTACTOR COIL LX1F 70V AC 50/60HZ-1

Warranty Length: 18 mth

QTY

Specifications

Environment

Ambient Air Temperature For Operation : -5-55 °C

Contractual warranty

Warranty : 18 months

Offer Sustainability

China Rohs Regulation : X
Circularity Profile : ENVEOLI1505009EN
Rohs Exemption Information : Yes
Mercury Free : Yes
Environmental Disclosure : ENVPEP1505009EN
Sustainable Offer Status : Green Premium product
Toxic Heavy Metal Free : Yes
Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
Reach Regulation : Free of Substances of Very High Concern above the threshold
Reach Free Of Svhc : Yes

Complementary

Coil Technology : without built-in suppressor module
Control Circuit Voltage Limits : operational 0.85...1.1 Uc 50/60 Hz 55 °C) || drop-out 0.3...0.5 Uc 50/60 Hz 55 °C)

Specifications

Average Resistance : 2.3 Ohm inrush 20 °C || 66.4 Ohm holding 20 °C
[Uc] Control Circuit Voltage : 70 V AC 50/60 Hz
Maximum Operating Rate : 2400 cyc/h 55 °C
Control Circuit Type : AC 50/60 Hz
Range Compatibility : TeSys TeSys F LC1F contactor
Operating Time : 100...170 ms opening || 40...75 ms closing
Product Or Component Type : contactor coil
Product Compatibility : LC1F500
Device Short Name : LX1FK
Mechanical Durability : 10 Mcycles
Range : TeSys
