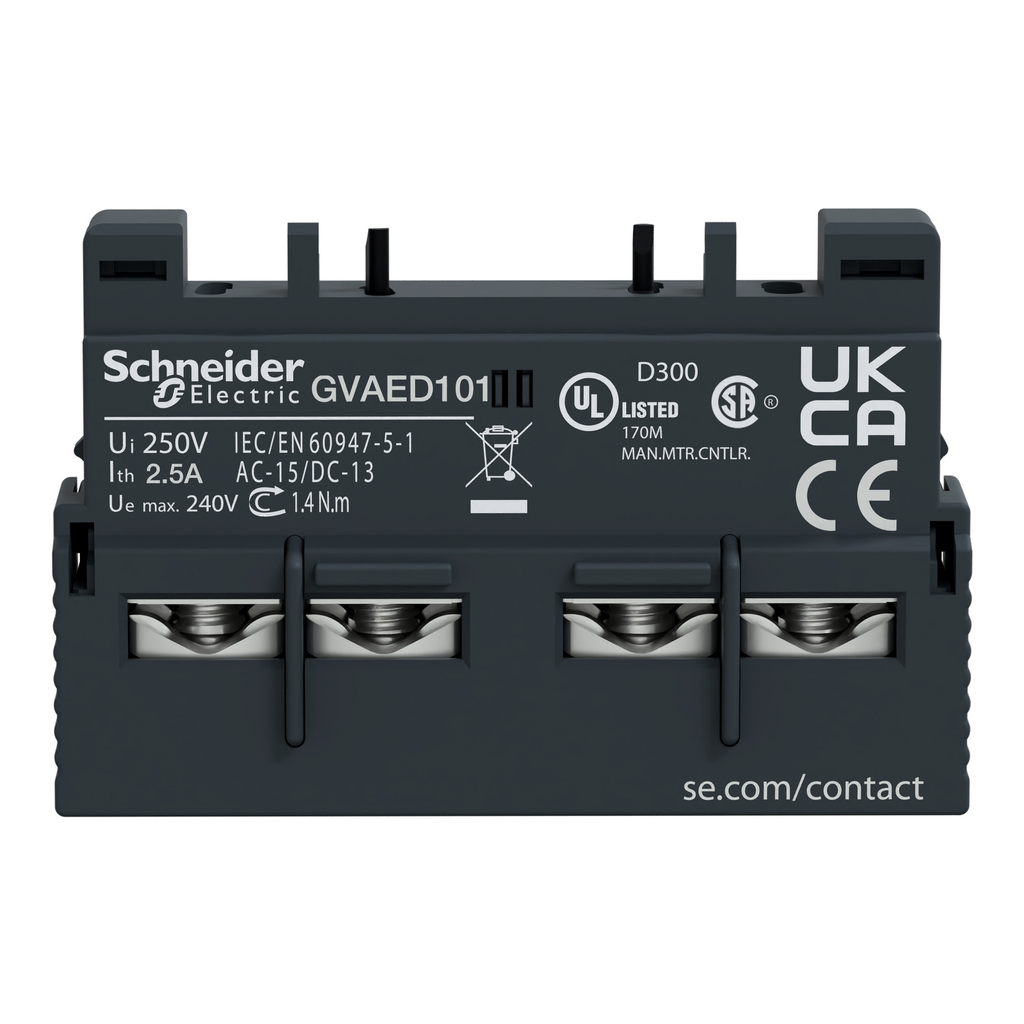

TeSys Deca - auxiliary contact block - 2 NO

MANUAL STARTER AUX CONTACT 575

SQDGVAED101 GVAED101 3389119405478
55.40 / EA
http://schema.org/OutOfStock
Mayer-DDS-TeSys Deca - auxiliary contact block - 2 NO-2
  • Country of Origin: Czechia
  • Depth: 29 mm
  • Height: 11 mm
  • Net Weight: 0.05 kg
  • Warranty Length: 18 mth
  • Weight: 0.05 kg
  • Width: 45 mm
TeSys Deca auxiliary contact block, for contactors LC1D, LC1F and control relays CAD. It provides 2NO contacts rated up to 10A 690V AC, On-delay setting range 10-180s Clip-on front mounting, it procures high reliability and durability. Multi standards certified (IEC, UL, CSA, CCC, EAC), Sustainability compliant.
QTY
  • Product Description
  • Features
  • Specifications
TeSys Deca auxiliary contact block, for contactors LC1D, LC1F and control relays CAD. It provides 2NO contacts rated up to 10A 690V AC, On-delay setting range 10-180s Clip-on front mounting, it procures high reliability and durability. Multi standards certified (IEC, UL, CSA, CCC, EAC), Sustainability compliant.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Environment
    • Product Certifications : UKCA
    • Environmental Characteristic : normal environment
  • Contractual warranty
    • Warranty : 18 months
  • Environmental data
    • Packaging Made With Recycled Cardboard : Yes
    • Environmental Disclosure : ENVPEP2207006
    • Packaging Without Single Use Plastic : No
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Circularity Profile : ENVEOLI2207006
    • Take-Back : No
    • Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 0.17329788856900308
  • Complementary
    • Minimum Switching Current : 5 mA
    • Height : 11 mm
    • [Ith] Conventional Free Air Thermal Current : 2.5 A
    • [Ue] Rated Operational Voltage : 24...240 V AC || 24...60 V DC
    • Protection Type : GB2CB... circuit breaker || gG fuse 10 A
    • Net Weight : 0.05 kg
    • [Ui] Rated Insulation Voltage : 600 V UL 508 || 690 V IEC 60947-1 || 600 V CSA C22.2 No 14
    • Minimum Switching Voltage : 17 V
    • Tightening Torque : 1.4 N.m screw clamp terminals
    • Rated Operational Power In Va : 300 VA 48-48 V AC-15 100000 cycles || 400 VA 690-690 V AC-15 100000 cycles || 500 VA 110-127 V AC-15 100000 cycles || 500 VA 500-500 V AC-15 100000 cycles || 650 VA 440-440 V AC-15 100000 cycles || 720 VA 230-240 V AC-15 100000 cycles || 850 VA 380-415 V AC-15 100000 cycles
    • Mechanical Durability : 100000 cycles
    • Width : 45 mm
    • Depth : 29 mm
    • Rated Operational Power In W : 120 W 240 V DC-13 100000 cycles || 140 W 110 V DC-13 100000 cycles || 140 W 24 V DC-13 100000 cycles || 180 W 60 V DC-13 100000 cycles || 240 W 48 V DC-13 100000 cycles
  • Specifications
    • Country of Origin : Czechia
    • Width : 45 mm
    • Height : 11 mm
    • Weight : 0.05 kg
    • Product Or Component Type : auxiliary contact block
    • Range : TeSys || TeSys Deca
    • Mounting Location : front side
    • Pole Contact Composition : 2 NO
    • Quantity Per Set : set of 1
    • Product Compatibility : GV3P || GV3L
    • Auxiliary Contacts Operation : fault signal 1 NO
    • Device Short Name : GVAED
