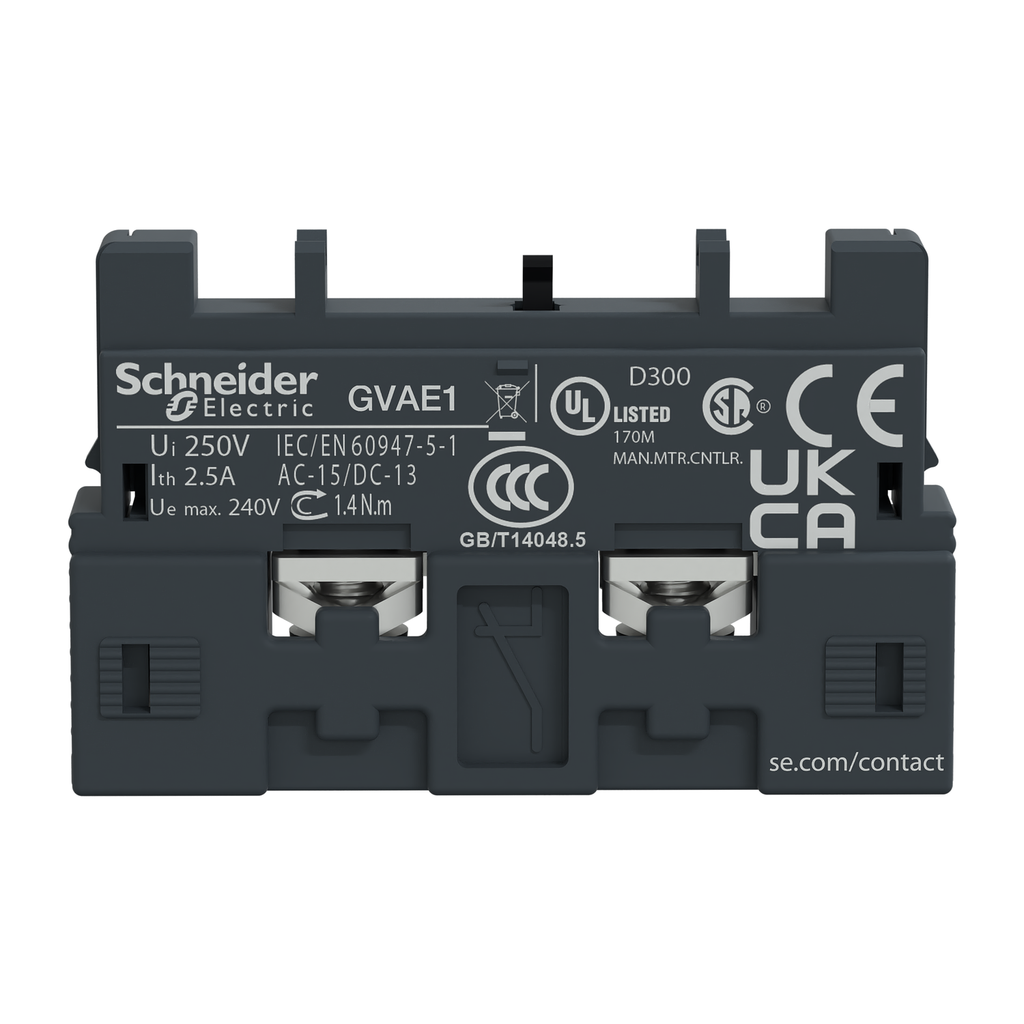

TeSys GV auxiliary contact block, for motor circuit breakers GV2 and GV3. 1NO or 1NC instantaneous auxiliary contacts depending on the mounting orientation of the block. Rated for operation up to 2A/240V AC and 1A/60V DC. To be installed on front side of the circuit breaker, connection by screw clamp terminals. Sold in lots of 10 units. Multi standards certified (IEC, UL, CSA, CCC, EAC).

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Physical Attributes
• Color : dark grey
• Complementary Attributes
• Rated Operational Power In Va : 120 VA 110-120 V AC-15 100000 cycles, 120 VA 230-240 V AC-15 100000 cycles48 VA 24-24 V AC-15 100000 cycles60 VA 48-48 V AC-15 100000 cycles
• Minimum Switching Current : 5 mA
• Minimum Switching Voltage : 17 V
• Rated Operational Power In W : 15 W 48 V DC-13 100000 cycles24 W 24 V DC-13 100000 cycles9 W 60 V DC-13 100000 cycles
• Important Information Attributes
• Persona Type Ids : EU, LC, OM, OM8, PB, SC
• Persona Type Names : End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Range : TeSys, TeSys Deca
• Certificate Agency : CB Scheme, CE, UKCA, CCC, cULus, EAC
• [Ui] Rated Insulation Voltage : 300 V UL 508, 300 V CSA C22.2 No 14250 V IEC 60947-1
• Carbon Footprint Of The Distribution Phase [A4] : 0.004322347434440083, 0 kg CO2 eq.
• Carbon Footprint Of The End-of-life Phase [C1 To C4] : 0 kg CO2 eq., 0.03223192587402384
• Carbon Footprint Of The Installation Phase [A5] : 0.0011356602129653233, 0 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase [A1 To A3] : 0.1 kg CO2 eq., 0.0897429418044167
• Carbon Footprint Of The Use Phase [B2 B3 B4 B6] : 0 kg CO2 eq., 0.0025283999999999997
• Local Data Status : Publishable
• Local Publishable Date : 2026-07-07
• Return Indicator : Y
• Stocking Flag : N
• Stock Policy : 2
• Serviceability : No
• Traceability : No
• Field Service Division : PPIBS
• Weee Scope : In
• Weee Product Category : 5
• Scope Perimeter : At least in Europe
• Eoli Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI2207006
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• Rohs Eur In Scope : Yes
• Rohs Eur Status : Compliant
• Rohs Eur Conformity Date : 1936
• Rohs Eur Full Compliance Status : Compliant
• China Rohs In Scope : No
• China Rohs Label : 1
• With Recycled Cardboard : Yes
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Tier Id : 1
• Tier : 1
• Function Option Id : STANDARD
• Function Option : Standard
• Product Kit Identifier : N
• Compatibility Code : GVAE
• Device Short Name : GVAE
• Environmental Characteristic : normal environment
• Mechanical Durability : 100000 cycles
• Mounting Location : front side
• Pole Contact Composition : 1 NO/NC
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : auxiliary contact block
• Protection Type : gG fuse 10 AGB2CB06 circuit breaker 10 A maximum
• Quantity Per Set : set of 10
• Returnability : Yes
• Software Version : v5.9.4
• Sustainable Packaging : Yes
• Tightening Torque : 1.7-1.7 N.m screw clamp terminals
• Total Lifecycle Carbon Footprint : 0.1 kg CO2 eq.
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Pole Contact Comp : 1 NO/NC
• Pep Code : ENVPEP2207006EN
• Database Version : 2022-01
• Pep Verification Date : 2025-06-17
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• Data Source : extrapolated product
• Functional-unit Description : To add instantaneous auxiliary contact blocks in front face on TeSys GV Circuit breakers as NO and/or NC contacts for 20 years.
• Functional-unit Quantity : 1
• Functional-unit Unit : unit
• Reference Lifetime In Y : 20
• Energy Model - Manufacturing [A1-a3] : Electricity Mix; Production mix; Low voltage; UE-27
• Energy Model - Installation [A5] : Electricity Mix; Production mix; Low voltage; FR
• Energy Model - Use [B6] : Electricity Mix; Production mix; Low voltage; FR
• Energy Model - End Of Life [C1-c4] : Electricity Mix; Production mix; Low voltage; FR
• Recyclability Potential In % : 42
• Height Nominal : 11 mm
• Width Nominal : 45 mm
• [Ith] Conventional Free Air Thermal Current : 2.5 A
• [Ue] Rated Operational Voltage : 24...240 V AC24...60 V DC
• Nbr. Of Units In Pkg. : 1
• Package Weight(Lbs) : 12 g
• Take-back : No
• Warranty (In Months) : 18
• Customs Code : 8536509065
• Environment Attributes Main
• China Rohs Regulation : Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
• Product Compatibility : GV2P, GV2L, GV2ME, GV2LE, GV2RT, GV2LM, GV3P, GV3L
• Take Back : No
• Reach Free Shvc : Yes
• Recycled Metal Content At Cr Level : 0 %
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Carbon Footprint : 0.12996127532584595
• Circularity Profile : ENVEOLI2207006
• Environmental Disclosure : ENVPEP2207006EN
• Eu Rohs Directive : Compliant
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : No
• Reach Free Of Svhc : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2207006EN
• Pep Verification Date : 2025-06-17
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Product Or Component Type : auxiliary contact block
• ETIM
• ETIM 8 : EC000041
• ETIM 9 : EC000041
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : Brazil, Costa Rica, Czechia, France, United Kingdom, United States
• Depth : 29 mm
