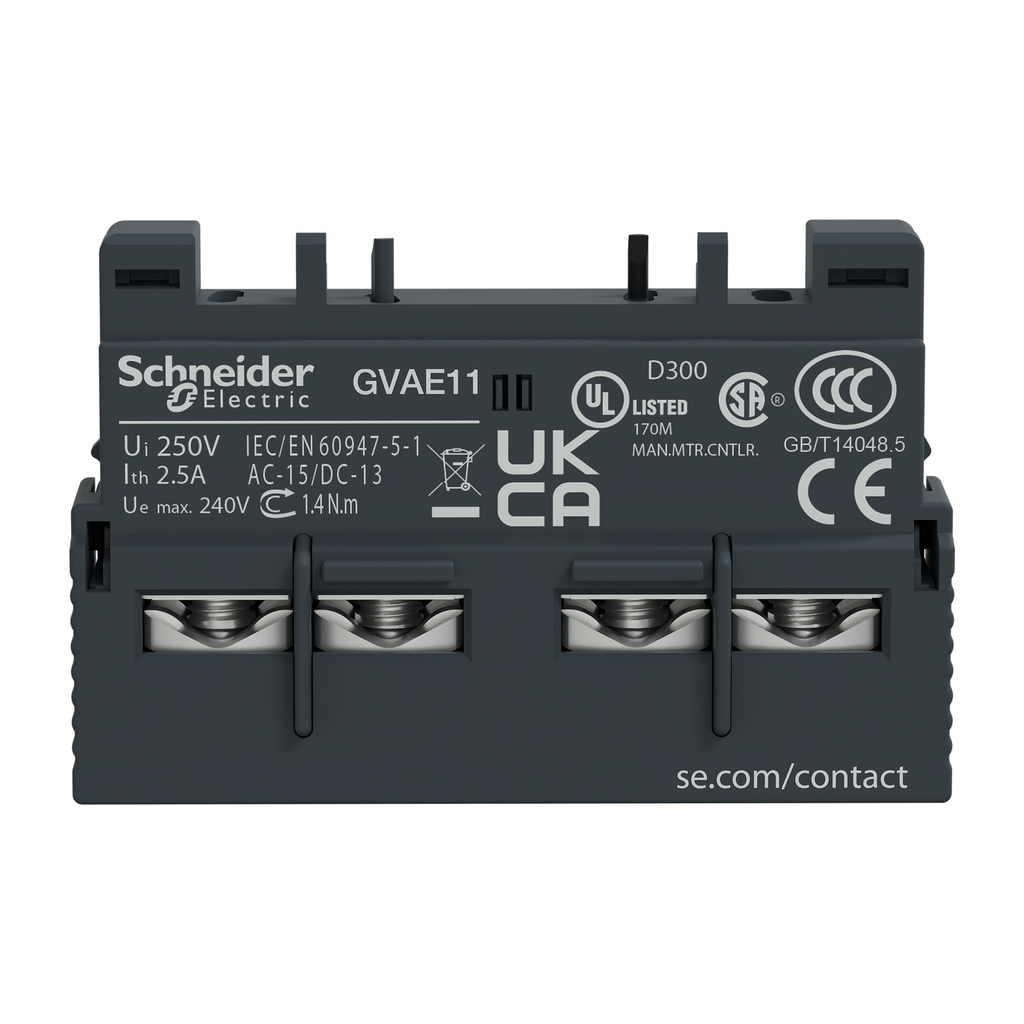

TeSys GV auxiliary contact block, for motor circuit breakers GV2 and GV3. 1NO+1NC instantaneous auxiliary contacts. Rated for operation up to 2A/240V AC and 1A/60V DC. To be installed on front side of the circuit breaker, connection by screw clamp terminals. Sold in lots of 10 units. Multi standards certified (IEC, UL, CSA, CCC, EAC).

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Complementary Attributes
• Rated Operational Power In VA : 120 VA 110-120 V AC-15 100000 cycles, 120 VA 230-240 V AC-15 100000 cycles, 48 VA 24-24 V AC-15 100000 cycles, 60 VA 48-48 V AC-15 100000 cycles
• Rated Operational Power In W : 15 W 48 V DC-13 100000 cycles, 24 W 24 V DC-13 100000 cycles, 9 W 60 V DC-13 100000 cycles
• UE Rated Operational Voltage : 24...240 V AC, 24...60 V DC
• UI Rated Insulation Voltage : 300 V UL 508, 300 V CSA C22.2 No 14, 250 V IEC 60947-1
• Minimum Switching Current : 5 mA
• Minimum Switching Voltage : 17 V
• Important Information Attributes
• Persona Type Ids : EU, LC, OM, OM8, PB, SC
• Persona Type Names : End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Protection Type : gG fuse 10 A, GB2CB06 circuit breaker 10 A
• Range : TeSys, TeSys Deca
• Carbon Footprint Of The Distribution Phase A4 : 0.0057631299125867775, 0 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 0 kg CO2 eq., 0.042975901165365114
• Carbon Footprint Of The Installation Phase A5 : 0.0015142136172870977, 0 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 0.1 kg CO2 eq., 0.11965725573922227
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 0 kg CO2 eq., 0.0025283999999999997
• Local Data Status : Publishable
• Local Publishable Date : 2025-10-15
• Manufacturer : Schneider Electric
• Serviceability : No
• Traceability : No
• Field Service Division : PPIBS
• Legacy WEEE Scope : In
• Scope Perimeter : At least in Europe
• EOLI Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI2207006
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• ROHS EUR In Scope : Yes
• ROHS EUR Status : Compliant
• ROHS EUR Full Compliance Status : Compliant
• ROHS EUR Full Compliance Status Id : COMPLIANT
• China ROHS In Scope : No
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : Yes
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 1 - GSC certified
• Function Option Id : STANDARD
• Function Option : Standard
• Compatibility Code : GVAE
• Device Short Name : GVAE
• Package Weight Lbs : 17.000 g
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : auxiliary contact block
• Returnability : Yes
• Sustainable Packaging : Yes
• Total Lifecycle Carbon Footprint : 0.2 kg CO2 eq.
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• ITH Conventional Free Air Thermal Current : 2.5 A
• Relationship Type : Compatible relationship
• Pep Code : ENVPEP2207006EN
• Pep Verification Date : 2025-06-17
• PCR Version : PEP-PCR-ed4-2021 09 06
• PSR Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• Functional Unit Description : To add instantaneous auxiliary contact blocks in front face on TeSys GV Circuit breakers as NO and/or NC contacts for 20 years.
• Functional Unit Unit : unit
• Product Kit Identifier : N
• Product Manager : LIHUA CHEN
• Environment Attributes Main
• EU ROHS Directive : Compliant​, Compliant
• ROHS Exemption Information : Yes
• Take Back : No
• Reach Free SHVC : Yes
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Carbon Footprint : 0.17243890043446125
• Circularity Profile : ENVEOLI2207006
• Environmental Disclosure : ENVPEP2207006EN
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : No
• Reach Free Of SVHC : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2207006EN
• Pep Verification Date : 2025-06-17
• PCR Version : PEP-PCR-ed4-2021 09 06
• PSR Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Product Or Component Type : auxiliary contact block
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
