TeSys GV auxiliary contact block, for motor circuit breakers GV2 and GV3. 1NO+1NC instantaneous auxiliary contacts. Rated for operation up to 6A/690V AC and 6A/240V DC. To be installed on left-hand side of the circuit breaker (2 blocks mounting possible)

• Prop 65
• WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
• Carbon Footprint Of The Installation Phase A5
• 0.0037855340432177437
• 0 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4
• 0.1 kg CO2 eq.
• 0.10743975291341279
• Ue Rated Operational Voltage
• 48...690 V AC
• 24...240 V DC
• Ui Rated Insulation Voltage
• 600 V UL 508
• 690 V IEC 60947-1
• 600 V CSA C22.2 No 14
• Rated Operational Power In Va
• 300 VA 48-48 V AC-15 100000 cycles
• 414 VA 690-690 V AC-15 100000 cycles
• 414
• Carbon Footprint Of The Manufacturing Phase A1 To A3
• 0.3 kg CO2 eq.
• 0.2991431393480557
• Protection Type
• GB2CB... circuit breaker
• gG fuse 10 A
• Rated Operational Power In W
• 120 W 240 V DC-13 100000 cycles
• 140 W 110 V DC-13 100000 cycles
• 140 W 110 V DC-13 100000 cycle
• Market Segmentation
• Commercial
• Industrial
• Persona Type Names
• End User
• Contractor
• Original Equipment Manufacturer
• OEM - Control Panelbuilder
• Panel Builder
• Electrician
• Carbon Footprint Of The Use Phase B2 B3 B4 B6
• 0 kg CO2 eq.
• 0.0025283999999999997
• Persona Type Ids
• EU
• LC
• OM
• OM8
• PB
• SC
• Carbon Footprint Of The Distribution Phase A4
• 0.014407824781466943
• 0 kg CO2 eq.
• Tightening Torque
• 1.4 N.m screw clamp terminals
• Market Segmentation Id
• COMMERCIAL
• INDUSTRIAL
• Product Compatibility
• GV2ME
• GV2RT
• GV2L
• GV3P
• GV3L
• GV2LE
• GV2P
• Range
• TeSys
• TeSys Deca

• Physical Attributes
• Color : dark grey
• Conformance Attributes
• Product Certifications : UKCA
• Complementary Attributes
• Minimum Switching Current : 5 mA
• Minimum Switching Voltage : 17 V
• Important Information Attributes
• Country Id : US
• Local Data Status : Publishable
• Local Publishable Date : 2025-08-13
• ETIM 10 : EC000041
• Manufacturer : Schneider Electric
• Serviceability : No
• Traceability : No
• Field Service Division : PPIBS
• Manufacturing Carbon Footprint : 0.299143139348056
• Distribution Carbon Footprint : 1.44078247814669e-02
• Installation Carbon Footprint : 3.78553404321774e-03
• Use Carbon Footprint : 0.0025284
• End Of Life Carbon Footprint : 0.107439752913413
• Legacy WEEE Scope : In
• WEEE Product Category : 5
• Scope Perimeter : At least in Europe
• EOLI Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI2207006
• ROHS Eur In Scope : Yes
• ROHS Eur Status : Compliant
• ROHS Eur Conformity Date : 1826
• ROHS Eur Full Compliance Status : Compliant
• ROHS Eur Full Compliance Status Id : COMPLIANT
• China ROHS In Scope : No
• China ROHS Label : 1
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : Yes
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 1 - GSC certified
• Tier Id : 1
• Tier : 1
• Function Option Id : STANDARD
• Function Option : Standard
• Compatibility Code : GVAN
• Device Short Name : GVAN
• Environmental Characteristic : normal environment
• Mechanical Durability : 100000 cycles
• Mounting Location : left side
• Package Weight Lbs : 42.000 g
• Pole Contact Composition : 1 NO + 1 NC
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : auxiliary contact block
• Returnability : Yes
• Sustainable Packaging : Yes
• Total Lifecycle Carbon Footprint : 0.4 kg CO2 eq.
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Ith Conventional Free Air Thermal Current : 6 A
• Carbon Footprint Kg Co2 Eq Total Life Cycle : 0.4273046510861532
• Relationshiptype : Compatible relationship
• General Attributes
• Product Or Component Type : auxiliary contact block
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=607980&lang=en-us
• Take Back : No
• Reach Free Shvc : Yes
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Carbon Footprint : 0.427304651086153
• Circularity Profile : ENVEOLI2207006
• Environmental Disclosure : ENVPEP2207006
• Eu Rohs Directive : Compliant
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : No
• Reach Free Of Svhc : Yes
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : Czechia

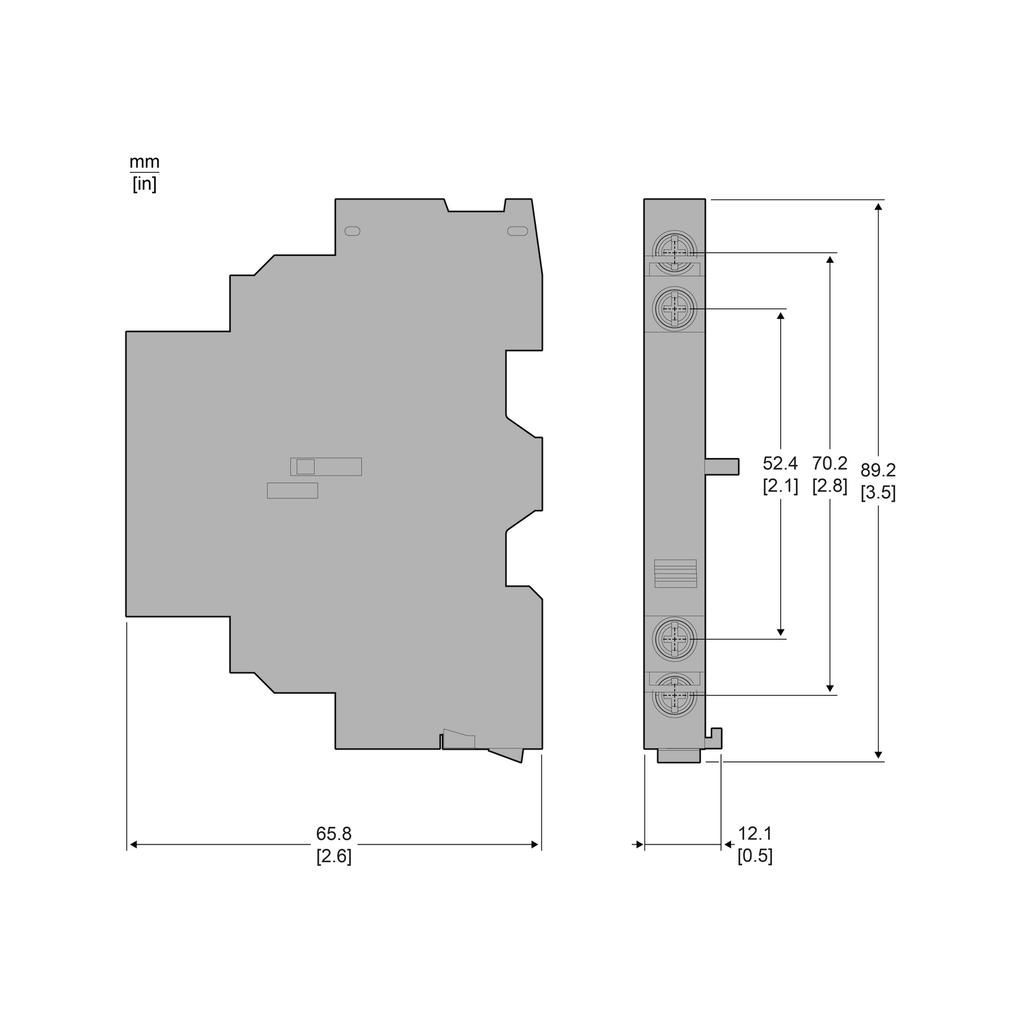

• Height : 3.5 in
• Width : 0.37 in
• Depth : 2.6 in
