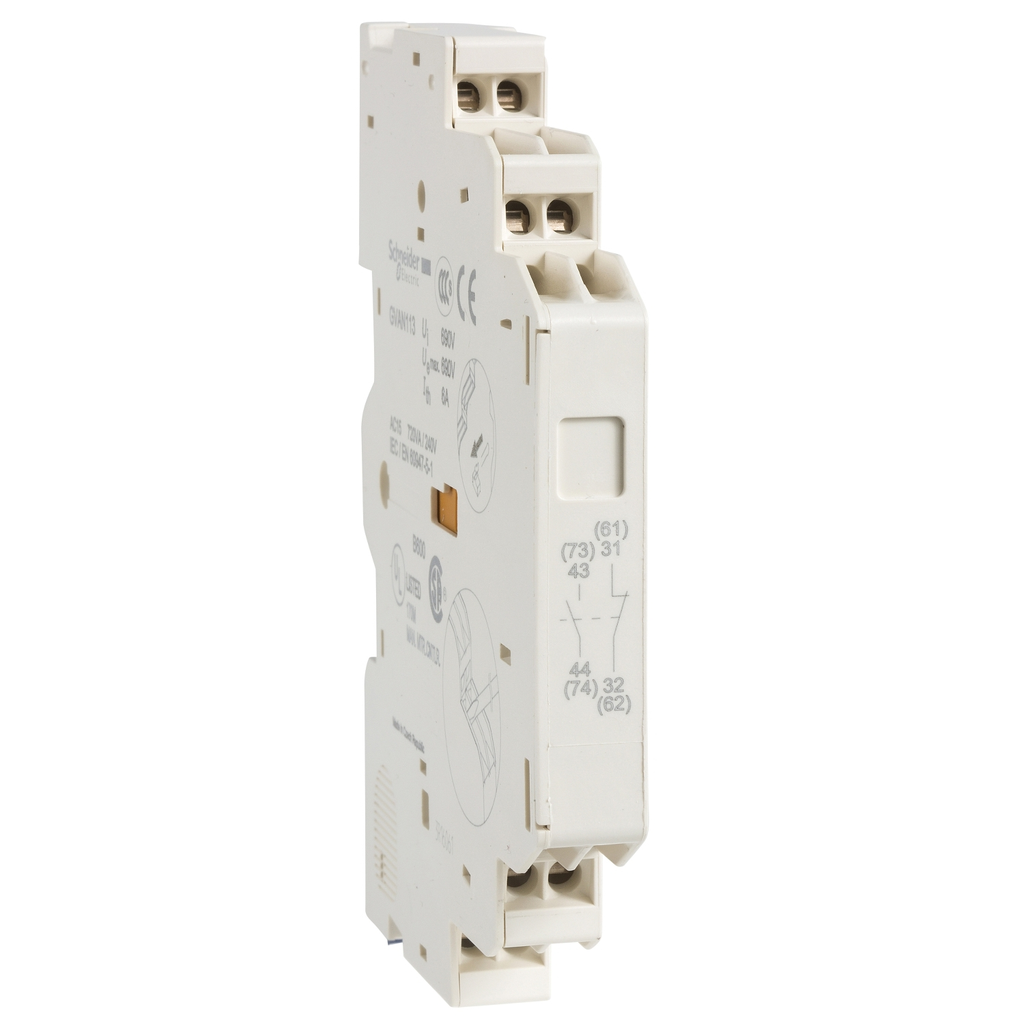

TeSys GV auxiliary contact block, for motor circuit breakers GV2 and GV3. 1NO+1NC instantaneous auxiliary contacts. Rated for operation up to 6A/690V AC and 6A/240V DC. To be installed on left-hand side of the circuit breaker (2 blocks mounting possible), connection by spring terminals. Multi standards certified (IEC, UL, CSA, CCC, EAC).

• Prop 65
• WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov

• Physical Attributes
• Color : dark grey
• Complementary Attributes
• Rated Operational Power In Va : 300 VA 48-48 V AC-15 100000 cycles, 414 VA 690-690 V AC-15 100000 cycles, 500 VA 110-127 V AC-15 100000 cycles, 500 VA 500-500 V AC-15 100000 cycles, 650 VA 440-440 V AC-15 100000 cycles, 720 VA 230-240 V AC-15 100000 cycles, 850 VA 380-415 V AC-15 100000 cycles
• Rated Operational Power In W : 120 W 240 V DC-13 100000 cycles, 140 W 110 V DC-13 100000 cycles, 140 W 24 V DC-13 100000 cycles, 180 W 60 V DC-13 100000 cycles, 240 W 48 V DC-13 100000 cycles
• Ue Rated Operational Voltage : 48...690 V AC, 24...240 V DC
• Ui Rated Insulation Voltage : 600 V UL 508, 690 V IEC 60947-1, 600 V CSA C22.2 No 14
• Minimum Switching Current : 5 mA
• Minimum Switching Voltage : 17 V
• Important Information Attributes
• Persona Type Ids : EU, LC, OM, OM8, PB, SC
• Persona Type Names : End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Environmental Characteristic : normal environment
• Product Or Component Type : auxiliary contact block
• Protection Type : GB2CB... circuit breaker, gG fuse 10 A
• Range : TeSys, TeSys Deca
• Carbon Footprint Of The Distribution Phase A4 : 0.014407824781466943, 0 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.1 kg CO2 eq., 0.10743975291341279
• Carbon Footprint Of The Installation Phase A5 : 0.0037855340432177437, 0 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 0.3 kg CO2 eq., 0.2991431393480557
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 0 kg CO2 eq., 0.0025283999999999997
• Local Data Status : Publishable
• Local Publishable Date : 2026-04-12
• Return Indicator : Y
• Stocking Flag : N
• Stock Policy : 2
• Serviceability : No
• Traceability : No
• Field Service Division : PPIBS
• Weee Scope : In
• Weee Product Category : 5
• Scope Perimeter : At least in Europe
• Eoli Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI2207006
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• Rohs Eur In Scope : Yes
• Rohs Eur Status : Compliant
• Rohs Eur Conformity Date : 1826
• Rohs Eur Full Compliance Status : Compliant
• China Rohs In Scope : No
• China Rohs Label : 1
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Tier Id : 1
• Tier : 1
• Function Option Id : STANDARD
• Function Option : Standard
• Product Kit Identifier : N
• Compatibility Code : GVAN
• Device Short Name : GVAN
• Mechanical Durability : 100000 cycles
• Mounting Location : left side
• Pole Contact Composition : 1 NO + 1 NC
• Product Availability : Stock - Normally stocked in distribution facility
• Returnability : Yes
• Software Version : v5.9.4
• Sustainable Packaging : Yes
• Total Lifecycle Carbon Footprint : 0.4 kg CO2 eq.
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Ith Conventional Free Air Thermal Current : 6 A
• Warranty In Months : 18
• Pole Contact Comp : 1 NO + 1 NC
• Pep Code : ENVPEP2207006EN
• Database Version : 2022-01
• Pep Verification Date : 2025-06-17
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• Data Source : extrapolated product
• Functional-unit Description : To add instantaneous auxiliary contact blocks in front face on TeSys GV Circuit breakers as NO and/or NC contacts for 20 years.
• Functional-unit Quantity : 1
• Functional-unit Unit : unit
• Reference Lifetime, In Y : 20
• Energy Model - Manufacturing [A1-a3] : Electricity Mix; Production mix; Low voltage; UE-27
• Energy Model - Installation [A5] : Electricity Mix; Production mix; Low voltage; FR
• Energy Model - Use [B6] : Electricity Mix; Production mix; Low voltage; FR
• Energy Model - End Of Life [C1-c4] : Electricity Mix; Production mix; Low voltage; FR
• Recyclability Potential, In % : 42
• Offer Owner Code : 190788
• Pn : 1
• Height Nominal : 89 mm
• Width Nominal : 9.3 mm
• Certificate Agency : UKCA
• Environment Attributes Main
• China Rohs Regulation : Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
• Product Compatibility : GV3P, GV2RT, GV2P, GV3L, GV2ME, GV2L, GV2LE
• Take Back : No
• Reach Free Shvc : Yes
• Recycled Metal Content At Cr Level : 0 %
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Carbon Footprint : 0.4273046510861532
• Circularity Profile : ENVEOLI2207006
• Environmental Disclosure : ENVPEP2207006EN
• Eu Rohs Directive : Compliant
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Free Of Svhc : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2207006EN
• Pep Verification Date : 2025-06-17
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Product Or Component Type : auxiliary contact block
• ETIM
• ETIM 8 : EC000041
• ETIM 9 : EC000041
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : Brazil, Czechia, France
• Depth : 66 mm
