TeSys GV auxiliary contact block, for motor circuit breakers GV2 and GV3. 1NC fault signaling contact + 1NC instantaneous auxiliary contact. Instantaneous auxiliary contact rated for operation up to 6A/690V AC and 6A/240V DC. Fault signaling contact rated for operation up to 2A/240V AC and 1A/60V DC. To be installed on left-hand side of the circuit breaker (1 block mounting maximum), connection by screw clamp terminals. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).

• Environment
• Product Certifications : UKCA
• Environmental Characteristic : normal environment
• Contractual warranty
• Warranty : 18 months
• Offer Sustainability
• Rohs Exemption Information : Yes
• Mercury Free : Yes
• Environmental Disclosure : ENVPEP2207006
• Sustainable Offer Status : Green Premium product
• Toxic Heavy Metal Free : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• California Proposition 65 : WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
• Reach Free Of Svhc : Yes
• Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• China Rohs Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
• Circularity Profile : ENVEOLI2207006
• Eu Rohs Directive : Compliant
• Complementary
• Minimum Switching Current : 5 mA

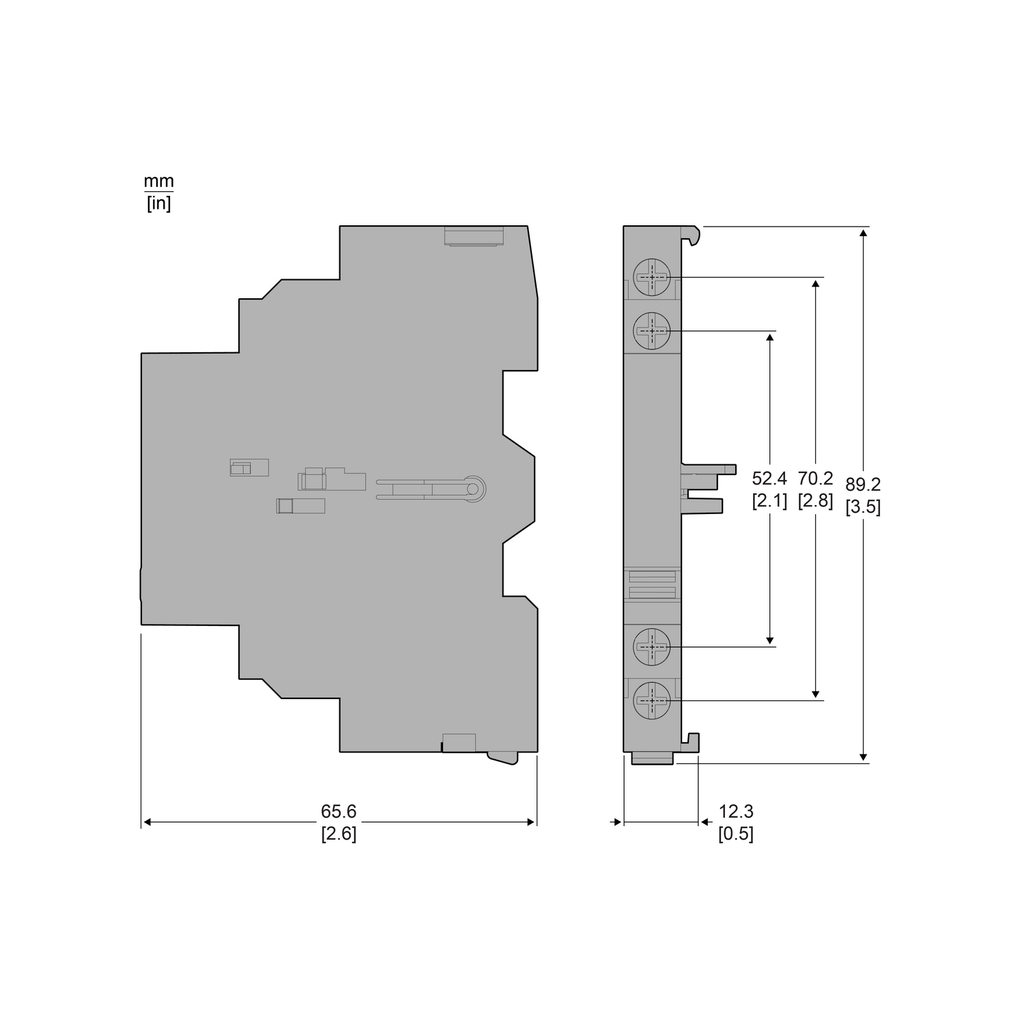

• Height : 89 mm
• [Ith] Conventional Free Air Thermal Current : 6 A || 2.5 A for fault signalling
• [Ue] Rated Operational Voltage : 48...690 V AC || 24...240 V DC
• Protection Type : GB2CB... circuit breaker || gG fuse 10 A
• Net Weight : 0.055 kg
• [Ui] Rated Insulation Voltage : 690 V IEC 60947-1 || 300 V UL 508 || 300 V CSA C22.2 No 14
• Minimum Switching Voltage : 17 V
• Tightening Torque : 1.4 N.m screw clamp terminals
• Rated Operational Power In Va : 300 VA 48-48 V AC-15 100000 cycles || 414 VA 690-690 V AC-15 100000 cycles || 500 VA 110-127 V AC-15 100000 cycles || 500 VA 500-500 V AC-15 100000 cycles || 650 VA 440-440 V AC-15 100000 cycles || 720 VA 230-240 V AC-15 100000 cycles || 850 VA 380-415 V AC-15 100000 cycles || 36 VA 24-24 V AC-14 1000 cycles || 48 VA 48-48 V AC-14 1000 cycles || 72 VA 110-127 V AC-14 1000 cycles
• Mechanical Durability : 100000 cycles
• Color : dark grey
• Width : 9.3 mm
• Depth : 66 mm
• Rated Operational Power In W : 120 W 240 V DC-13 100000 cycles || 140 W 110 V DC-13 100000 cycles || 140 W 24 V DC-13 100000 cycles || 180 W 60 V DC-13 100000 cycles || 240 W 48 V DC-13 100000 cycles || 15 W 48 V DC-13 1000 cycles || 24 W 24 V DC-13 1000 cycles || 9 W 60 V DC-13 1000 cycles
• Specifications
• Product Or Component Type : auxiliary contact block
• Range : TeSys || TeSys Deca
• Mounting Location : left side
• Pole Contact Composition : 2 NC
• Product Compatibility : GV3L || GV2P || GV2LE || GV2RT || GV2L || GV2ME || GV3P
• Auxiliary Contacts Operation : fault signal 1 NC
• Device Short Name : GVAD
