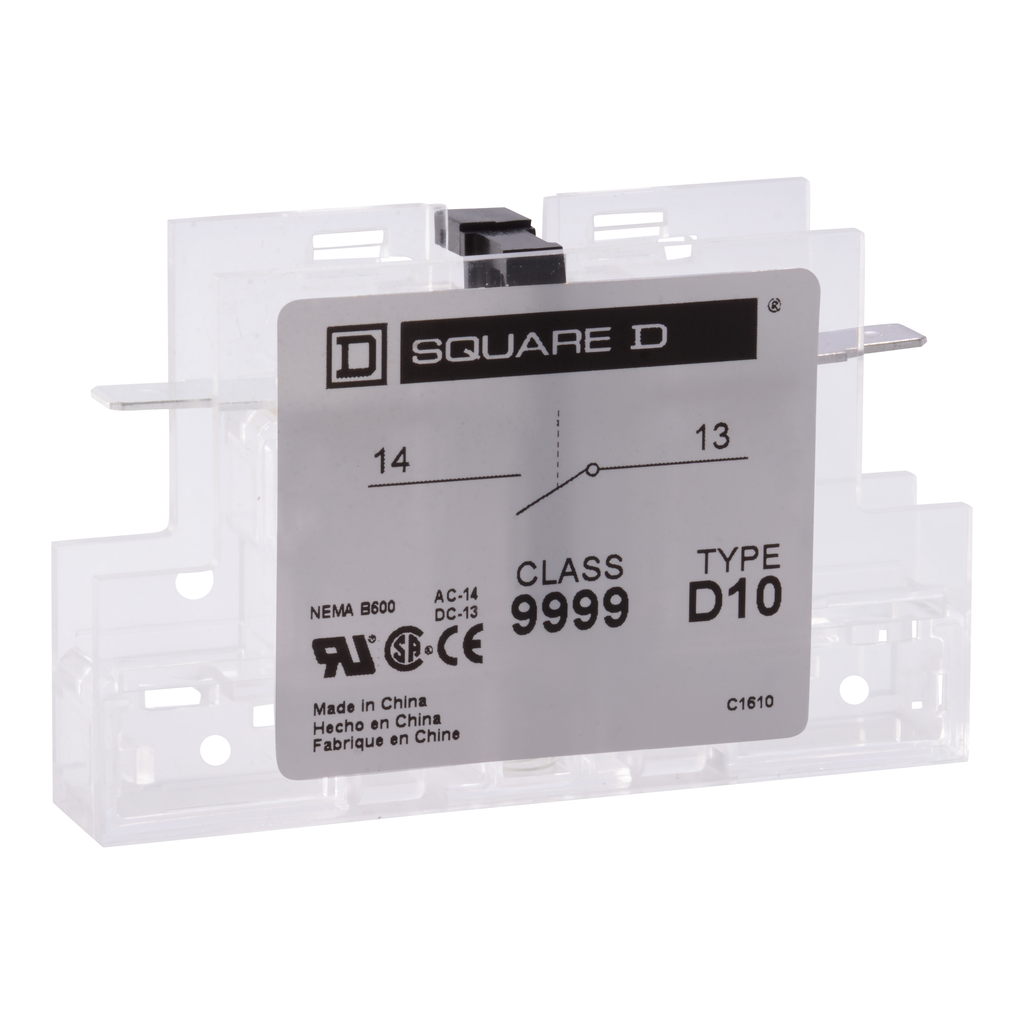

Auxiliary contact module is for Series B versions of the 8910DPA definite purpose contactors, 8911DPS definite purpose starters or 8965 reversing hoist contactors. Contact module has one gold flashed normally open contact for 50 to 90 A definite purpose contactors. Auxiliary contact module has a NEMA B600 contact rating with a maximum voltage rating of 600VAC. Contact modules are UL component recognized and CSA certified.

• Market Segmentation
• Commercial
• Industrial
• Persona Type Names
• Contractor
• Original Equipment Manufacturer
• OEM - Control Panelbuilder
• Panel Builder
• Electrician
• Persona Type Ids
• LC
• OM
• OM8
• PB
• SC
• Market Segmentation Id
• COMMERCIAL
• INDUSTRIAL
• Rated Breaking Capacity
• 3 A 120 V AC inductive control circuit UL 508
• 1.5 A 240 V AC inductive control circuit UL 508
• 0.75 A 480 V AC inductive control circuit UL 508
• 0.6 A 600 V AC inductive control circuit UL 508
• 5 A <= 600 V AC resistive control circuit UL 508

• Important Information Attributes
• B2B Bullet Point 1 : Available in wide variety of enclosures suitable for lighting control
• B2B Bullet Point 2 : Field-convertible contacts with N.O. and N.C. indicators (8 N.C. contacts maximum)
• B2B Bullet Point 3 : Electrically and mechanically held
• B2B Bullet Point 4 : 4 -12 pole versions
• B2B Bullet Point 5 : UL Listed and CSA certified to meet a variety of North American needs
• Local Data Status : Publishable
• Local Publishable Date : 2025-11-13
• Serviceability : No
• Traceability : No
• Field Service Division : PPIBS
• Legacy WEEE Scope : In
• WEEE Product Category : 5
• Scope Perimeter : Outside of Europe
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS EUR In Scope : Yes
• ROHS EUR Status : Compliant with Exemptions
• ROHS EUR Conformity Date : 1906
• ROHS EUR Full Compliance Status : Compliant with Exemptions
• ROHS EUR Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
• China ROHS In Scope : No
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : N
• WD Status : L - LOB initialized
• Tier Id : 2
• Tier : 2
• Function Option Id : STANDARD
• Function Option : Standard
• Package Weight Lbs : 90.719 g
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Destination : contactor
• Product Or Component Type : Auxiliary Contact Module
• Range Of Product : DPA
• Returnability : No
• Sustainable Packaging : Yes
• Nbr Of Units In Pkg : 1
• Warranty In Months : 18
• General Attributes
• Product Or Component Type : Auxiliary Contact Module
• Range Of Product : DPA
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=566563&lang=en-us
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : Product out of China RoHS scope. Substance declaration for your information.
• Mercury Free : Yes
• EU ROHS Directive : Compliant with Exemptions
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : Mexico
