SQUARE D

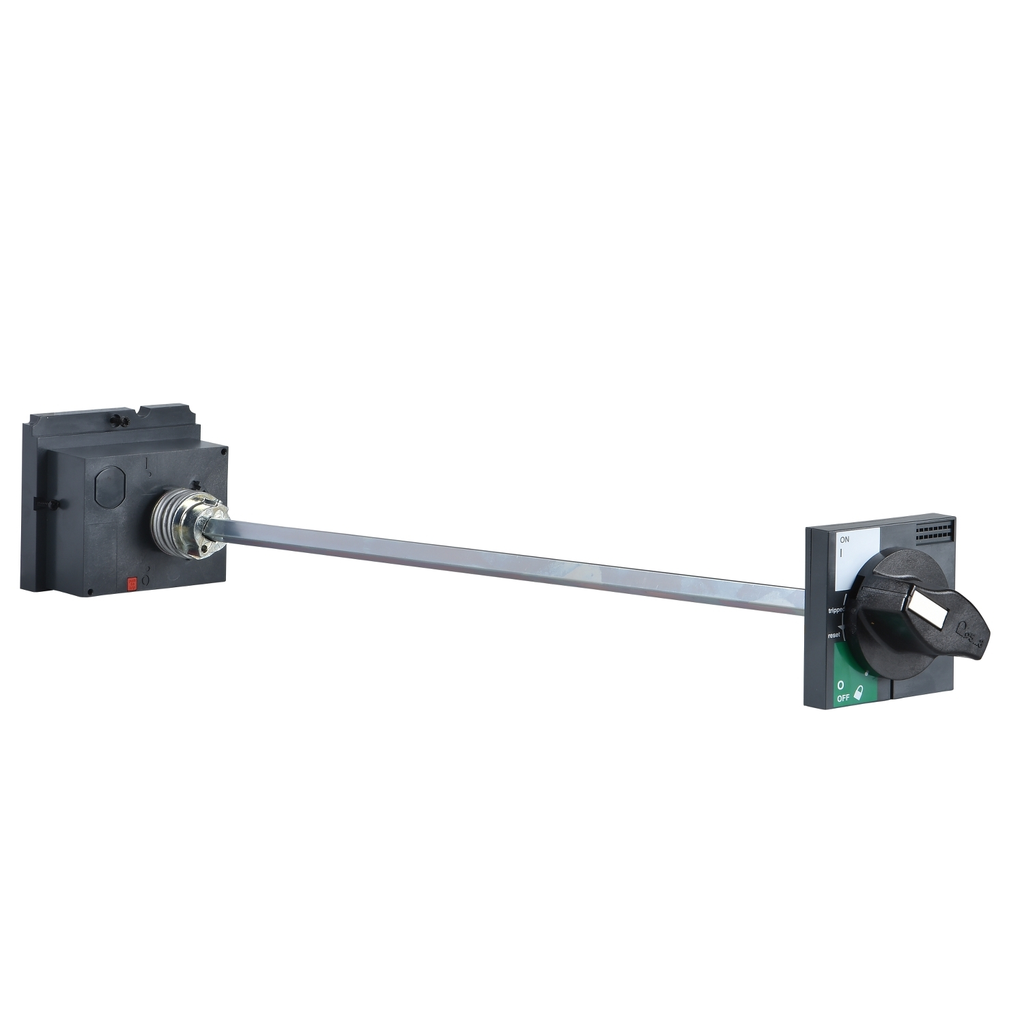

Extended rotary handle, TeSys GV7, black legend plate, padlockable, IP55

MAN-STARTER ROTARY OPERATING H

SQDGV7AP01 GV7AP01 3389110567328
106.47 / EA
http://schema.org/OutOfStock
Mayer-DDS-Extended rotary handle, TeSys GV7, black legend plate, padlockable, IP55-1
  • Warranty Length: 18 mth
GV7AP01 is an extended rotary handle for TeSys GV7 motor circuit breakers from Schneider Electric. Compatible with all GV7 models, it operates externally front face a circuit breaker installed inside a cabinet. Black handle, for main switch usage. GV7AP01 is an extended rotary handle for TeSys GV7 motor circuit breakers from Schneider Electric. Compatible with all GV7 models, it allows a circuit breaker installed inside a cabinet to be operated externally front face. It includes an adaptor for the face of the circuit breaker, a black handle with grey front plate to be door mounted and an extension shaft adjustable in length. It is intended for main switch usage, ensures IP55 protection and is padlockable. Extended rotary handle for the external operation of a circuit breaker installed inside a cabinet. The extension shaft can be adjusted for a distance of 185mm to 600mm between the mounting surface of the circuit breaker and the external door surface. Black handle with grey front plate for main switch applications. Ensure IP55 protection. Padlockable with 3 padlocks in the Off position, prevents the door to be opened.
QTY
  • Product Description
  • Features
  • Specifications
GV7AP01 is an extended rotary handle for TeSys GV7 motor circuit breakers from Schneider Electric. Compatible with all GV7 models, it operates externally front face a circuit breaker installed inside a cabinet. Black handle, for main switch usage. GV7AP01 is an extended rotary handle for TeSys GV7 motor circuit breakers from Schneider Electric. Compatible with all GV7 models, it allows a circuit breaker installed inside a cabinet to be operated externally front face. It includes an adaptor for the face of the circuit breaker, a black handle with grey front plate to be door mounted and an extension shaft adjustable in length. It is intended for main switch usage, ensures IP55 protection and is padlockable. Extended rotary handle for the external operation of a circuit breaker installed inside a cabinet. The extension shaft can be adjusted for a distance of 185mm to 600mm between the mounting surface of the circuit breaker and the external door surface. Black handle with grey front plate for main switch applications. Ensure IP55 protection. Padlockable with 3 padlocks in the Off position, prevents the door to be opened.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Physical Attributes
    • Handle Color : black
    • Handle Front Plate Color : black
  • Important Information Attributes
    • Range Compatibility : TeSys TeSys GV7 motor circuit breaker, TeSys TeSys GV5 motor circuit breaker
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-02-10
    • HTML Description : TeSys GV7 - Front Extended Rotary Handle - Black
    • Manufacturer : Schneider Electric
    • Serviceability : No
    • Traceability : No
    • Field Service Division : PPIBS
    • Legacy WEEE Scope : In
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI1905002EN
    • ROHS EUR In Scope : Yes
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
    • China ROHS In Scope : No
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 1 - GSC certified
    • Compatibility Code : extended rotary handle
    • Device Short Name : GV7AP
    • Energy Efficiency Optimized : False
    • Handle Color : black
    • Handle Front Plate Color : black
    • Package Weight Lbs : 711.000 g
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : extended rotary handle
    • Range : TeSys
    • Returnability : Yes
    • Rotary Handle Mounting Location : front
    • Rotary Handle Mounting Style : extended
    • Sustainable Packaging : No
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Relationship Type : cross-selling relationship
    • Pep Code : ENVPEP1905002EN
    • Product Kit Identifier : N
    • Product Manager : MANISH DEV PANWAR
  • Environment Attributes Main
    • EU ROHS Directive : Compliant By Exemption​, Compliant with Exemptions
    • ROHS Exemption Information : Yes
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : Product out of China RoHS scope. Substance declaration for your information.
    • Mercury Free : Yes
    • Circularity Profile : ENVEOLI1905002EN
    • Environmental Disclosure : ENVPEP1905002EN
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : No
    • Pep Code : ENVPEP1905002EN
  • General Attributes
    • Product Or Component Type : extended rotary handle
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
