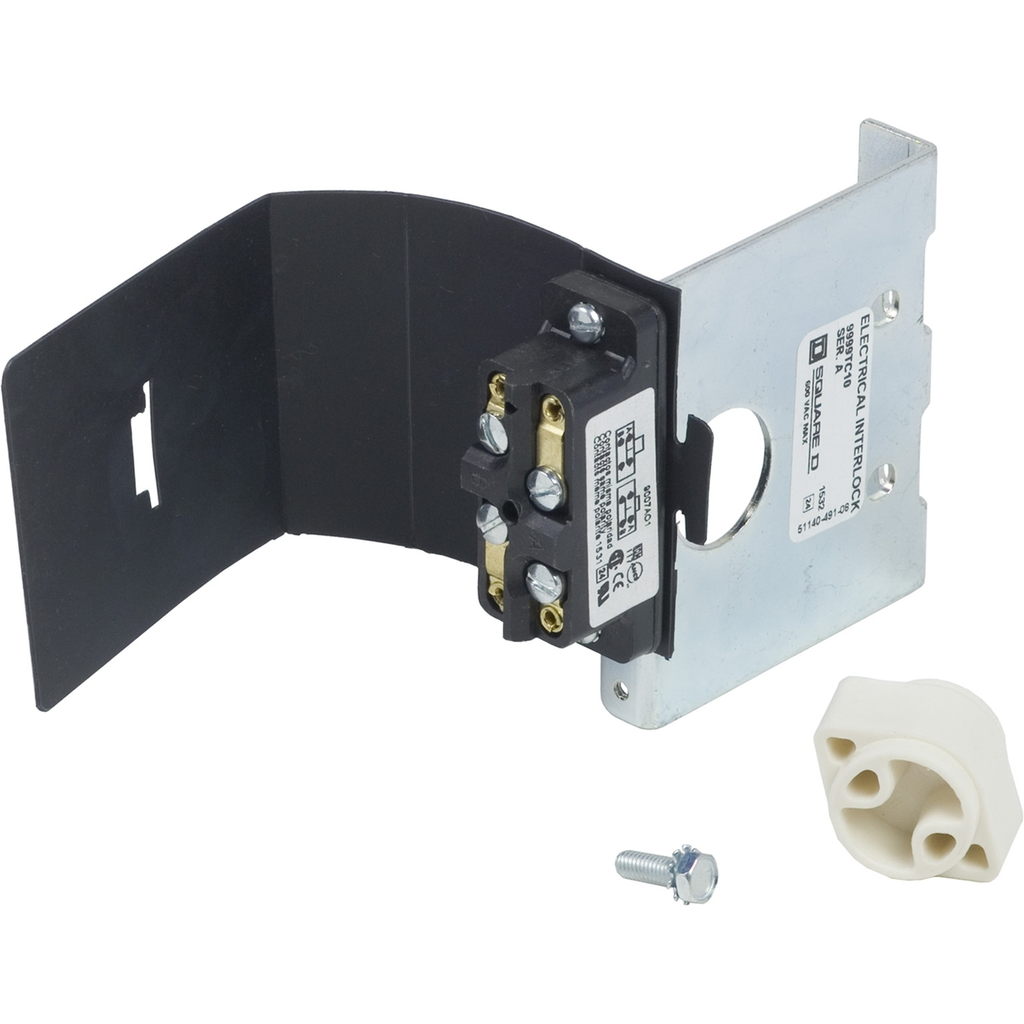

9422TCF, TCN, TDF, TDN, TEF, and TEN disconnect switches were designed for control panel installations. These switches include common switch profile 30 to 100 A, interchangeable fuse clips 30A to 60 A, and the ability to add fuse clip kits and cable mechanisms. This electrical interlock is for a 9422TCF, 9422TCN, 9422TDF, 9422TDN, 9422TEF and 9422TEN disconnect switches. The electrical interlocking contact for these disconnect switches has a SPDT contact that has 15A rating.

• Features
• Customizable with hundreds of combinations
• Robust design and reliable build
• Easy to Service with replaceable parts
• Available in NEMA Sizes 00 to 7
• 600 Volts maximum
• Prop 65
• WARNING: This product can expose you to chemicals including: Beryllium and beryllium compounds and Lead, which are known to the State of California to cause cancer and/or birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

• Complementary Attributes
• Ie Rated Operational Current : 15 A120 V AC 50/60 Hz, 15 A240 V AC 50/60 Hz, 15 A480 V AC 50/60 Hz, 15 A600 V AC 50/60 Hz
• Important Information Attributes
• Persona Type Ids : EU, LC, OM, OM8, PB
• Persona Type Names : End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Local Data Status : Publishable
• Local Publishable Date : 2026-09-04
• Return Indicator : Y
• Serviceability : No
• Traceability : No
• Field Service Division : PPIBS
• Weee Scope : In
• Weee Product Category : 5
• Scope Perimeter : At least in Europe
• Rohs Eur In Scope : Yes
• China Rohs In Scope : No
• With Recycled Cardboard : No
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Tier Id : 2
• Tier : 2
• Function Option Id : STANDARD
• Function Option : Standard
• Product Kit Identifier : N
• Device Application : control
• Energy Efficiency Optimized : False
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : interlock
• Range : Square D
• Returnability : Yes
• Sustainable Packaging : No
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Height Nominal : 4.16 in
• Width Nominal : 3.21 in
• Nbr. Of Units In Pkg. : 1
• Customs Code : 8538908180
• Warranty In Months : 18
• Environment Attributes Main
• China Rohs Regulation : Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• Eu Rohs Directive : Under investigation
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
• General Attributes
• Product Or Component Type : interlock
• ETIM
• ETIM 8 : EC002498
• ETIM 9 : EC002498
• ETIM 10 : EC002498
• Contractual Warranty Attributes
• Warranty : 18 months
• Specifications
• Country of Origin : France
• Depth : 1.44 in
