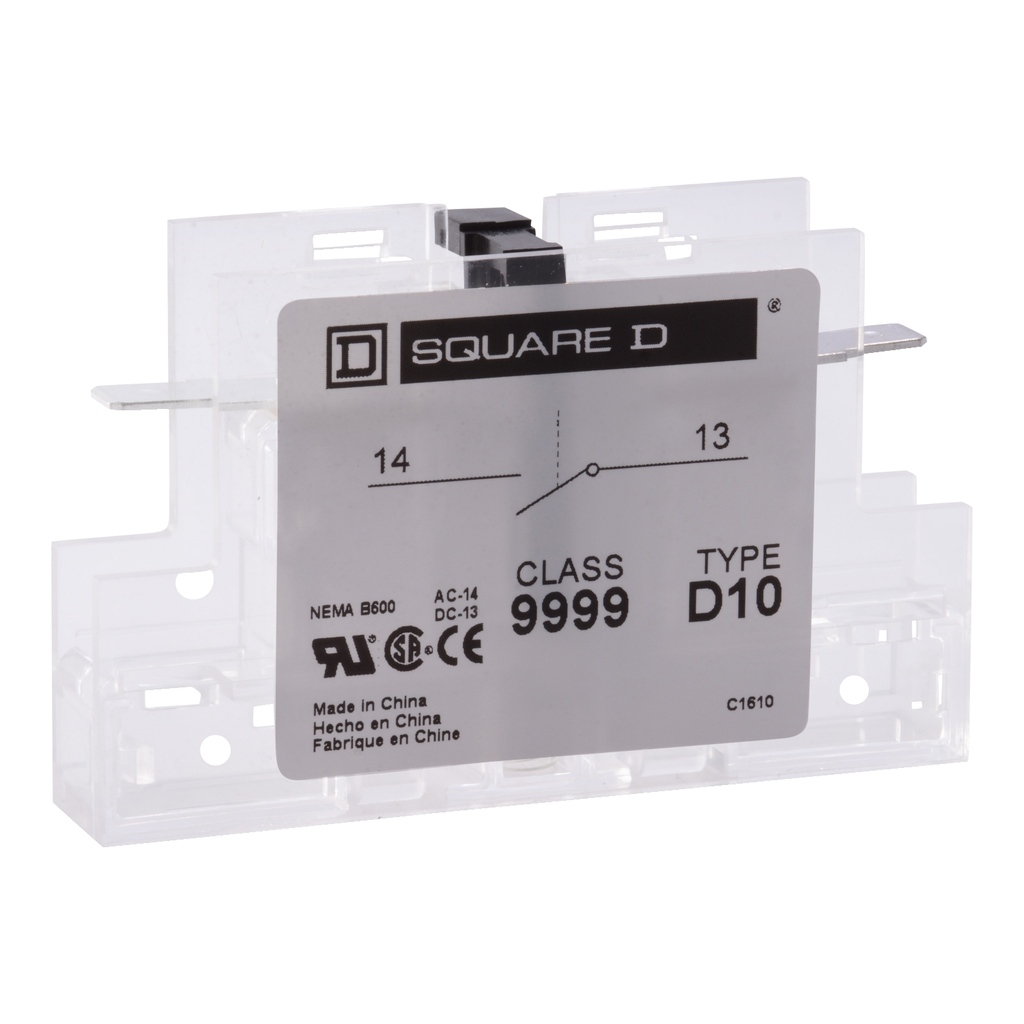

Contactor, Definite Purpose, auxiliary contact, 3A at 120VAC, 1 NO contact and 1 NC contact, for 20A to 90A DPA contactors

CONTACTOR AUX CONTACT KIT 600V

SQD9999D11 9999D11 785901080886
35.15 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Contactor, Definite Purpose, auxiliary contact, 3A at 120VAC, 1 NO contact and 1 NC contact, for 20A to 90A DPA contactors-2
  • Country of Origin: China
  • Warranty Length: 18 mth
Auxiliary contact module is for Series B versions of the 8910DPA definite purpose contactors, 8911DPS definite purpose starters or 8965 reversing hoist contactors. Contact module has one normally closed contact for 20A to 90A definite purpose contactors. Auxiliary contact module has a NEMA B600 contact rating with a maximum voltage rating of 600VAC. Contact modules are UL component recognized and CSA certified.
QTY
  • Product Description
  • Features
  • Specifications
Auxiliary contact module is for Series B versions of the 8910DPA definite purpose contactors, 8911DPS definite purpose starters or 8965 reversing hoist contactors. Contact module has one normally closed contact for 20A to 90A definite purpose contactors. Auxiliary contact module has a NEMA B600 contact rating with a maximum voltage rating of 600VAC. Contact modules are UL component recognized and CSA certified.
  • Market Segmentation
    • Commercial
    • Industrial
  • Persona Type Names
    • End User
    • Contractor
    • Original Equipment Manufacturer
    • OEM - Control Panelbuilder
    • Panel Builder
  • Persona Type Ids
    • EU
    • LC
    • OM
    • OM8
    • PB
  • Actuators
    • 8910DPA32V02
    • 8910DPA32V04
    • 8910DPA32V06
    • 8910DPA32V09
    • 8910DPA32V14
    • 8910DPA33V02
    • 8910DPA33V04
    • 8910DPA33V06
    • 8910DPA33V09
    • 8910DPA33V14
  • Market Segmentation Id
    • COMMERCIAL
    • INDUSTRIAL
  • Rated Breaking Capacity
    • 3 A 120 V AC inductive control circuit UL 508
    • 1.5 A 240 V AC inductive control circuit UL 508
    • 0.75 A 480 V AC inductive control circuit UL 508
    • 0.6 A 600 V AC inductive control circuit UL 508
    • 5 A <= 600 V AC resistive control circuit UL 508
  • Important Information Attributes
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-11-13
    • HTML Description : Contactor+Starter Contact Block:5A1 Normally Open - 1 Normally Closed600VACTerminal Type: Screw Clamp
    • Manufacturer : Schneider Electric
    • Serviceability : No
    • Traceability : No
    • Field Service Division : PPIBS
    • Legacy WEEE Scope : In
    • WEEE Product Category : 5
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : No need of specific recycling operations
    • Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
    • Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : Yes
    • ROHS EUR Status : Compliant
    • ROHS EUR Conformity Date : 2540
    • ROHS EUR Full Compliance Status : Compliant
    • ROHS EUR Full Compliance Status Id : COMPLIANT
    • China ROHS In Scope : No
    • China ROHS Label : 1
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 5 - INITIALIZED WITH DataSCAN OK (Migration)
    • Tier Id : 2
    • Tier : 2
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Energy Efficiency Optimized : False
    • Package Weight Lbs : 40.823 g
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Destination : contactor
    • Product Or Component Type : Auxiliary Contact Module
    • Range Of Product : DPA
    • Returnability : Yes
    • Sustainable Packaging : Yes
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Relationship Type : Compatible relationship
    • Nbr Of Units In Pkg : 1
    • Warranty In Months : 18
  • General Attributes
    • Product Or Component Type : Auxiliary Contact Module
    • Range Of Product : DPA
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=566565&lang=en-us
    • Take Back : No
    • Reach Free SHVC : Yes
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • EU ROHS Directive : Compliant
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Free Of SVHC : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : China
