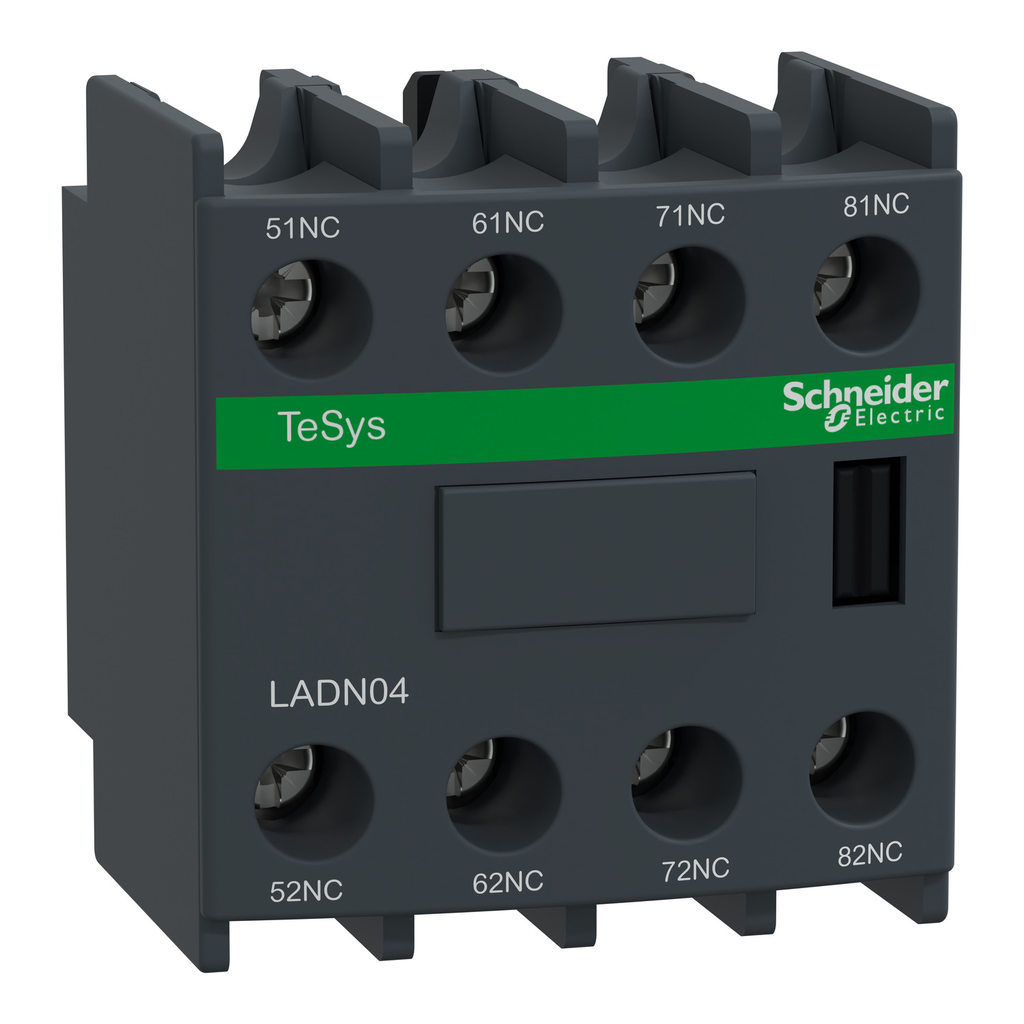

TeSys Deca instantaneous auxiliary contact block, for contactors LC1D, LC1F and control relays CAD. It provides 4NC contacts (NC mirror certified) rated up to 10A/690V AC, connection by screw clamp terminals. Clip-on front mounting, it procures high reli

• Connections Terminals
• screw clamp terminals 1 1-4 mm²flexible with cable end
• screw clamp terminals 1 1-4 mm²fle
• Range Compatibility
• TeSys D LC1D
• TeSys D CAD
• TeSys F LC1F
• TeSys F CR1F
• TeSys Deca CAD
• TeSys Deca LC1D
• Carbon Footprint Of The Installation Phase A5
• 0.0038548757097031845
• 0 kg CO2 eq.
• Non Overlap Time
• 1.5 ms on de-energisation no overlap between NC and NO contact
• 1.5 ms on energisation no overlap between NC and NO contact
• 1.5 m
• Carbon Footprint Of The End Of Life Phase C1 To C4
• 0.1 kg CO2 eq.
• 0.07028376588158561
• Standards
• EN/IEC 60947-5-1
• GB/T 14048.5
• EN 50012
• UL 60947-5-1
• CSA C22.2 No 60947-5-1
• IEC 60335-1:Clause 30.2
• IEC 60335-2-40:Annex JJ
• UL 60335-2-40:Annex JJ
• Ue Rated Operational Voltage
• 690 V AC 25...400 Hz
• Ui Rated Insulation Voltage
• 690 V IEC 60947-5-1
• 600 V UL
• 600 V CSA
• Ip Degree Of Protection
• IP20 conforming to IEC 60529
• Carbon Footprint Of The Manufacturing Phase A1 To A3
• 0.2 kg CO2 eq.
• 0.18987208313736742
• Protective Treatment
• TH IEC 60068
• Protection Type
• gG fuse 10 A
• Market Segmentation
• Commercial
• Industrial
• Persona Type Names
• End User
• Contractor
• Original Equipment Manufacturer
• OEM - Control Panelbuilder
• Panel Builder
• System Integrator
• Carbon Footprint Of The Use Phase B2 B3 B4 B6
• 6 kg CO2 eq.
• 6.3212
• Persona Type Ids
• EU
• LC
• OM
• OM8
• PB
• SI
• Carbon Footprint Of The Distribution Phase A4
• 0.030848118386537053
• 0 kg CO2 eq.
• Tightening Torque
• 1.7 N.m flat Ø 6 mm
• 1.7 N.m Philips No 2
• 1.7 N.m pozidriv No 2
• Ith Conventional Free Air Thermal Current
• 10 A (at 60 °C)
• Irms Rated Making Capacity
• 140 A AC conforming to IEC 60947-5-1
• 250 A DC conforming to IEC 60947-5-1
• Permissible Short Time Rating
• 100 A 1 s
• 120 A 500 ms
• 140 A 100 ms
• Ie Rated Operational Current
• 6 A at 120 V AC-15
• 1.04 A at 690 V AC-15
• 0.55 A at 125 V DC-13
• 0.1 A at 600 V DC-13
• Market Segmentation Id
• COMMERCIAL
• INDUSTRIAL
• Range
• TeSys
• TeSys Deca
• Product Certifications
• CB Scheme
• UL
• CSA
• CCC
• EAC
• UKCA

• Physical Attributes
• Color : dark grey
• Complementary Attributes
• Minimum Switching Current : 5 mA
• Minimum Switching Voltage : 17 V
• Important Information Attributes
• Country Id : US
• Local Data Status : Publishable
• Local Publishable Date : 2025-08-13
• ETIM 10 : EC000041
• Html Descr : TeSys D Auxiliary Contact block, 4 NC, Screw-clamps terminals
• Manufacturer : Schneider Electric
• Serviceability : No
• Traceability : No
• Field Service Division : PPIBS
• Manufacturing Carbon Footprint : 0.189872083137367
• Distribution Carbon Footprint : 3.08481183865371e-02
• Installation Carbon Footprint : 3.85487570970318e-03
• Use Carbon Footprint : 6.3212
• End Of Life Carbon Footprint : 7.02837658815856e-02
• Legacy WEEE Scope : In
• WEEE Product Category : 5
• Scope Perimeter : At least in Europe
• EOLI Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• ROHS Eur In Scope : Yes
• ROHS Eur Status : Compliant
• ROHS Eur Conformity Date : 1929
• ROHS Eur Full Compliance Status : Compliant
• ROHS Eur Full Compliance Status Id : COMPLIANT
• China ROHS In Scope : No
• China ROHS Label : 1
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : Yes
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 1 - GSC certified
• Tier Id : 1
• Tier : 1
• Function Option Id : STANDARD
• Function Option : Standard
• Device Short Name : LADN
• Environmental Characteristic : normal environment
• Insulation Resistance : > 10 MOhm
• Mechanical Durability : 30 Mcycles
• Mounting Location : front
• Package Weight Lbs : 62.000 g
• Pole Contact Composition : 4 NC
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : auxiliary contact block
• Range Of Product : TeSys Deca
• Returnability : Yes
• Shielding Continuity Terminal : without
• Sustainable Packaging : Yes
• Total Lifecycle Carbon Footprint : 7 kg CO2 eq.
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Carbon Footprint Kg Co2 Eq Total Life Cycle : 6.616058843115193
• Relationshiptype : Compatible relationship
• General Attributes
• Product Or Component Type : auxiliary contact block
• Range Of Product : TeSys Deca
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=1469932&lang=en-us
• Take Back : No
• Reach Free Shvc : Yes
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Carbon Footprint : 6.61605884311519
• Ambient Air Temperature For Operation : -5-60 °C
• Ambient Air Temperature For Storage : -60-80 °C
• Environmental Disclosure : ENVPEP110807EN_V3
• Eu Rohs Directive : Compliant
• Operating Altitude : 9842.52 ft (3000 m)
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : No
• Reach Free Of Svhc : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : Czechia
• Height : 1.89 in
• Width : 1.73 in
• Depth : 1.65 in
