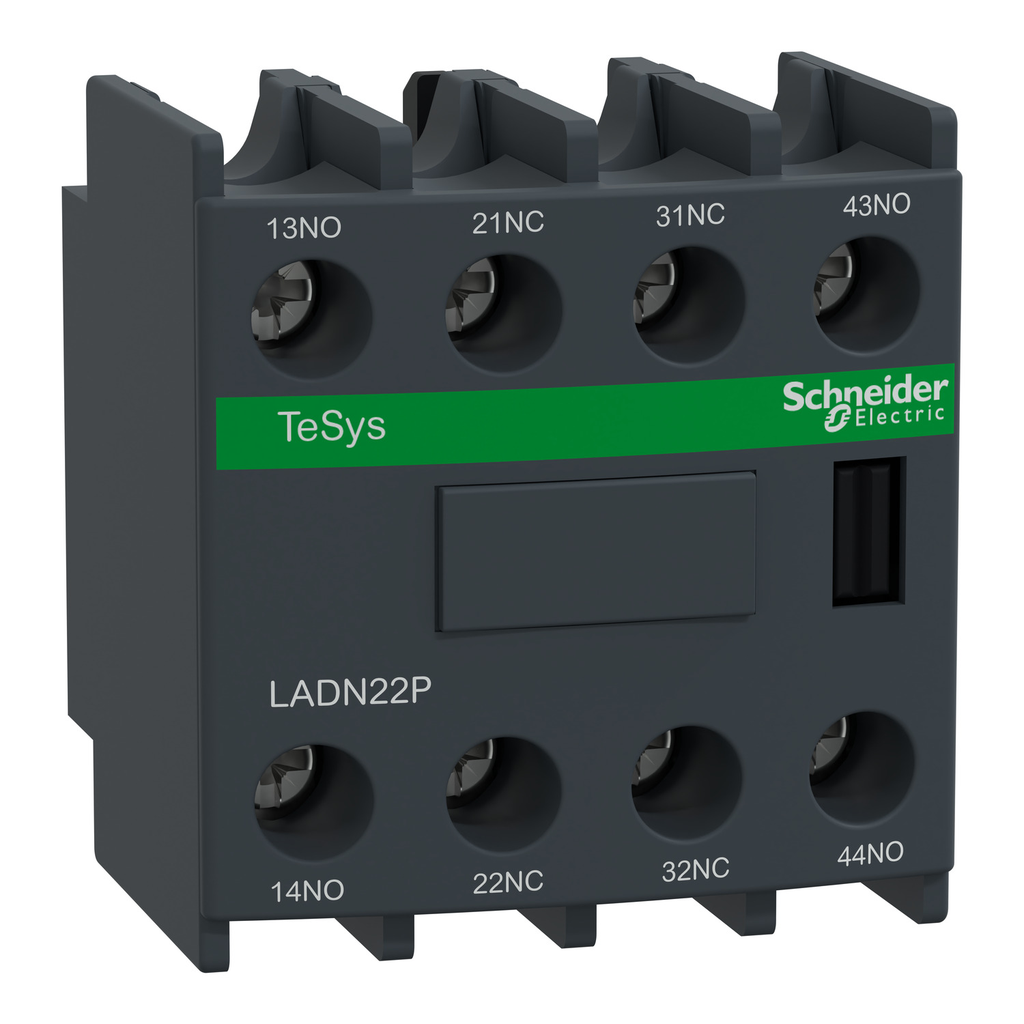

TeSys Deca instantaneous auxiliary contact block, for 4-pole contactors LC1D, LC1DT (<= 80A AC-1). It provides 2NO+2NC contacts (NC mirror certified) rated up to 10A 690V AC, connection by screw clamp terminals, with terminal referencing conforming to EN 50012. Clip-on front mounting, it procures high reliability and durability. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC). Multi standards certified (IEC, UL, CSA, CCC, EAC).

• Environment
• Ambient Air Temperature For Operation : -5-60 °C
• Ip Degree Of Protection : IP20 conforming to IEC 60529
• Ambient Air Temperature For Storage : -60-80 °C
• Environmental Characteristic : normal environment
• Protective Treatment : TH IEC 60068
• Operating Altitude : 9842.52 ft (3000 m)
• Contractual warranty
• Warranty : 18 months
• Environmental data
• Packaging Made With Recycled Cardboard : Yes
• Environmental Disclosure : ENVPEP110807EN_V3
• Packaging Without Single Use Plastic : Yes
• Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Circularity Profile : N/A
• Take-Back : No
• Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 3.8092894548534253
• Complementary
• Non-Overlap Time : 1.5 ms on de-energisation no overlap between NC and NO contact || 1.5 ms on energisation no overlap between NC and NO contact
• Permissible Short-Time Rating : 100 A 60 °C 1 s || 120 A 60 °C 500 ms || 140 A 60 °C 100 ms
• Minimum Switching Current : 5 mA
• Height : 48 mm
• Protection Type : gG fuse 10 A
• Insulation Resistance : > 10 MOhm
• Irms Rated Making Capacity : 140 A AC conforming to IEC 60947-5-1 || 250 A DC conforming to IEC 60947-5-1
• Net Weight : 0.05 kg
• Connections - Terminals : screw clamp terminals 1 1-2.5 mm²flexible with cable end || screw clamp terminals 1 1-2.5 mm²flexible without cable end || screw clamp terminals 2 1-2.5 mm²flexible with cable end || screw clamp terminals 2 1-2.5 mm²flexible without cable end || screw clamp terminals 1 1-2.5 mm²rigid || screw clamp terminals 2 1-2.5 mm²rigid
• Minimum Switching Voltage : 17 V
• Tightening Torque : 1.7 N.m flat Ø 6 mm || 1.7 N.m Philips No 2 || 1.7 N.m pozidriv No 2
• Mechanical Durability : 30 Mcycles
• Color : dark grey
• Width : 44 mm
• Depth : 42 mm
• Specifications
• Country of Origin : France
• Width : 44 mm
• Height : 48 mm
• Weight : 0.05 kg
• Product Certifications : CB Scheme || UL || CSA || CCC || EAC || UKCA
• [Ith] Conventional Free Air Thermal Current : 10 A (at 60 °C)
• [Ue] Rated Operational Voltage : 690 V AC 25...400 Hz
• Standards : EN/IEC 60947-5-1 || GB/T 14048.5 || EN 50012 || UL 60947-5-1 || CSA C22.2 No 60947-5-1 || IEC 60335-1:Clause 30.2 || IEC 60335-2-40:Annex JJ || UL 60335-2-40:Annex JJ
• Range Compatibility : TeSys D LC1D80004...D115004 || TeSys F LC1F || TeSys F CR1F || TeSys Deca LC1D80004...D115004
• Product Or Component Type : auxiliary contact block
• Product Name : TeSys Deca
• Range : TeSys || TeSys Deca
• Mounting Location : front
• Pole Contact Composition : 2 NO + 2 NC
• [Ui] Rated Insulation Voltage : 690 V IEC 60947-5-1 || 600 V UL 60947-5-1 || 600 V CSA C22.2 No 60947-5-1
• [Ie] Rated Operational Current : 6 A at 120 V AC-15 || 1.04 A at 690 V AC-15 || 0.55 A at 125 V DC-13 || 0.1 A at 600 V DC-13
• Auxiliary Contacts Operation : instantaneous
• Device Short Name : LADN
