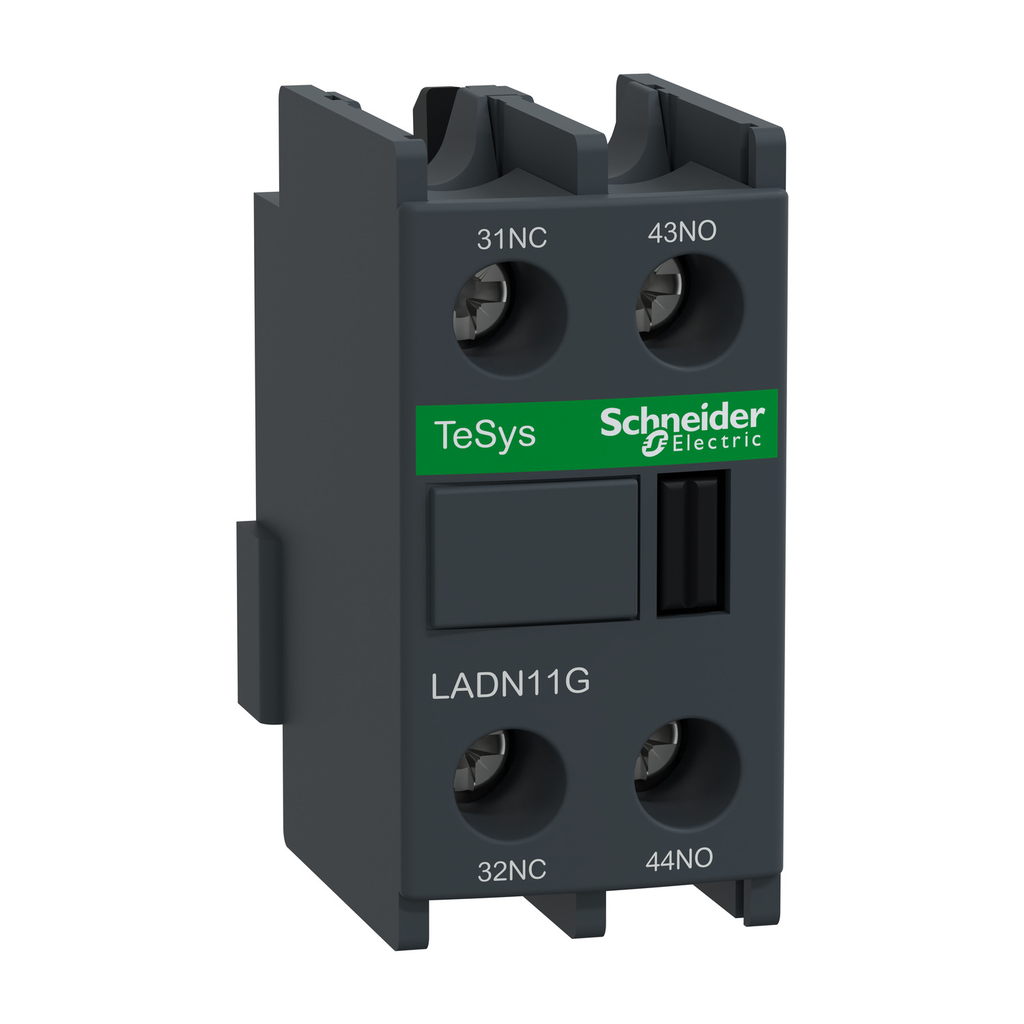

Auxiliary contact block, TeSys Deca, 1NO + 1NC, front mounting, screw clamp terminals, EN 50012

CONTACTOR AUXILIARY CONTACT BL

SQDLADN11G LADN11G 3389110383843
27.85 / EA
http://schema.org/OutOfStock
Mayer-DDS-Auxiliary contact block, TeSys Deca, 1NO + 1NC, front mounting, screw clamp terminals, EN 50012-1
  • Certifications: CB, CCC, CSA, EAC, UKCA, UL
  • Contact Configuration: 1 NO + 1 NC
  • Depth: 42 mm
  • Height: 48 mm
  • Standard: EN 50012, EN/IEC 60947-5-1, GB/T 14048.5
  • Storage Temperature: -60-80 °C
  • Warranty Length: 18 mth
  • Width: 26 mm
TeSys D instantaneous auxiliary contact block, for 4-pole contactors LC1D, LC1DT (<= 80A AC-1). It provides 1NO+1NC contacts (NC mirror certified) rated up to 10A 690V AC, connection by screw clamp terminals, with terminal referencing conforming to EN 50012. Clip-on front mounting, it procures high reliability and durability. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).
QTY
  • Product Description
  • Specifications
TeSys D instantaneous auxiliary contact block, for 4-pole contactors LC1D, LC1DT (<= 80A AC-1). It provides 1NO+1NC contacts (NC mirror certified) rated up to 10A 690V AC, connection by screw clamp terminals, with terminal referencing conforming to EN 50012. Clip-on front mounting, it procures high reliability and durability. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).
  • Environment
    • Ambient Air Temperature For Operation : -5-60 °C
    • Ip Degree Of Protection : IP20 conforming to IEC 60529
    • Ambient Air Temperature For Storage : -60-80 °C
    • Environmental Characteristic : normal environment
    • Protective Treatment : TH IEC 60068
    • Operating Altitude : 9842.52 ft (3000 m)
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP110807EN_V3
    • Sustainable Offer Status : Green Premium product
    • Toxic Heavy Metal Free : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Reach Free Of Svhc : Yes
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • China Rohs Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
    • Circularity Profile : N/A
    • Eu Rohs Directive : Compliant
  • Complementary
    • Non-Overlap Time : 1.5 ms on de-energisation no overlap between NC and NO contact || 1.5 ms on energisation no overlap between NC and NO contact
    • Permissible Short-Time Rating : 100 A 60 °C 1 s || 120 A 60 °C 500 ms || 140 A 60 °C 100 ms
    • Minimum Switching Current : 5 mA
    • Height : 48 mm
    • Protection Type : gG fuse 10 A
    • Insulation Resistance : > 10 MOhm
    • Irms Rated Making Capacity : 140 A AC conforming to IEC 60947-5-1 || 250 A DC conforming to IEC 60947-5-1
    • Connections - Terminals : screw clamp terminals 1 1-4 mm²flexible with cable end || screw clamp terminals 1 1-4 mm²flexible without cable end || screw clamp terminals 2 1-2.5 mm²flexible with cable end || screw clamp terminals 2 1-4 mm²flexible without cable end || screw clamp terminals 1 1-4 mm²rigid without cable end || screw clamp terminals 2 1-4 mm²rigid without cable end
    • Minimum Switching Voltage : 17 V
    • Tightening Torque : 1.7 N.m flat Ø 6 mm || 1.7 N.m Philips No 2 || 1.7 N.m pozidriv No 2
    • Mechanical Durability : 30 Mcycles
    • Color : dark grey
    • Width : 26 mm
    • Depth : 42 mm
  • Specifications
    • Product Certifications : CB || UL || CSA || CCC || EAC || UKCA
    • [Ith] Conventional Free Air Thermal Current : 10 A (at 60 °C)
    • Standards : EN/IEC 60947-5-1 || GB/T 14048.5 || EN 50012
    • [Ue] Rated Operational Voltage : 690 V AC 25...400 Hz
    • Range Compatibility : TeSys D LC1D09...D80 || TeSys D LC1DT20...DT40 || TeSys D LC1DT60A...DT80A || TeSys F LC1F || TeSys F CR1F || TeSys Deca LC1D09...D80 || TeSys Deca LC1DT20...DT40 || TeSys Deca LC1DT60A...DT80A
    • Product Or Component Type : auxiliary contact block
    • Product Name : TeSys Deca
    • Range : TeSys || TeSys Deca
    • Mounting Location : front
    • Pole Contact Composition : 1 NO + 1 NC
    • [Ui] Rated Insulation Voltage : 690 V IEC 60947-5-1 || 600 V UL || 600 V CSA
    • [Ie] Rated Operational Current : 6 A at 120 V AC-15 || 1.04 A at 690 V AC-15 || 0.55 A at 125 V DC-13 || 0.1 A at 600 V DC-13
    • Auxiliary Contacts Operation : instantaneous
    • Device Short Name : LADN
