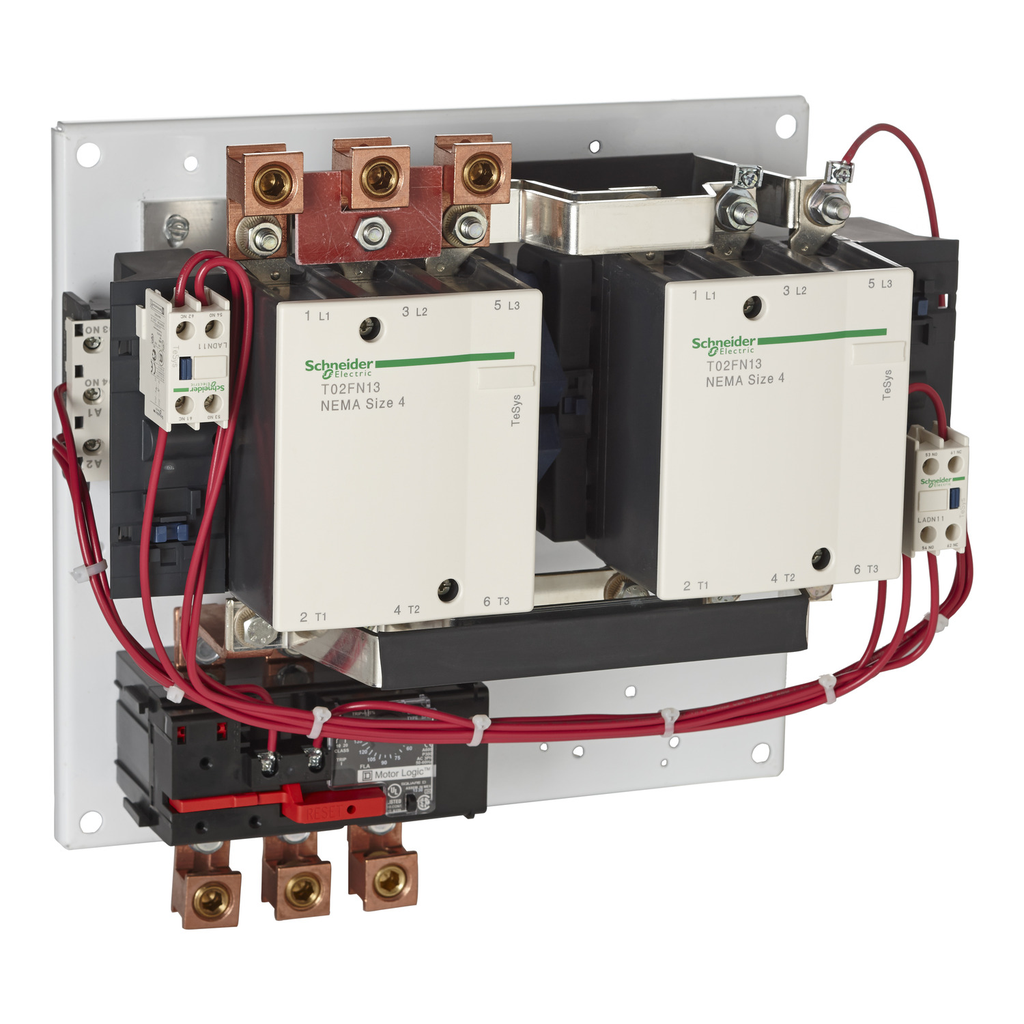

Starter, TeSys N, 135A, 1NO, 100HP at 575VAC, NEMA size 4

Starter, TeSys N, 135A, 1NO, 100HP at 575VAC, NEMA size 4

SQDT36FN23G7 T36FN23G7 SQDT36FN23G7
0.00 / EA
http://schema.org/OutOfStock
Mayer-DDS-Starter, TeSys N, 135A, 1NO, 100HP at 575VAC, NEMA size 4-1
  • Country of Origin: USA
TeSys N contactors and starters conform to NEMA ICS2 standards. The NEMA size is printed directly on the face of the contactor. The 3 pole NEMA size 4 motor starter has a 135 amperage continuous current rating. It also has a rating of 100HP at 575VAC. This motor starter has a Motor Logic solid state overload relay with a Class 10/20 rating. The overload is adjustable from 45 to 135 amperes. Starter has 1 normally open auxiliary contact. This starter is not in an enclosure. Motor starter is UL listed and CSA Certified.
QTY
  • Product Description
  • Specifications
TeSys N contactors and starters conform to NEMA ICS2 standards. The NEMA size is printed directly on the face of the contactor. The 3 pole NEMA size 4 motor starter has a 135 amperage continuous current rating. It also has a rating of 100HP at 575VAC. This motor starter has a Motor Logic solid state overload relay with a Class 10/20 rating. The overload is adjustable from 45 to 135 amperes. Starter has 1 normally open auxiliary contact. This starter is not in an enclosure. Motor starter is UL listed and CSA Certified.
  • Conformance Attributes
    • Product Certifications : UL Listed, CSA
  • Complementary Attributes
    • Rated Power In Hp : 40 HP 200 V AC, 50 HP 230 V AC, 100 HP 460 V AC, 100 HP 575 V AC
    • Control Circuit : common control circuit
    • Line Rated Current : 135 A
    • Uc Control Circuit Voltage : 120 V AC
    • Ue Rated Operational Voltage : 600 V AC
  • Important Information Attributes
    • Persona Type Ids : EU, LC, OM, OM8, PB, SC
    • Persona Type Names : End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician
    • Market Segmentation Id : COMMERCIAL, INDUSTRIAL
    • Market Segmentation : Commercial, Industrial
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-02-13
    • Return Indicator : N
    • Stocking Flag : Y
    • Stock Policy : 2
    • Legacy Weee Scope : In
    • Weee Product Category : 5
    • Scope Perimeter : Outside of Europe
    • Rohs Eur In Scope : Yes
    • Rohs Eur Status : Compliant By Exemption
    • Rohs Eur Conformity Date : 2014
    • Rohs Eur Full Compliance Status : Compliant By Exemption
    • China Rohs In Scope : No
    • With Recycled Cardboard : No
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Tier Id : 2
    • Tier : 2
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Product Kit Identifier : N
    • Control Circuit : common control circuit
    • Electrical Connection : lugs ordered separately
    • Motor Starter Type : reversing
    • Phase : 3 phase
    • Poles Description : 3P
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : starter
    • Range Of Product : TeSys N
    • Returnability : No
    • Sustainable Packaging : No
    • Thermal Overload Type : solid state Motor Logic class 10/20 45-135 A
    • Warranty In Months : 18
    • Offer Owner Code : 190788
  • Environment Attributes Main
    • China Rohs Regulation : Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • Mercury Free : Yes
    • Eu Rohs Directive : Compliant By Exemption
    • Nema Degree Of Protection : not rated (open device)
    • Nema Size : 4
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
  • General Attributes
    • Phase : 3 phase
    • Product Or Component Type : starter
    • Range Of Product : TeSys N
  • Specifications
    • Country of Origin : United States
