NEMA Motor Starter, Type S, nonreversing, Size 0, 18A, 5 HP at 460 VAC, 5 kA SCCR, 3 phase, 3 pole, melting alloy, 24 VAC coil, open [TAA]

STARTER 600VAC 18AMP NEMA +OPT

SQD8536SBO2V01S 8536SBO2V01S 785901455981
529.06 / EACH
http://schema.org/OutOfStock

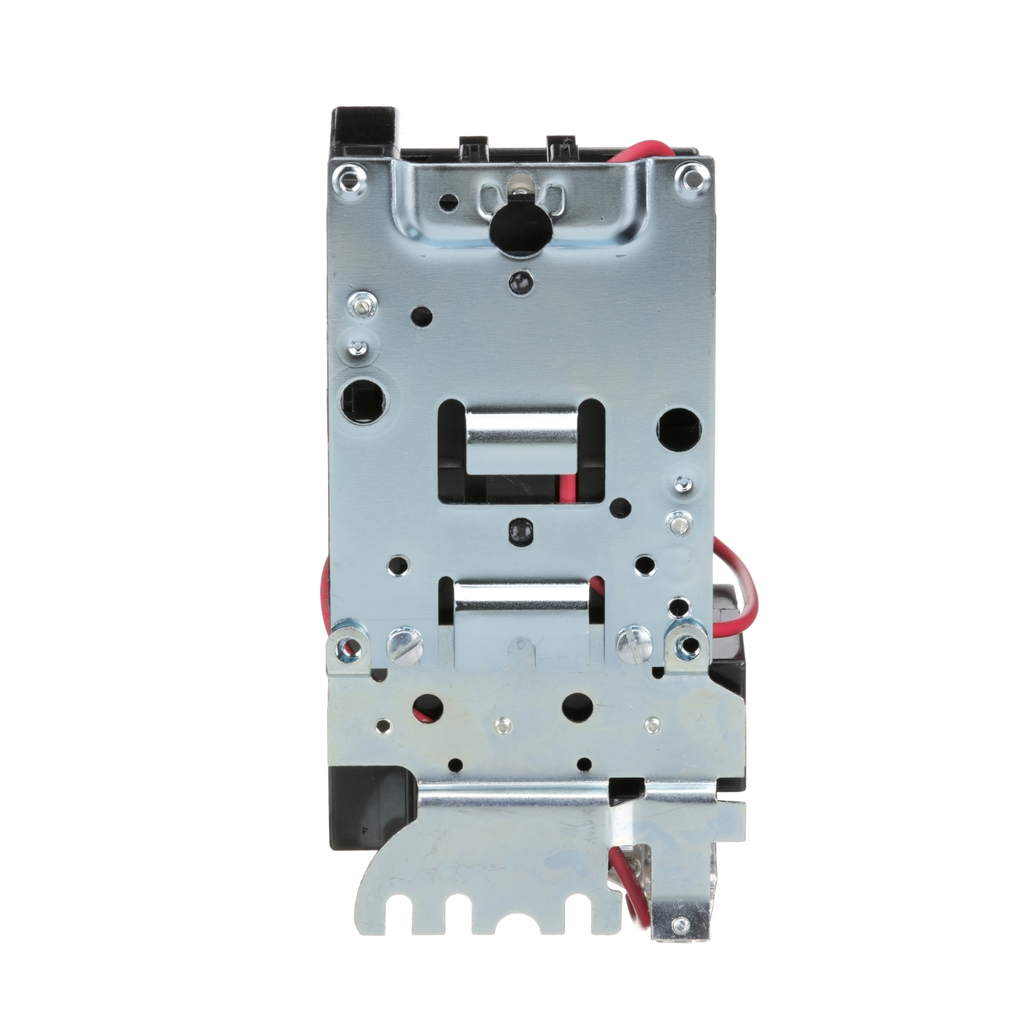

Mayer-DDS-NEMA Motor Starter, Type S, nonreversing, Size 0, 18A, 5 HP at 460 VAC, 5 kA SCCR, 3 phase, 3 pole, melting alloy, 24 VAC coil, open [TAA]-2
  • Depth: 107 mm
  • Height: 172 mm
  • Warranty Length: 18 mth
  • Width: 89 mm
Type S NEMA motor starters are used for full voltage starting and stopping of AC squirrel cage motors. Type S motor starters have ratings up to 810 amperes. This 3 pole NEMA Size 0 non-reversing starter has an 18 ampere rating. NEMA Size 0 motor starters have 3 phase ratings of 3 HP at 200 and 230 VAC and 5 HP at 460 and 575 VAC. This non-reversing NEMA motor starter has a melting alloy type overload relay that uses Type B thermal units to sense over current conditions. This NEMA starter has a 5 kA maximum SCCR (Short Circuit Current Rating) per UL508A when protected by an appropriate circuit breaker or fuse. Type S motor starters are available with replaceable coils in a wide variety of voltages. This starter has a 24 VAC 60 Hz operating coil wired for separate control. This NEMA starter is an open device without an enclosure. This starter is 6.77 inches tall, 3.50 inches wide and 4.22 inches deep. A wide variety of accessories are available for Type S starters. Type S non-reversing NEMA motor starters are UL listed and CSA certified.
QTY
  • Product Description
  • Features
  • Specifications
Type S NEMA motor starters are used for full voltage starting and stopping of AC squirrel cage motors. Type S motor starters have ratings up to 810 amperes. This 3 pole NEMA Size 0 non-reversing starter has an 18 ampere rating. NEMA Size 0 motor starters have 3 phase ratings of 3 HP at 200 and 230 VAC and 5 HP at 460 and 575 VAC. This non-reversing NEMA motor starter has a melting alloy type overload relay that uses Type B thermal units to sense over current conditions. This NEMA starter has a 5 kA maximum SCCR (Short Circuit Current Rating) per UL508A when protected by an appropriate circuit breaker or fuse. Type S motor starters are available with replaceable coils in a wide variety of voltages. This starter has a 24 VAC 60 Hz operating coil wired for separate control. This NEMA starter is an open device without an enclosure. This starter is 6.77 inches tall, 3.50 inches wide and 4.22 inches deep. A wide variety of accessories are available for Type S starters. Type S non-reversing NEMA motor starters are UL listed and CSA certified.
  • Prop 65
    • "WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov"
  • Environment
    • Product Certifications : UL Listed || CSA || NEMA
    • Nema Degree Of Protection : not rated (open device)
  • Contractual warranty
    • Warranty : 18 months
  • Environmental data
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • California Proposition 65 : "WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov"
    • Take-Back : No
    • Pvc Free : Yes
  • Complementary
    • Thermal Overload Type : melting alloy 3
    • Height : 172 mm
    • Auxiliary Contact Composition : without
    • Nema Size : 0
    • [Uc] Control Circuit Voltage : 24 V AC 60 Hz
    • Rated Power In Hp : 3 HP 200 V AC || 3 HP 230 V AC || 5 HP 460 V AC || 5 HP 575 V AC
    • Control Type : no control units
    • Phase : 3 phase
    • Local Signalling : without pilot light
    • Poles Description : 3P
    • Electrical Connection : screw clamp terminals
    • Line Rated Current : 18 A
    • Control Circuit : separate control circuit
    • Width : 89 mm
    • Depth : 107 mm
    • [Ue] Rated Operational Voltage : 600 V AC
  • Specifications
    • Country of Origin : Mexico
    • Width : 89 mm
    • Height : 172 mm
    • Range Of Product : S
    • Product Or Component Type : motor starter
    • Motor Starter Type : non reversing
