SQUARE D

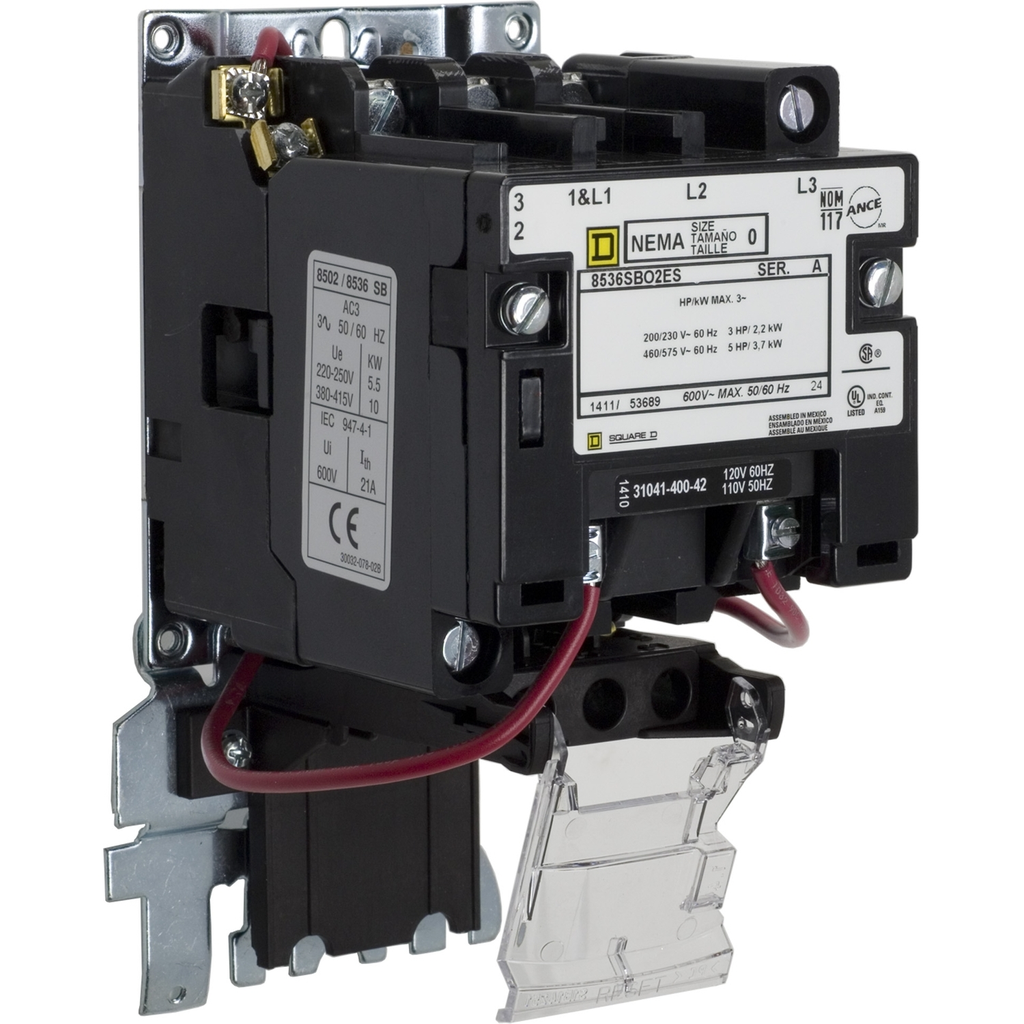

NEMA Motor Starter, Type S, nonreversing, Size 0, 18A, 5 HP at 460 VAC, up to 65 kA SCCR, 3 phase, 3 pole, bimetal, 120 VAC coil, open [TAA]

STARTER 600VAC 18AMP NEMA +OPT

SQD8536SBO2V02ES 8536SBO2V02ES 785901536895
541.96 / EA
http://schema.org/OutOfStock
Mayer-DDS-NEMA Motor Starter, Type S, nonreversing, Size 0, 18A, 5 HP at 460 VAC, up to 65 kA SCCR, 3 phase, 3 pole, bimetal, 120 VAC coil, open [TAA]-1
  • Country of Origin: Mexico
  • Depth: 4.21 in
  • Height: 4.33 in
  • Warranty Length: 18 mth
  • Width: 3.23 in
Type S NEMA motor starters are used for full voltage starting and stopping of AC squirrel cage motors. Type S motor starters have ratings up to 810 amperes. This 3 pole NEMA Size 0 non-reversing starter has an 18 ampere rating. NEMA Size 0 motor starters
QTY
  • Product Description
  • Features
  • Specifications
Type S NEMA motor starters are used for full voltage starting and stopping of AC squirrel cage motors. Type S motor starters have ratings up to 810 amperes. This 3 pole NEMA Size 0 non-reversing starter has an 18 ampere rating. NEMA Size 0 motor starters
  • Uc Control Circuit Voltage
    • 110 V AC 50 Hz
    • 120 V AC 60 Hz
  • Rated Power In Hp
    • 3 HP 200 V AC
    • 3 HP 230 V AC
    • 5 HP 460 V AC
    • 5 HP 575 V AC
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Ue Rated Operational Voltage
    • 600 V AC
  • Accessories
    • 9999SPL28G
    • 9999SP28R
    • 9999RR04
    • 9999SX6
    • 9999SX7
    • 9999SX8
    • 9999SPL28R
    • 9999SC8
    • 9999AC04
  • Product Certifications
    • UL Listed
    • CSA
    • NEMA
  • Complementary Attributes
    • Control Circuit : separate control circuit
    • Line Rated Current : 18 A
  • Important Information Attributes
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-05-30
    • Legacy Weee Scope : In
    • Weee Product Category : 5
    • Scope Perimeter : Outside of Europe
    • Rohs Eur In Scope : Yes
    • Rohs Eur Status : Will not be Compliant
    • Rohs Eur Full Compliance Status : Not compliant
    • China Rohs In Scope : No
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • Wd Status : A - SELECTED - PCE ONLY (Migration)
    • Control Type : no control units
    • Electrical Connection : screw clamp terminals
    • Local Signalling : without pilot light
    • Motor Starter Type : non reversing
    • Package Weight Lbs : 1.574 kg
    • Phase : 3 phase
    • Poles Description : 3P
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : motor starter
    • Range Of Product : S
    • Returnability : Yes
    • Sustainable Packaging : Yes
    • Thermal Overload Type : IEC adapted Bi-metal
    • Relationshiptype : Compatible relationship
  • General Attributes
    • Phase : 3 phase
    • Product Or Component Type : motor starter
    • Range Of Product : S
  • Environment Attributes
    • Take Back : No
    • China Rohs Regulation : Product out of China RoHS scope. Substance declaration for your information.
    • Eu Rohs Directive : Not compliant
    • Nema Degree Of Protection : not rated (open device)
    • Nema Size : 0
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : Mexico
    • Height : 4.33 in
    • Width : 3.23 in
    • Compliance : TAA
    • Depth : 4.21 in
