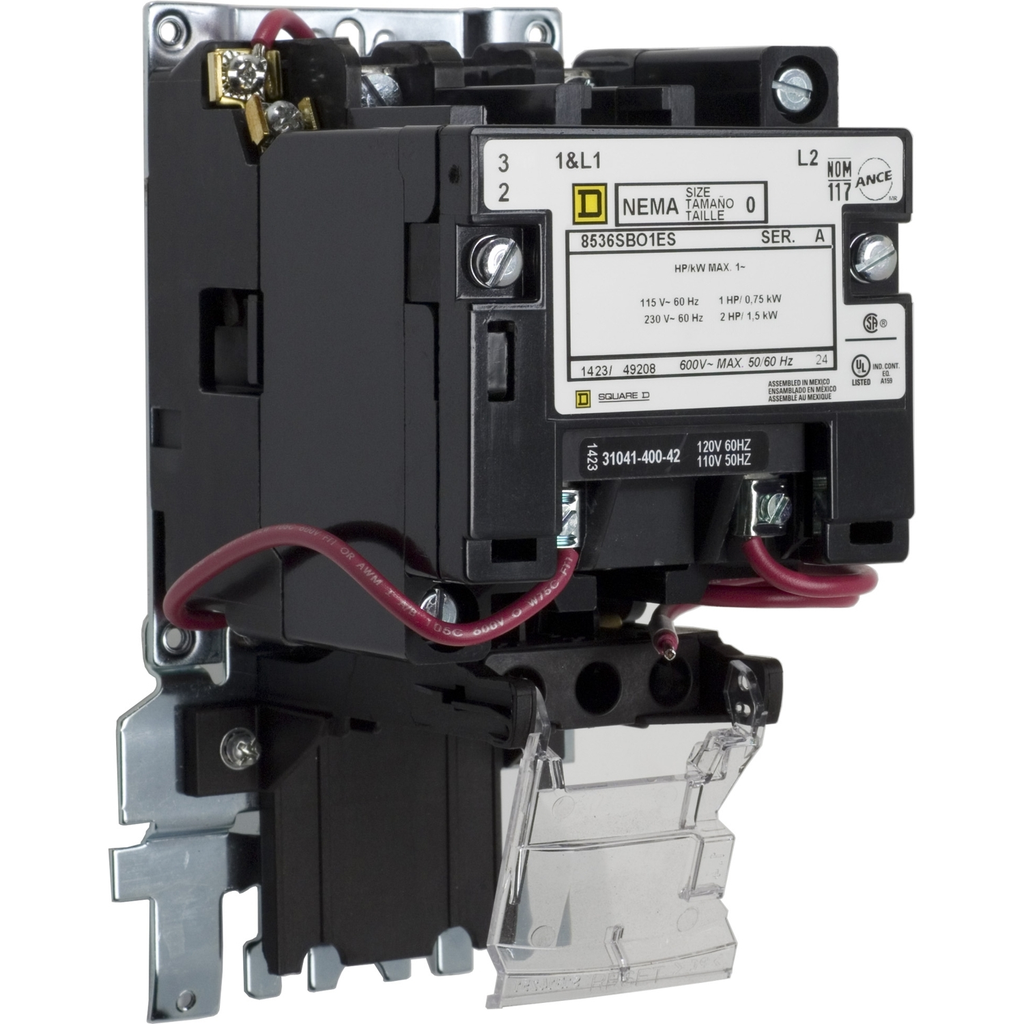

NEMA Motor Starter, Type S, nonreversing, Size 0, 18A, 2 HP at 230 VAC, up to 65 kA SCCR, 1 phase, 2 pole, bimetal, 120 VAC coil, open [TAA]

STARTER 600VAC 18AMP NEMA +OPT

SQD8536SBO1V02ES 8536SBO1V02ES 785901492085
476.70 / EA
http://schema.org/OutOfStock
Mayer-DDS-NEMA Motor Starter, Type S, nonreversing, Size 0, 18A, 2 HP at 230 VAC, up to 65 kA SCCR, 1 phase, 2 pole, bimetal, 120 VAC coil, open [TAA]-1
  • Country of Origin: USA
  • Depth: 107 mm
  • Height: 110 mm
  • Warranty Length: 18 mth
  • Width: 82 mm
Type S NEMA motor starters are used for full voltage starting and stopping of AC squirrel cage motors. Type S motor starters have ratings up to 810 amperes. This 2 pole NEMA Size 0 non-reversing starter has an 18 ampere rating. This NEMA Size 0 motor starter has single phase ratings of 1 HP at 115 VAC and 2 HP at 230 VAC. This non-reversing NEMA motor starter has an adapted bimetallic overload relay to sense over current conditions. This NEMA starter has a 65 kA maximum SCCR (Short Circuit Current Rating) per UL508A when protected by an appropriate circuit breaker or fuse. Type S motor starters are available with replaceable coils in a wide variety of voltages. This starter has a 110/120 VAC 50/60 Hz operating coil wired for separate control. This NEMA starter is an open device without an enclosure. This starter is 6.77 inches tall, 3.50 inches wide and 4.22 inches deep. A wide variety of accessories are available for Type S starters. Type S non-reversing NEMA motor starters are UL listed and CSA certified.
QTY
  • Product Description
  • Features
  • Specifications
Type S NEMA motor starters are used for full voltage starting and stopping of AC squirrel cage motors. Type S motor starters have ratings up to 810 amperes. This 2 pole NEMA Size 0 non-reversing starter has an 18 ampere rating. This NEMA Size 0 motor starter has single phase ratings of 1 HP at 115 VAC and 2 HP at 230 VAC. This non-reversing NEMA motor starter has an adapted bimetallic overload relay to sense over current conditions. This NEMA starter has a 65 kA maximum SCCR (Short Circuit Current Rating) per UL508A when protected by an appropriate circuit breaker or fuse. Type S motor starters are available with replaceable coils in a wide variety of voltages. This starter has a 110/120 VAC 50/60 Hz operating coil wired for separate control. This NEMA starter is an open device without an enclosure. This starter is 6.77 inches tall, 3.50 inches wide and 4.22 inches deep. A wide variety of accessories are available for Type S starters. Type S non-reversing NEMA motor starters are UL listed and CSA certified.
  • Prop 65
    • "WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov"
  • Environment
    • Product Certifications : UL Listed || CSA || NEMA
    • Nema Degree Of Protection : not rated (open device)
  • Contractual warranty
    • Warranty : 18 months
  • Environmental data
    • China Rohs Regulation : Product out of China RoHS scope. Substance declaration for your information.
    • Take-Back : No
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Pvc Free : Yes
    • California Proposition 65 : "WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov"
  • Complementary
    • Local Signalling : without pilot light
    • Thermal Overload Type : IEC adapted Bi-metal 1
    • Height : 110 mm
    • Auxiliary Contact Composition : without
    • Nema Size : 0
    • [Uc] Control Circuit Voltage : 110 V AC 50 Hz || 120 V AC 60 Hz
    • Poles Description : 2P
    • Rated Power In Hp : 1 HP 115 V AC || 2 HP 230 V AC
    • Electrical Connection : screw clamp terminals
    • Line Rated Current : 18 A
    • Control Type : no control units
    • Control Circuit : common control circuit
    • Width : 82 mm
    • Depth : 107 mm
    • Phase : 1 phase
    • [Ue] Rated Operational Voltage : 600 V AC
  • Specifications
    • Country of Origin : United States
    • Width : 82 mm
    • Height : 110 mm
    • Motor Starter Type : non reversing
    • Range Of Product : S
    • Product Or Component Type : motor starter
