SQUARE D

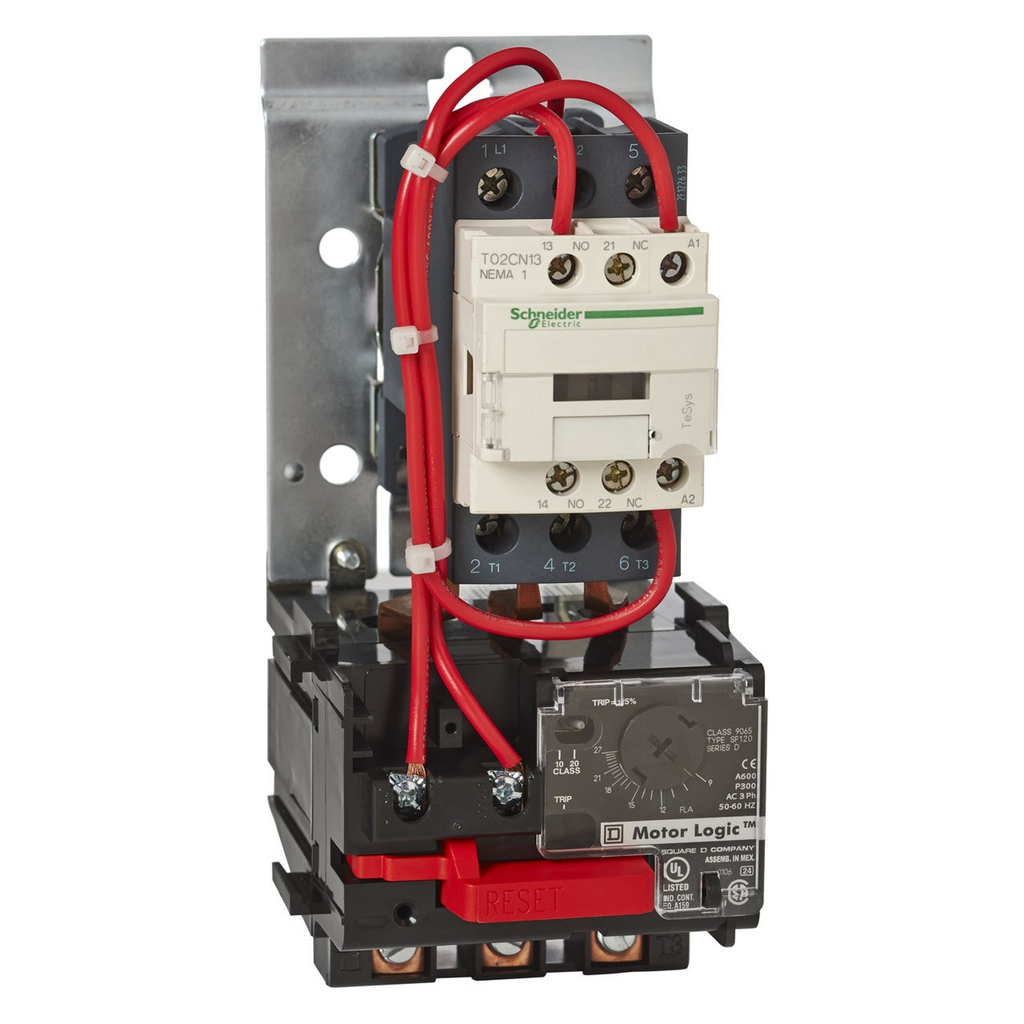

Motor Starter, TeSys NEMA, nonreversing, Size 00, 9A, 3 pole, HP rated, Motor Logic SSOLR, 120 VAC 60 Hz coil, open

OPEN STARTER NEMA SZ00 3P 120V

SQDT36AN13G7 T36AN13G7 SQDT36AN13G7
342.61 / EA
http://schema.org/OutOfStock
Mayer-DDS-Motor Starter, TeSys NEMA, nonreversing, Size 00, 9A, 3 pole, HP rated, Motor Logic SSOLR, 120 VAC 60 Hz coil, open-1
  • Country of Origin: USA
TeSys N contactors and starters conform to NEMA ICS2 standards. The NEMA size is printed directly on the face of the contactor. The 3 pole NEMA size 00 motor starter has a 9 amperage continuous current rating. It also has ratings of 1.5 HP at 200 to 230 Vac and 2 HP at 460 and 575 VAC poly phase. This motor starter has a Motor Logic solid state overload relay with a Class 10/20 rating. The overload is adjustable from 3 to 9 amperes. The starter has a 120 VAC replaceable coil with common control. Starter has 1 normally open and 1 normally closed auxiliary contact. This starter is not in an enclosure. Motor starter is UL listed and CSA Certified.
QTY
  • Product Description
  • Features
  • Specifications
TeSys N contactors and starters conform to NEMA ICS2 standards. The NEMA size is printed directly on the face of the contactor. The 3 pole NEMA size 00 motor starter has a 9 amperage continuous current rating. It also has ratings of 1.5 HP at 200 to 230 Vac and 2 HP at 460 and 575 VAC poly phase. This motor starter has a Motor Logic solid state overload relay with a Class 10/20 rating. The overload is adjustable from 3 to 9 amperes. The starter has a 120 VAC replaceable coil with common control. Starter has 1 normally open and 1 normally closed auxiliary contact. This starter is not in an enclosure. Motor starter is UL listed and CSA Certified.
  • Prop 65
    • WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
  • Environmental data
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : No
    • Mercury Free : Yes
    • Packaging Without Single Use Plastic : No
    • California Proposition 65 : WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
    • Reach Free Of Svhc : Yes
    • Take-Back : No
    • Eu Rohs Directive : Compliant with Exemptions
  • Specifications
    • Country of Origin : United States
    • Product Certifications : UL Listed || CSA
    • Thermal Overload Type : solid state Motor Logic class 10/20 3-9 A
    • [Uc] Control Circuit Voltage : 120 V AC
    • Auxiliary Contact Composition : 1 NO + 1 NC
    • Range Of Product : TeSys N
    • Nema Size : 00
    • Rated Power In Hp : 1.5 HP 200 V AC || 1.5 HP 230 V AC || 2 HP 460 V AC || 2 HP 575 V AC
    • Electrical Connection : screw clamp terminals
    • Product Or Component Type : starter
    • Phase : 3 phase
    • Motor Starter Type : non reversing
    • Nema Degree Of Protection : not rated (open device)
    • Poles Description : 3P
    • Line Rated Current : 9 A
    • Control Circuit : common control circuit
    • [Ue] Rated Operational Voltage : 600 V AC
