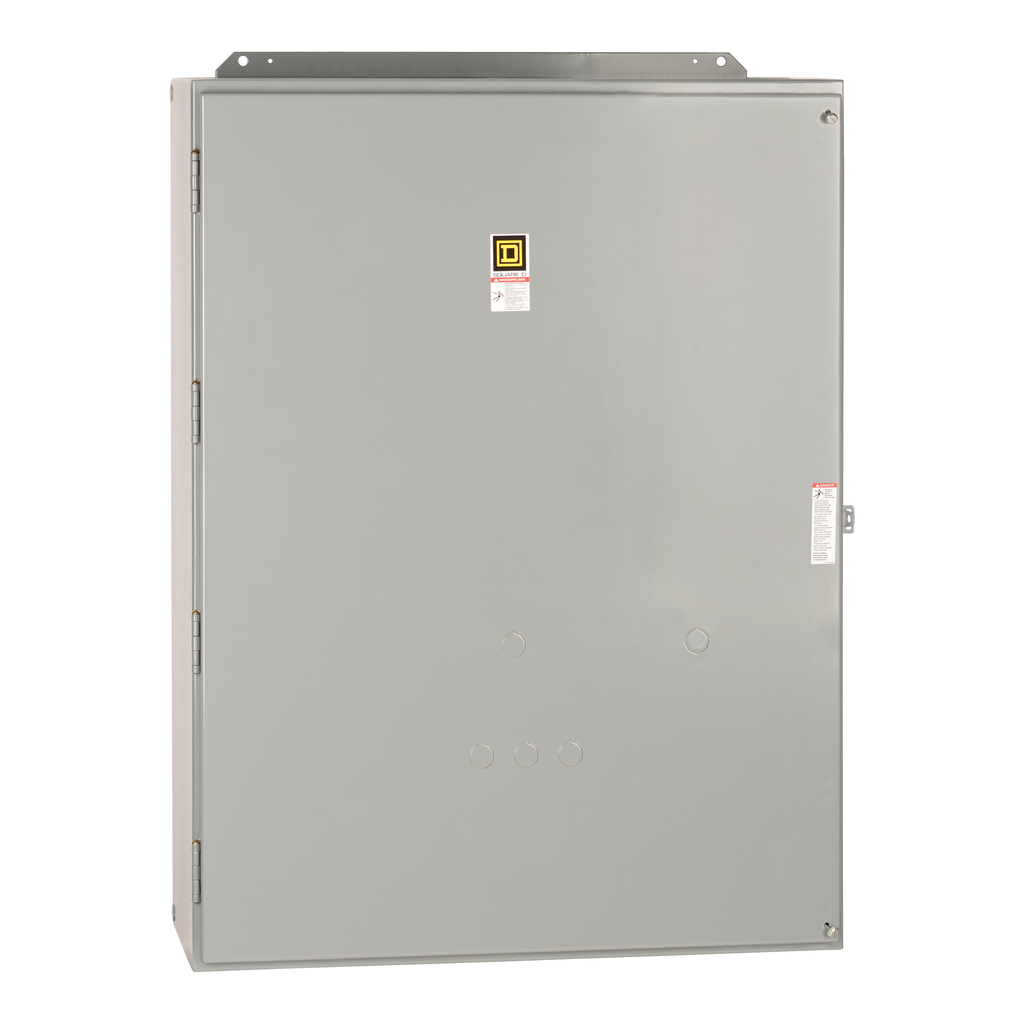

NEMA Contactor, Type S, reversing, horizontal, Size 5, 270A, 200 HP at 575 VAC, 3 phase, up to 100 kA, 3 pole, 240 VAC coil, NEMA 1

NEMA Contactor, Type S, revers

SQD8702SGG3V03 8702SGG3V03 3606482141094
14945.31 / EA
http://schema.org/OutOfStock
Mayer-DDS-NEMA Contactor, Type S, reversing, horizontal, Size 5, 270A, 200 HP at 575 VAC, 3 phase, up to 100 kA, 3 pole, 240 VAC coil, NEMA 1-1
  • Certifications: CSA, UL Listed
  • Depth: 325.37 mm
  • Height: 1173.99 mm
  • Line Rated Current: 270 A
  • NEMA: 5
  • Number of Phases: 3
  • Warranty Length: 18 mth
  • Width: 894.59 mm
QTY
  • Specifications
  • Environment
    • Product Certifications : UL Listed || CSA
    • Nema Degree Of Protection : NEMA 1 painted sheet steel
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • Eu Rohs Directive : Not compliant
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Complementary
    • Local Signalling : no indicator
    • Height : 1173.99 mm
    • Nema Size : 5
    • [Uc] Control Circuit Voltage : 220 V AC 50 Hz || 240 V AC 60 Hz
    • Poles Description : 3P
    • Rated Power In Hp : 75 HP 200 V AC || 100 HP 230 V AC || 200 HP 460 V AC || 200 HP 575 V AC
    • Electrical Connection : screw clamp terminals
    • Provided Equipment : fuse not supplied
    • Line Rated Current : 270 A
    • Condition Of Use : horizontal
    • Control Type : no control units
    • Control Circuit : common control circuit
    • Width : 894.59 mm
    • Depth : 325.37 mm
    • Phase : 3 phase
    • Wiring Mode : 3 wires
    • [Ue] Rated Operational Voltage : 600 V AC
  • Specifications
    • Range Of Product : type S
    • Contactor Application : reversing
    • Product Or Component Type : contactor
