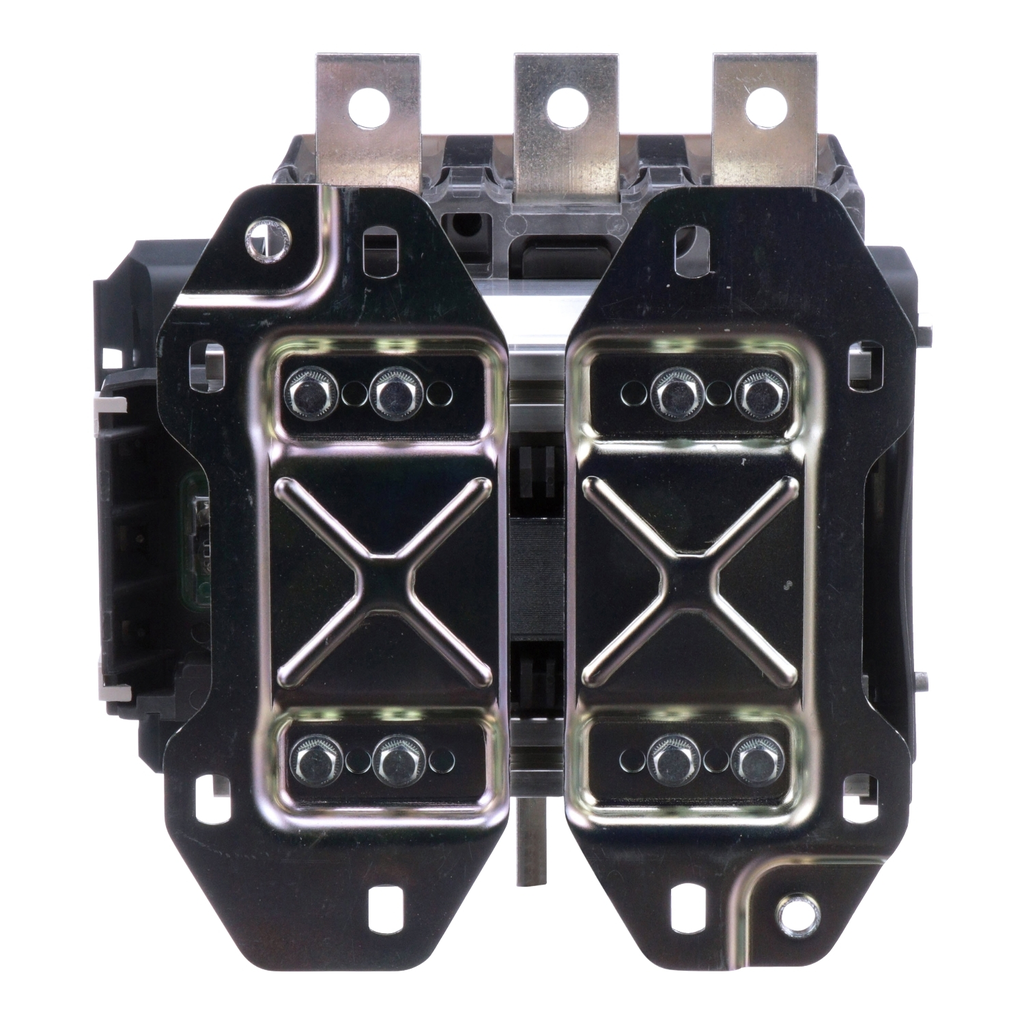

NEMA Contactor, TeSys N, nonreversing, Size 6, 540A, 400HP at 460VAC, 3 pole, 3 phase, 120VAC 50/60Hz coil, open

NEMA Contactor, TeSys N, nonre

SQDT02HN13F7 T02HN13F7 SQDT02HN13F7
14341.73 / EA
http://schema.org/OutOfStock
NEMA Contactor, TeSys N, nonreversing, Size 6, 540A, 400HP at 460VAC, 3 pole, 3 phase, 120VAC 50/60Hz coil, open
  • Country of Origin: USA
TeSys N contactors and starters conform to NEMA ICS2 standards. The NEMA size is printed directly on the face of the contactor. This 3 pole NEMA size 6 nonreversing contactor mounts on 35mm DIN rail and has a 540 amperage continuous current rating. The contactor has ratings of 150 HP at 200, 200 HP at 230 VAC and 400 HP at 460 and 575 VAC poly phase. The nonreversing contactor is wired for common control with a 120 VAC 50/60 Hz replaceable coil. Contactor has 1 normally open auxiliary contact. This contactor is not in an enclosure. This contactor is 8.90 inches tall, 9.37 inches wide and 9.17 inches deep. It weighs 25.83 lbs. The screw clamp terminals will accept control wires from 16 AWG to 12 AWG. This TeSys N contactor is UL listed and CSA Certified.
QTY
  • Product Description
  • Features
  • Specifications
TeSys N contactors and starters conform to NEMA ICS2 standards. The NEMA size is printed directly on the face of the contactor. This 3 pole NEMA size 6 nonreversing contactor mounts on 35mm DIN rail and has a 540 amperage continuous current rating. The contactor has ratings of 150 HP at 200, 200 HP at 230 VAC and 400 HP at 460 and 575 VAC poly phase. The nonreversing contactor is wired for common control with a 120 VAC 50/60 Hz replaceable coil. Contactor has 1 normally open auxiliary contact. This contactor is not in an enclosure. This contactor is 8.90 inches tall, 9.37 inches wide and 9.17 inches deep. It weighs 25.83 lbs. The screw clamp terminals will accept control wires from 16 AWG to 12 AWG. This TeSys N contactor is UL listed and CSA Certified.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
  • Electrical Connection
    • lugs ordered separately
  • UC Control Circuit Voltage
    • 120 V AC
  • Accessories
    • LADN11
    • LADN20
    • LADN02
    • LADN22
    • LADN13
    • LADN40
    • LADN04
    • LADN31
    • LAD8N11
    • LAD8N20
  • Maximum Horse Power Rating
    • 150 hp 200 V AC
    • 200 hp 230 V AC
    • 400 hp 460 V AC
    • 400 hp 575 V AC
  • Market Segmentation
    • Commercial
    • Industrial
  • Persona Type Names
    • End User
    • Contractor
    • Original Equipment Manufacturer
    • OEM - Control Panelbuilder
    • Panel Builder
  • Persona Type Ids
    • EU
    • LC
    • OM
    • OM8
    • PB
  • Market Segmentation Id
    • COMMERCIAL
    • INDUSTRIAL
  • UE Rated Operational Voltage
    • 600 V AC
  • Assets
    • CAD : https://download.schneider-electric.com/files?p_Doc_Ref=T02HN13F7_CAD
  • Important Information Attributes
    • B2B Bullet Point 1 : High density, space saving design
    • B2B Bullet Point 2 : Sizes 00 -2 are DIN rail and panel mountable
    • B2B Bullet Point 3 : Replacing coils requires no tools
    • B2B Bullet Point 4 : Common accessories across range
    • B2B Bullet Point 5 : UL Listed, CSA certified, and CE marked
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-11-13
    • Device Type : LV equipment - LV contactor
    • Serviceability : No
    • Traceability : No
    • Field Service Division : PPIBS
    • Average Life Duration : 20 year(s)
    • Legacy WEEE Scope : In
    • WEEE Product Category : 5
    • Scope Perimeter : Outside of Europe
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : Yes
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Conformity Date : 2022
    • ROHS EUR Full Compliance Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
    • China ROHS In Scope : Yes
    • China ROHS Label : 7
    • With Recycled Cardboard : No
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : N
    • Tier Id : 2
    • Tier : 2
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Contactor Application : non-reversing
    • Energy Efficiency Optimized : False
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : contactor
    • Range Of Product : TeSys N
    • Returnability : No
    • Sustainable Packaging : No
    • Relationship Type : Compatible relationship
    • Nbr Of Units In Pkg : 1
    • Warranty In Months : 18
  • General Attributes
    • Product Or Component Type : contactor
    • Range Of Product : TeSys N
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=465372368&lang=en-us
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Mercury Free : Yes
    • EU ROHS Directive : Compliant with Exemptions
    • Nema Size : 6
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
  • Specifications
    • Country of Origin : United States
