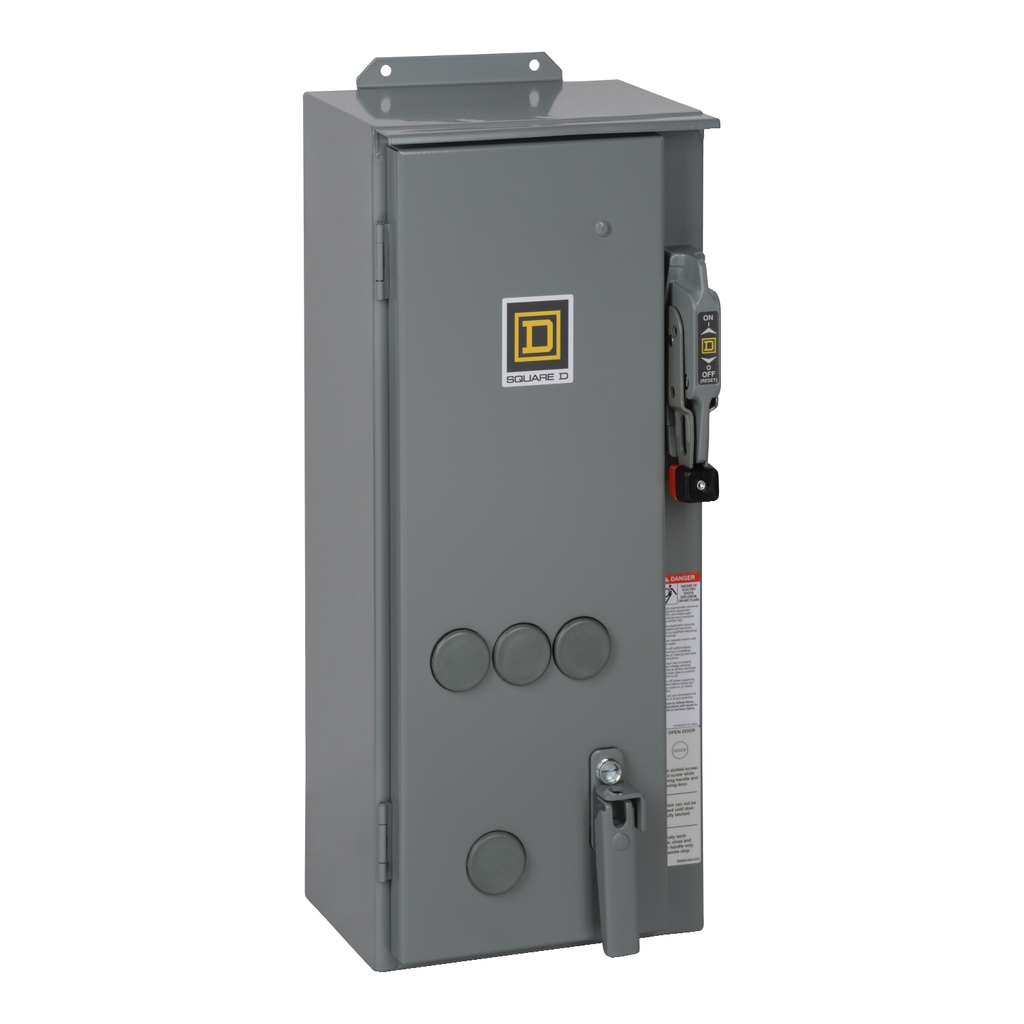

NEMA Combination Starter, Type S, 30A fusible disconnect, Size 1, 27A, 10HP at 600VAC polyphase, 120VAC coil, NEMA 12 [TAA]

NEMA COMBINATION STARTER, TYPE

SQD8538SCA24V02S 8538SCA24V02S 785901748427
1876.04 / EACH
http://schema.org/OutOfStock
Mayer-DDS-NEMA Combination Starter, Type S, 30A fusible disconnect, Size 1, 27A, 10HP at 600VAC polyphase, 120VAC coil, NEMA 12 [TAA]-1
  • Warranty Length: 18 mth
Type S nonreversing fusible and nonfusible combination starters are for motor control applications. Combination starters combine the requirements for motor overload and short circuit protection into one package. This NEMA Size 1 starter has a rating of up to 10HP at 600VAC three phase. This fusible combination starter has 30 ampere Class H and K fuse clips. This 3 pole starter is for three phase applications. Combination starters are available with a wide variety of replaceable coil voltages. Starter has a 120VAC 60 Hz operating coil wired for separate control. This nonreversing NEMA combination starter has a melting alloy type overload relay which uses Type B thermal units to sense over current conditions. A NEMA 3R/12 dusttight enclosure is used to protect this starter. A wide variety of accessories are available for Type S starters. This combination starter is supplied with a separate control unit. Type S combination starters are UL listed and CSA certified.
QTY
  • Product Description
  • Features
  • Specifications
Type S nonreversing fusible and nonfusible combination starters are for motor control applications. Combination starters combine the requirements for motor overload and short circuit protection into one package. This NEMA Size 1 starter has a rating of up to 10HP at 600VAC three phase. This fusible combination starter has 30 ampere Class H and K fuse clips. This 3 pole starter is for three phase applications. Combination starters are available with a wide variety of replaceable coil voltages. Starter has a 120VAC 60 Hz operating coil wired for separate control. This nonreversing NEMA combination starter has a melting alloy type overload relay which uses Type B thermal units to sense over current conditions. A NEMA 3R/12 dusttight enclosure is used to protect this starter. A wide variety of accessories are available for Type S starters. This combination starter is supplied with a separate control unit. Type S combination starters are UL listed and CSA certified.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Complementary Attributes
    • Maximum Horse Power Rating : 10-10 hp 460 V AC, 3 phase, 10-10 hp 575 V AC, 3 phase
    • UC Control Circuit Voltage : 110 V AC 50 Hz, 120 V AC 60 Hz
    • UE Rated Operational Voltage : 600 V AC
  • Important Information Attributes
    • Persona Type Ids : EU, LC, OM, OM8, PB
    • Persona Type Names : End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
    • Market Segmentation Id : COMMERCIAL, INDUSTRIAL
    • Market Segmentation : Commercial, Industrial
    • Carbon Footprint Of The Distribution Phase A4 : 4.857881432882064, 5 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 25 kg CO2 eq., 24.692877723169946
    • Carbon Footprint Of The Installation Phase A5 : 2.455905139812946, 2 kg CO2 eq.
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 99 kg CO2 eq., 98.53536280159038
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 485 kg CO2 eq., 484.6077813342736
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-11-18
    • Legacy WEEE Scope : In
    • Scope Perimeter : Outside of Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2507019EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : Yes
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
    • China ROHS In Scope : Yes
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : N
    • WD Status : A - SELECTED - PCE ONLY (Migration)
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Control Type : no control units
    • Disconnector Device Type : fusible disconnect switch H, 30 A
    • Energy Efficiency Optimized : False
    • Local Signalling : no indicator
    • Motor Starter Type : non reversing
    • Package Weight Lbs : 16.81 kg
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : Combination Starter
    • Range Of Product : S
    • Returnability : No
    • Sustainable Packaging : Yes
    • Thermal Overload Type : melting alloy 3
    • Total Lifecycle Carbon Footprint : 615 kg CO2 eq.
    • Pep Code : ENVPEP2507019EN
    • Pep Verification Date : 2025-09-01
    • PCR Version : PEP-PCR-ed4-2021 09 06
    • PSR Version : PSR-0005-ed3.1-EN-2023 12 08
    • Type Of Verification For The Pep : Independent internal review
    • Functional Unit Description : Turn off all or part of an installation by separating the installation or part of the installation of all electrical energy or earth, for safety reasons with a rated voltage U and 3 pole 1 non-reversing combination motor controller with a fussed disconnect and solid state overload, according to the appropriate use scenario, and during the reference service life of the product of 20 years.
    • Functional Unit Unit : unit
    • Product Kit Identifier : N
    • Product Manager : STEVEN NATALE
  • Environment Attributes Main
    • EU ROHS Directive : Compliant By Exemption​, Compliant with Exemptions
    • ROHS Exemption Information : Yes
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Mercury Free : Yes
    • Carbon Footprint : 615.149808431729
    • Circularity Profile : ENVEOLI2507019EN
    • Environmental Disclosure : ENVPEP2507019EN
    • Nema Degree Of Protection : NEMA 12 painted sheet steel with external reset
    • Nema Size : 1
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2507019EN
    • Pep Verification Date : 2025-09-01
    • PCR Version : PEP-PCR-ed4-2021 09 06
    • PSR Version : PSR-0005-ed3.1-EN-2023 12 08
    • Type Of Verification For The Pep : Independent internal review
  • General Attributes
    • Product Or Component Type : Combination Starter
    • Range Of Product : S
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Compliance : TAA
