NEMA combination starter, Type S, 100A fusible disconnect, Size 3, 90A, 50HP at 600VAC, 3 phase, 3 pole, melting alloy, 120VAC coil, NEMA 1 [TAA]

COMBO STARTER 600VAC 90A NEMA

SQD8538SEG13V02S 8538SEG13V02S 785901804000
3959.64 / EACH
http://schema.org/OutOfStock

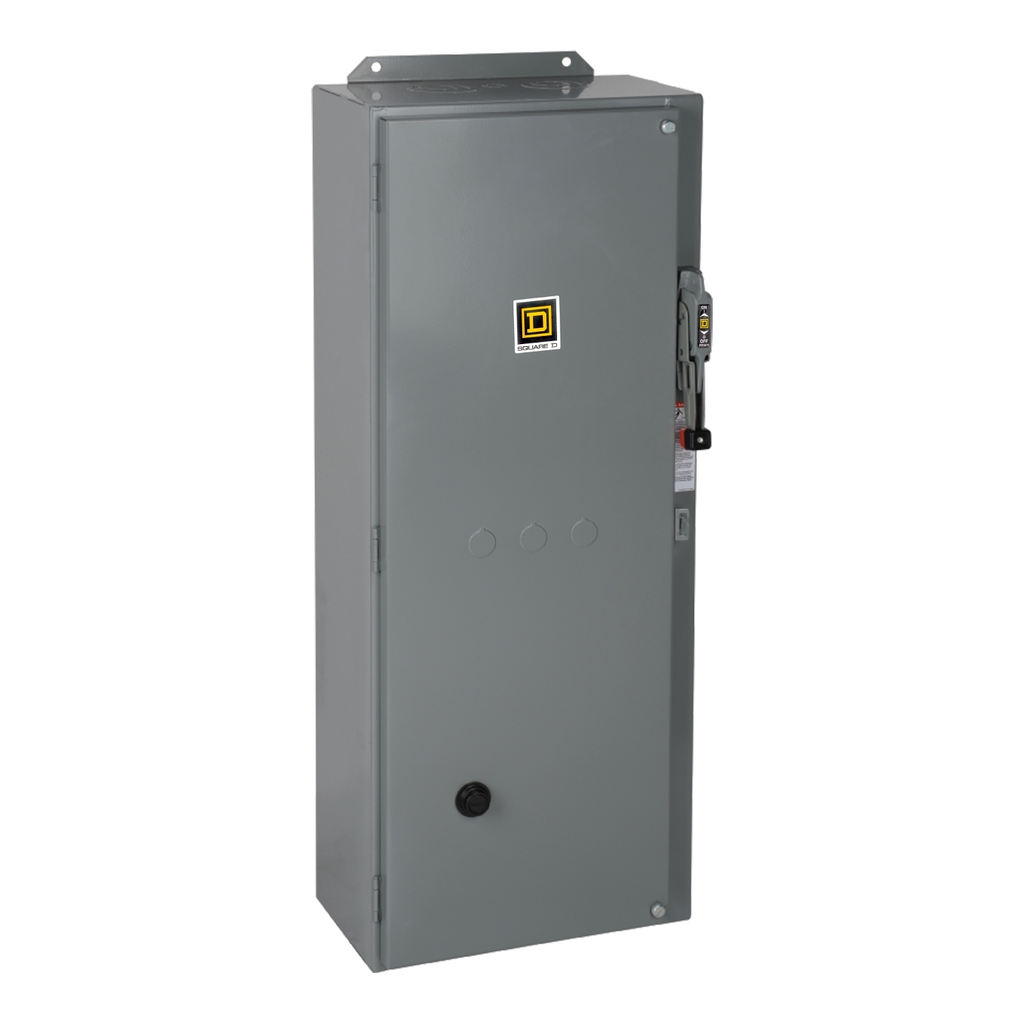

Mayer-DDS-NEMA combination starter, Type S, 100A fusible disconnect, Size 3, 90A, 50HP at 600VAC, 3 phase, 3 pole, melting alloy, 120VAC coil, NEMA 1 [TAA]-1
  • Warranty Length: 18 mth
Type S nonreversing fusible combination starters are for motor control applications. Combination starters combine the requirements for motor overload and short circuit protection into one package. NEMA Size 3 starters have ratings of up to 50 HP at 480 and 600 VAC three phase. Combination starter has 100 ampere Class H fuse clips. This 3 pole starter is for three phase applications. Combination starters are available with a wide variety of replaceable coil voltages. Starter has a 110/120 VAC 50/60 Hz operating coil wired for separate control. This nonreversing NEMA combination starter has a melting alloy type overload relay which uses Type CC thermal units to sense over current conditions. A painted sheet steel NEMA 1 general purpose enclosure is used to protect this starter. Enclosure is 42.00 inches tall, 15.25 inches wide and 10.59 inches deep. A wide variety of accessories are available for Type S starters. Type S combination starters are UL listed and CSA certified.
QTY
  • Product Description
  • Features
  • Specifications
Type S nonreversing fusible combination starters are for motor control applications. Combination starters combine the requirements for motor overload and short circuit protection into one package. NEMA Size 3 starters have ratings of up to 50 HP at 480 and 600 VAC three phase. Combination starter has 100 ampere Class H fuse clips. This 3 pole starter is for three phase applications. Combination starters are available with a wide variety of replaceable coil voltages. Starter has a 110/120 VAC 50/60 Hz operating coil wired for separate control. This nonreversing NEMA combination starter has a melting alloy type overload relay which uses Type CC thermal units to sense over current conditions. A painted sheet steel NEMA 1 general purpose enclosure is used to protect this starter. Enclosure is 42.00 inches tall, 15.25 inches wide and 10.59 inches deep. A wide variety of accessories are available for Type S starters. Type S combination starters are UL listed and CSA certified.
  • Prop 65
    • "WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov"
  • Environment
    • Nema Degree Of Protection : NEMA 1 painted sheet steel with external reset
  • Contractual warranty
    • Warranty : 18 months
  • Environmental data
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • California Proposition 65 : "WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov"
    • Take-Back : No
  • Complementary
    • Thermal Overload Type : melting alloy 3
    • Auxiliary Contact Composition : without
    • Nema Size : 3
    • Maximum Horse Power Rating : 50-50 hp 460 V AC, 3 phase || 50-50 hp 575 V AC, 3 phase
    • [Uc] Control Circuit Voltage : 110 V AC 50 Hz || 120 V AC 60 Hz
    • Disconnector Device Type : fusible disconnect switch H, 100 A
    • Motor Starter Type : non reversing
    • Local Signalling : no indicator
    • Control Type : no control units
    • Poles Description : 3P
    • [Ue] Rated Operational Voltage : 600 V AC
  • Specifications
    • Country of Origin : Mexico
    • Range Of Product : S
    • Product Or Component Type : Combination Starter
    • Control Circuit : separate control circuit
