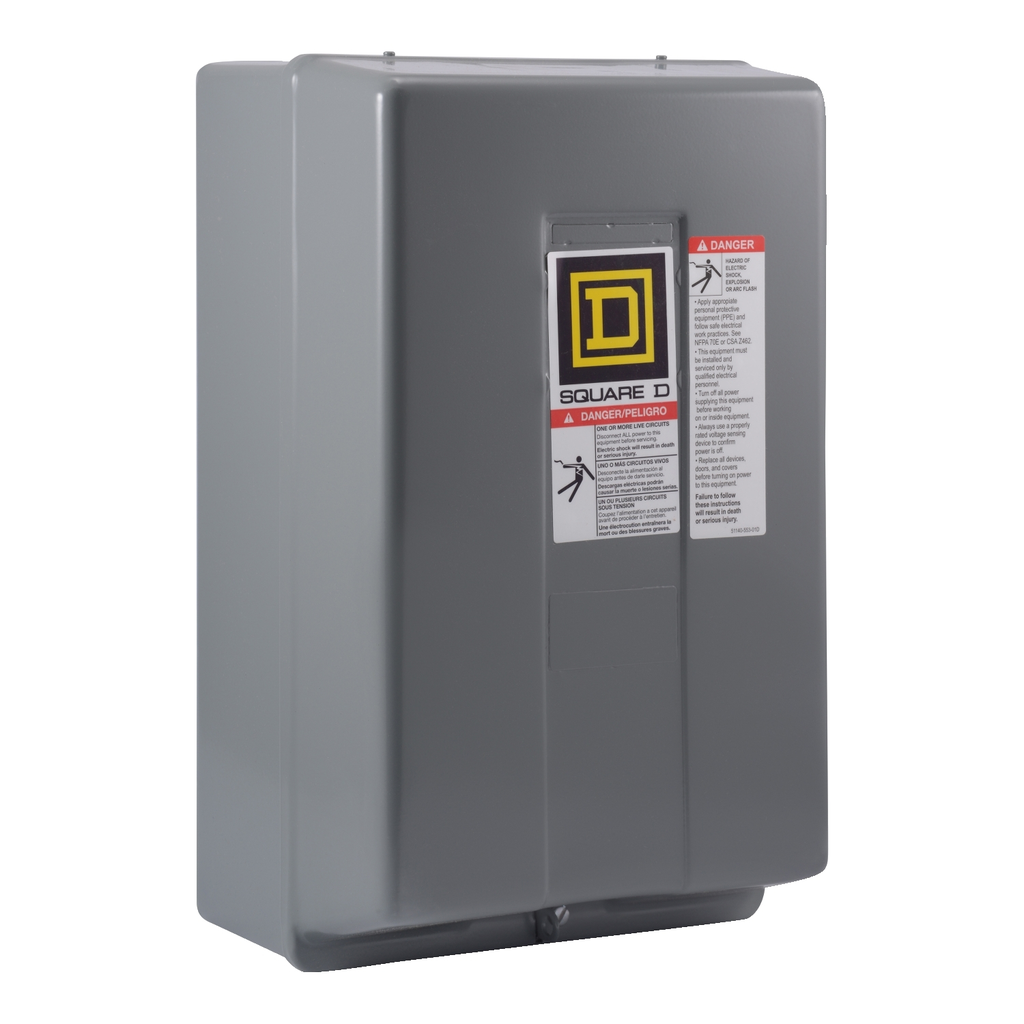

Type L multipole lighting contactors are use to manage lighting loads and to control electrical heating. 8903L lighting contactors are available in either mechanically held or electrically held versions. This is a mechanically held device. Contacts can s

• Uc Control Circuit Voltage
• 277 V AC 60 Hz
• Prop 65
• WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
• Nema Degree Of Protection
• NEMA 1 painted sheet steel surface
• Accessories
• 8903L3L
• 8903L3R
• 9999SP28R
• 9999SPL28G
• 9999SPL28R
• 9001KA2
• 9999SC2
• 9999BLX
• 9001KN260
• Market Segmentation
• Commercial
• Industrial
• Persona Type Names
• End User
• Contractor
• Original Equipment Manufacturer
• OEM - Control Panelbuilder
• Panel Builder
• Electrician
• Line Rated Current
• 20-20 A tungsten
• 30-30 A fluorescent
• Persona Type Ids
• EU
• LC
• OM
• OM8
• PB
• SC
• Poles Description
• 4P 4 NO
• Market Segmentation Id
• COMMERCIAL
• INDUSTRIAL
• Inrush Power In Va
• 25-25 VA 60 Hz
• 150-150 VA 50/60 Hz
• Product Certifications
• UL Listed
• CSA

• Complementary Attributes
• Control Circuit : separate control circuit
• Important Information Attributes
• Local Data Status : Publishable
• Local Publishable Date : 2025-05-31
• Html Descr : Lighting ContactorProduct or Component Type: Mechanically held lighting contactorControl Circuit: Separate Control CircuitControl Circuit Voltage: 277V AC 60 HzPoles Description: 4 Pole, 4 NOControl Type: No control units
• Manufacturer : Schneider Electric
• Baan Price : 1068.42
• Baan Currency : USD
• Device Type : LV equipment - LV contactor
• Serviceability : No
• Traceability : No
• Field Service Division : PPIBS
• Average Life Duration : 20 year(s)
• Legacy Weee Scope : In
• Weee Product Category : 5
• Scope Perimeter : Outside of Europe
• Eoli Availability Display : No need of specific recycling operations
• Rohs Eur In Scope : Yes
• Rohs Eur Status : Compliant
• Rohs Eur Conformity Date : 1926
• Rohs Eur Full Compliance Status : Compliant
• China Rohs In Scope : No
• China Rohs Label : 1
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• Wd Status : A - SELECTED - PCE ONLY (Migration)
• Tier Id : 2
• Tier : 2
• Function Option Id : STANDARD
• Function Option : Standard
• Additional Included Device : none
• Control Type : no control units
• Electrical Connection : screw-clamp terminals
• Halogen Free Status : Halogen free plastic parts product
• Local Signalling : no indicator
• Package Weight Lbs : 4.876 kg
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : Mechanically Held Lighting Contactor
• Range Of Product : 8903LX
• Returnability : Yes
• Sustainable Packaging : Yes
• Relationshiptype : Compatible relationship
• General Attributes
• Product Or Component Type : Mechanically Held Lighting Contactor
• Range Of Product : 8903LX
• Environment Attributes
• Take Back : No
• Reach Free Shvc : Yes
• Halogene Performance : Halogen free plastic parts product
• China Rohs Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Environmental Disclosure : ENVPEP1407018EN
• Eu Rohs Directive : Compliant
• Halogen Content Performance : Halogen free plastic parts product
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Free Of Svhc : Yes
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : Mexico
• Height : 12.68 in
• Width : 7.8 in
• Compliance : TAA
• Depth : 6.02 in
