Contactor, Type L, multipole lighting, electrically held, 30A, 12 pole, 600V, 24VAC 60Hz coil, NEMA 1 [TAA]

LIGHTING CONTACTOR 600VAC 30A

SQD8903LG1200V01 8903LG1200V01 785901022152
1466.80 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Contactor, Type L, multipole lighting, electrically held, 30A, 12 pole, 600V, 24VAC 60Hz coil, NEMA 1 [TAA]-1
  • Depth: 153 mm
  • Warranty Length: 18 mth

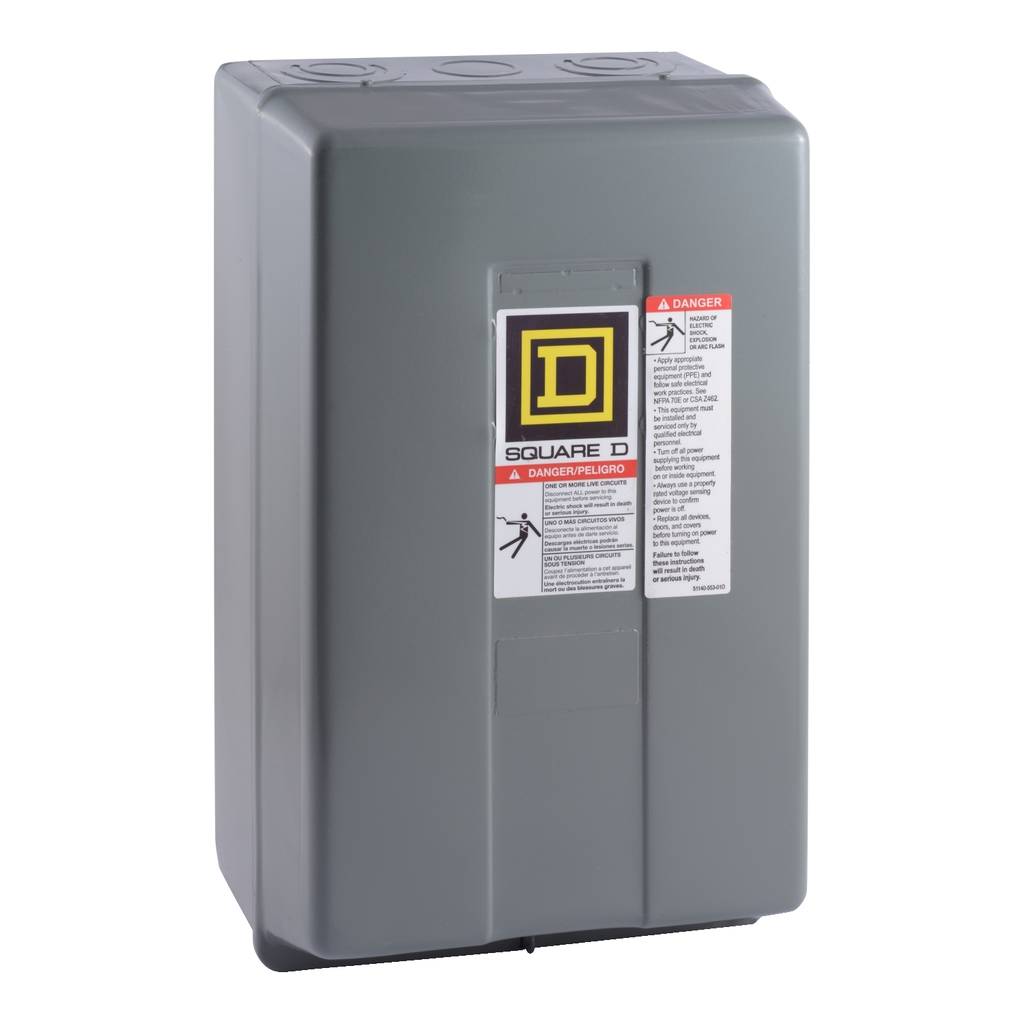

Type L multipole lighting contactors are use to manage lighting loads and to control electrical heating. 8903L lighting contactors are available in either mechanically held or electrically held versions. This is an electrically held device. Contacts can switch up to 30A fluorescent and 20A tungsten lighting loads. The contacts are field convertible from normally open to normally closed. This 12 pole device has 12 normally open contacts. Replacement contact kits are available for this lighting contactor. Interchangeable coil is available in a wide variety of common voltages up to 600 VAC. Contactor is supplied with a 24 VAC 60 Hz coil. A painted sheet steel NEMA 1 general purpose enclosure is used to protect this lighting contactor. Enclosure is 12.69 inches tall, 7.81 inches wide and 6.03 inches deep. A wide variety of accessories are available for Type L lighting contactors. 8903L lighting contactors are UL Listed and CSA Certified.
QTY
  • Product Description
  • Features
  • Specifications
Type L multipole lighting contactors are use to manage lighting loads and to control electrical heating. 8903L lighting contactors are available in either mechanically held or electrically held versions. This is an electrically held device. Contacts can switch up to 30A fluorescent and 20A tungsten lighting loads. The contacts are field convertible from normally open to normally closed. This 12 pole device has 12 normally open contacts. Replacement contact kits are available for this lighting contactor. Interchangeable coil is available in a wide variety of common voltages up to 600 VAC. Contactor is supplied with a 24 VAC 60 Hz coil. A painted sheet steel NEMA 1 general purpose enclosure is used to protect this lighting contactor. Enclosure is 12.69 inches tall, 7.81 inches wide and 6.03 inches deep. A wide variety of accessories are available for Type L lighting contactors. 8903L lighting contactors are UL Listed and CSA Certified.
  • Features
    • Electrically and mechanically held
    • Rugged design
    • Field convertible
    • Silent operation
    • This product is TAA compliant.
  • Conformance Attributes
    • Product Certifications : UL Listed, CSA
  • Complementary Attributes
    • Line Rated Current : 20-20 A tungsten, 30-30 A fluorescent
    • Control Circuit : separate control circuit
  • Important Information Attributes
    • Persona Type Ids : EU, LC, OM, OM8, PB, SC
    • Persona Type Names : End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician
    • Market Segmentation Id : COMMERCIAL, INDUSTRIAL
    • Market Segmentation : Commercial, Industrial
    • Carbon Footprint Of The Distribution Phase A4 : 4.23640824797815, 4 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 7 kg CO2 eq., 7.1924560602640515
    • Carbon Footprint Of The Installation Phase A5 : 0.6934930702185247, 0.7 kg CO2 eq.
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 39 kg CO2 eq., 38.851858751039195
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 709 kg CO2 eq., 709.2671708817472
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-11-19
    • Device Type : LV equipment - LV contactor
    • Serviceability : No
    • Traceability : No
    • Field Service Division : PPIBS
    • Average Life Duration : 20 year(s)
    • Legacy WEEE Scope : In
    • Scope Perimeter : Outside of Europe
    • EOLI Availability Display : No need of specific recycling operations
    • Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
    • Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : Yes
    • ROHS EUR Status : Compliant
    • ROHS EUR Full Compliance Status : Compliant
    • ROHS EUR Full Compliance Status Id : COMPLIANT
    • China ROHS In Scope : No
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : No
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : N
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Control Circuit : separate control circuit
    • Control Type : no control units
    • Electrical Connection : screw-clamp terminals
    • Energy Efficiency Optimized : False
    • Halogen Free Status : Halogen free plastic parts product
    • Hold In Power Consumption In VA : 35-35 VA 60 Hz
    • Inrush Power In VA : 180-180 VA 60 Hz
    • Local Signalling : no indicator
    • Package Weight Lbs : 5.103 kg
    • Poles Description : 12P 12 NO
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : Electrically Held Lighting Contactor
    • Range Of Product : 8903L
    • Returnability : No
    • Sustainable Packaging : No
    • Total Lifecycle Carbon Footprint : 760 kg CO2 eq.
    • Uc Control Circuit Voltage2 : 24 V AC 60 Hz
    • Medium Desc : Contactor, Type L, multipole lighting, electrically held, 30A, 12 pole, 600V, 24VAC 60Hz coil, NEMA 1 [TAA]
    • Stocking Flag : Y
    • Product Kit Identifier : N
    • Pep Code : ENVPEP1407018EN
    • Database Version : 2024-01
    • Pep Verification Date : 2025-10-15
    • Pcr Version : PEP-PCR-ed4-2021 09 06
    • Psr Version : PSR-0005-ed3.1-EN-2023 12 08
    • Type Of Verification For The Pep : Independent internal review
    • Data Source : extrapolated product
    • Functional Unit Description : Establish and cut off the supply of a downstream installation from an electrical and/or mechanical control characterised by the composition of the poles or type of contacts X, a rated voltage of Ue, a rated current Ie, a control circuit voltage Uc, with Np poles, and if applicable the specific specifications, in the Household/Commercial or Industrial application areas, according to the appropriate use scenario, and during the reference service life of the product of 20 years
    • Functional Unit Unit : unit
    • Energy Model Manufacturing A1 A3 2 : Electricity Mix; Low voltage; 2020; United States, US
    • Energy Model Installation A5 2 : No energy used
    • Energy Model Use B6 2 : Electricity Mix; Low voltage; 2020; United States, US
    • Energy Model End Of Life C1 C4 2 : Global, European and French datasets are used.
    • Global Commercial Status : Commercialised
    • Uc Control Circuit Voltage5 : 24 V AC 60 Hz
  • Environment Attributes Main
    • China ROHS Regulation : Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
    • EU ROHS Directive : Compliant , Compliant
    • ROHS Exemption Information : Yes
    • Take Back : No
    • Reach Free SHVC : Yes
    • Halogene Performance : Halogen free plastic parts product
    • Recycled Metal Content At Cr Level : 0 %
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Carbon Footprint : 760.2413870112471
    • Environmental Disclosure : ENVPEP1407018EN
    • Halogen Content Performance : Halogen free plastic parts product
    • Nema Degree Of Protection : NEMA 1 painted sheet steel surface
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : Yes
    • Reach Free Of SVHC : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP1407018EN
    • Pep Verification Date : 2025-10-15
    • Pcr Version : PEP-PCR-ed4-2021 09 06
    • Psr Version : PSR-0005-ed3.1-EN-2023 12 08
    • Type Of Verification For The Pep : Independent internal review
  • General Attributes
    • Product Or Component Type : Electrically Held Lighting Contactor
    • Range Of Product : 8903L
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Compliance : TAA Compliant
    • Depth : 153 mm
