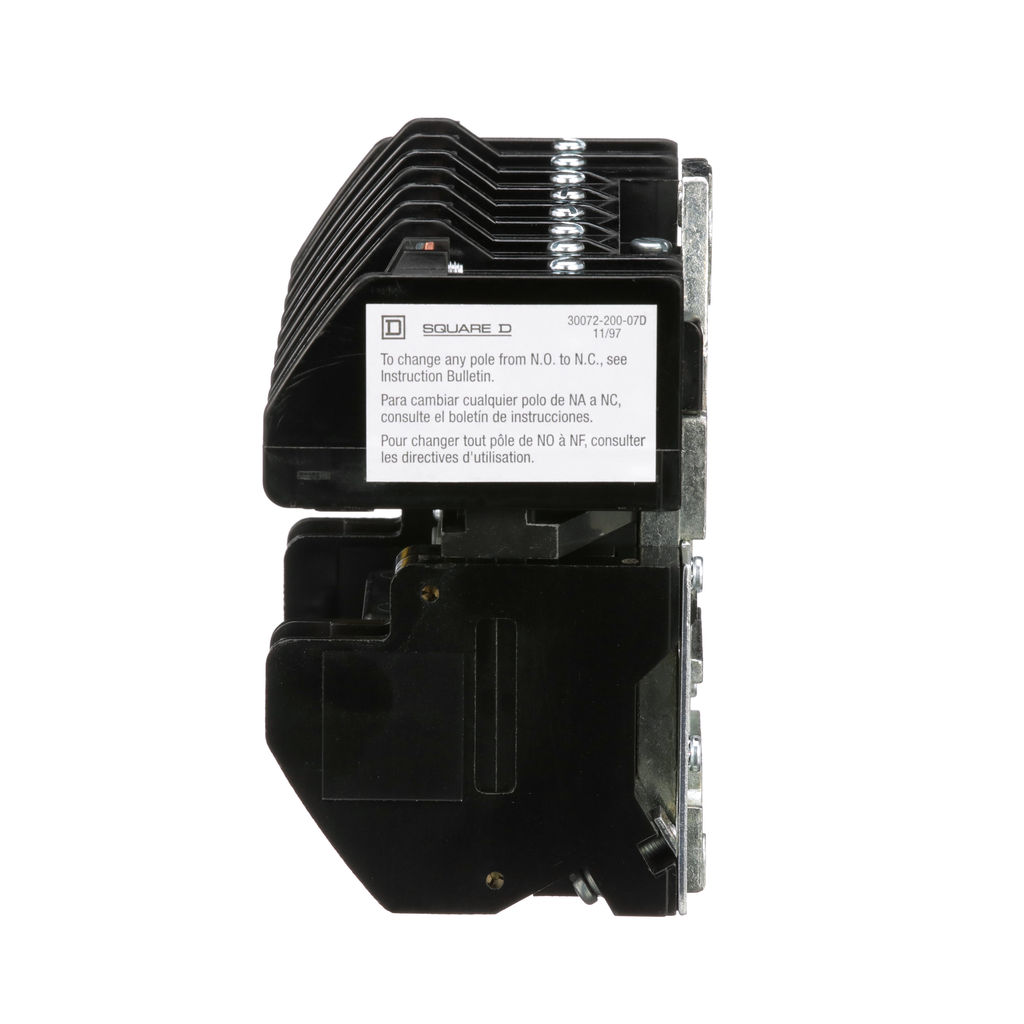

8903L electrically held lighting contactor, 10 P, 8 NO, 2 NC, 30 A, 600 V, 110/120 V 50/60 Hz coil, open

8903L electrically held lighti

SQD8903LO802V02 8903LO802V02 SQD8903LO802V02
880.90 / EA
http://schema.org/OutOfStock
Mayer-DDS-8903L electrically held lighting contactor, 10 P, 8 NO, 2 NC, 30 A, 600 V, 110/120 V 50/60 Hz coil, open-2
  • Certifications: CSA, UL Listed
  • Depth: 79 mm
  • Height: 127 mm
  • Line Rated Current: 20-20 A, 30-30 A
  • Warranty Length: 18 mth
  • Width: 143 mm
QTY
  • Specifications
  • Environment
    • Product Certifications : UL Listed || CSA
    • Nema Degree Of Protection : not rated (open device)
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • China Rohs Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
    • Circularity Profile : N/A
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP1407018EN
    • Sustainable Offer Status : Green Premium product
    • Pvc Free : Yes
    • Toxic Heavy Metal Free : Yes
    • Eu Rohs Directive : Compliant
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Halogen Content Performance : Halogen free plastic parts product
    • Reach Free Of Svhc : Yes
  • Complementary
    • Local Signalling : no indicator
    • Height : 127 mm
    • Control Type : no control units
    • [Uc] Control Circuit Voltage : 110 V AC 50 Hz || 120 V AC 60 Hz
    • Hold-In Power Consumption In Va : 35-35 VA 60 Hz || 35-35 VA 50 Hz
    • Electrical Connection : screw-clamp terminals
    • Width : 143 mm
    • Depth : 79 mm
    • Line Rated Current : 20-20 A tungsten || 30-30 A fluorescent
    • Inrush Power In Va : 180-180 VA 60 Hz || 170-170 VA 50 Hz
    • Poles Description : 8P 8 NO
  • Specifications
    • Range Of Product : 8903L
    • Control Circuit : separate control circuit
    • Product Or Component Type : Electrically Held Lighting Contactor
