TeSys T is a motor management system that provides full motor monitoring, control, and protection when used with short circuit protection and a contactor. It manages most critical processes while reducing downtime and increasing productivity as well as p

• Range Compatibility
• TeSys T LTMR motor controller
• Control Button Type
• 10 push-button
• Standards
• UL 60947-4-1A
• CSA C22.2 No 60947-4-1
• EN/IEC 61131-2
• Ip Degree Of Protection
• IP54 EN/IEC 60947-4-1 front)
• IP20 EN/IEC 60947-4-1 rear)
• Device Connection
• connection to a LTM R controller, RJ45 rear
• connection to a PC, RJ45 front
• Protective Treatment
• TC 12 humidity cycles 55 °C EN/IEC 60068-2-30
• Accessories
• LTMR08CBD
• LTMR08CFM
• LTMR08DBD
• LTMR08DFM
• LTMR08EBD
• LTMR08EFM
• LTMR08MBD
• LTMR08MFM
• LTMR08PBD
• LTMR08PFM
• Market Segmentation
• Commercial
• Industrial
• Persona Type Names
• End User
• Contractor
• Original Equipment Manufacturer
• OEM - Control Panelbuilder
• Panel Builder
• Fire Resistance
• 650 °C EN/IEC 60947-1
• Flame Retardance
• V2 conforming to UL 94
• Electromagnetic Compatibility
• electrostatic discharge, level 3, 8 kV air, 4 kV contact, conforming to EN/IEC 61000-4-2
• electrostatic discharge, level 3, 8 kV air, 4 kV contact, conforming to EN/I
• Persona Type Ids
• EU
• LC
• OM
• OM8
• PB
• Mechanical Robustness
• shocks15 Gn for 11 ms EN/IEC 60068-2-27
• vibrations4 Gn, 5...300 Hz EN/IEC 60068-2-6
• Market Segmentation Id
• COMMERCIAL
• INDUSTRIAL
• Product Certifications
• C-tick
• EAC
• CSA
• NOM
• UL
• CE

• Complementary Attributes
• Maximum Supply Current : 140 mA
• Important Information Attributes
• Local Data Status : Publishable
• Local Publishable Date : 2025-10-16

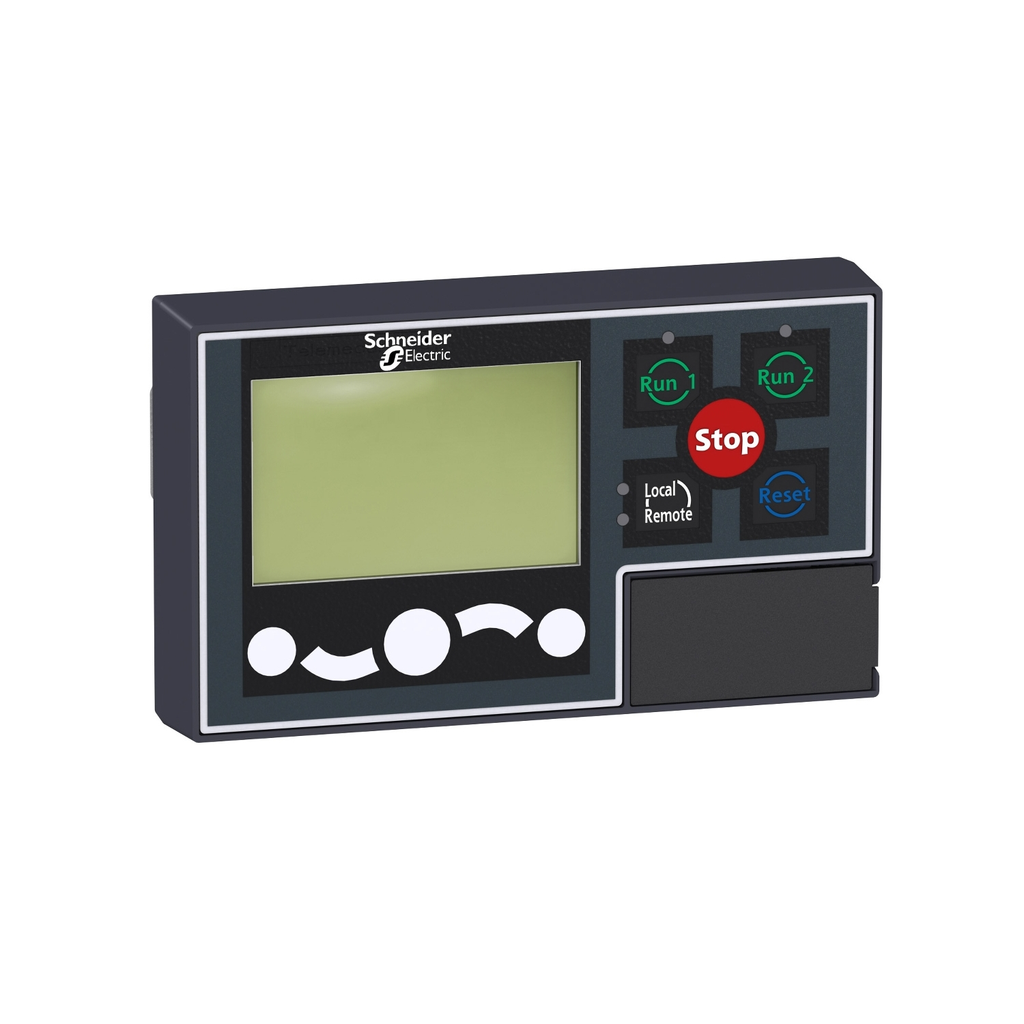

• Html Descr : TeSys T Operator control unit for LTM R controller
• Manufacturer : Schneider Electric
• Device Type : Relay, Control & Measurement - Protection relay
• Serviceability : Yes
• Traceability : Yes
• Field Service Division : PPIBS
• Average Life Duration : 15 year(s)
• Legacy WEEE Scope : In
• WEEE Product Category : 5
• Scope Perimeter : At least in Europe
• EOLI Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI2503009_V1
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS Eur In Scope : Yes
• ROHS Eur Status : Compliant with Exemptions
• ROHS Eur Conformity Date : 2426
• ROHS Eur Full Compliance Status : Compliant with Exemptions
• ROHS Eur Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
• China ROHS In Scope : No
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : Yes
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 1 - GSC certified
• Tier Id : 2
• Tier : 2
• Function Option Id : STANDARD
• Function Option : Standard
• Compatibility Code : LTMCU
• Device Short Name : LTMCU
• Display Type : Backlit LCD
• Halogen Free Status : Halogen free plastic parts product
• Local Signalling : 4 LEDs
• Mounting Mode : flush-mounted
• Package Weight Lbs : 264.000 g
• Power Dissipation : 1 W
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : operator control unit
• Range : TeSys
• Returnability : Yes
• Supply : via the controller
• Sustainable Packaging : No
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Relationshiptype : Compatible relationship
• General Attributes
• Product Or Component Type : operator control unit
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=6969425&lang=en-us
• Take Back : No
• Halogene Performance : Halogen free plastic parts product
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : Product out of China RoHS scope. Substance declaration for your information.
• Mercury Free : Yes
• Ambient Air Temperature For Operation : -20-60 °C
• Ambient Air Temperature For Storage : -40-80 °C
• Circularity Profile : ENVEOLI2503009_V1
• Environmental Disclosure : ENVPEP2503009_V1
• Eu Rohs Directive : Compliant with Exemptions
• Halogen Content Performance : Halogen free plastic parts product
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : No
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Relative Humidity : 15-95 %
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : China
• Height : 2.76 in
• Width : 4.61 in
• Depth : 1.97 in
