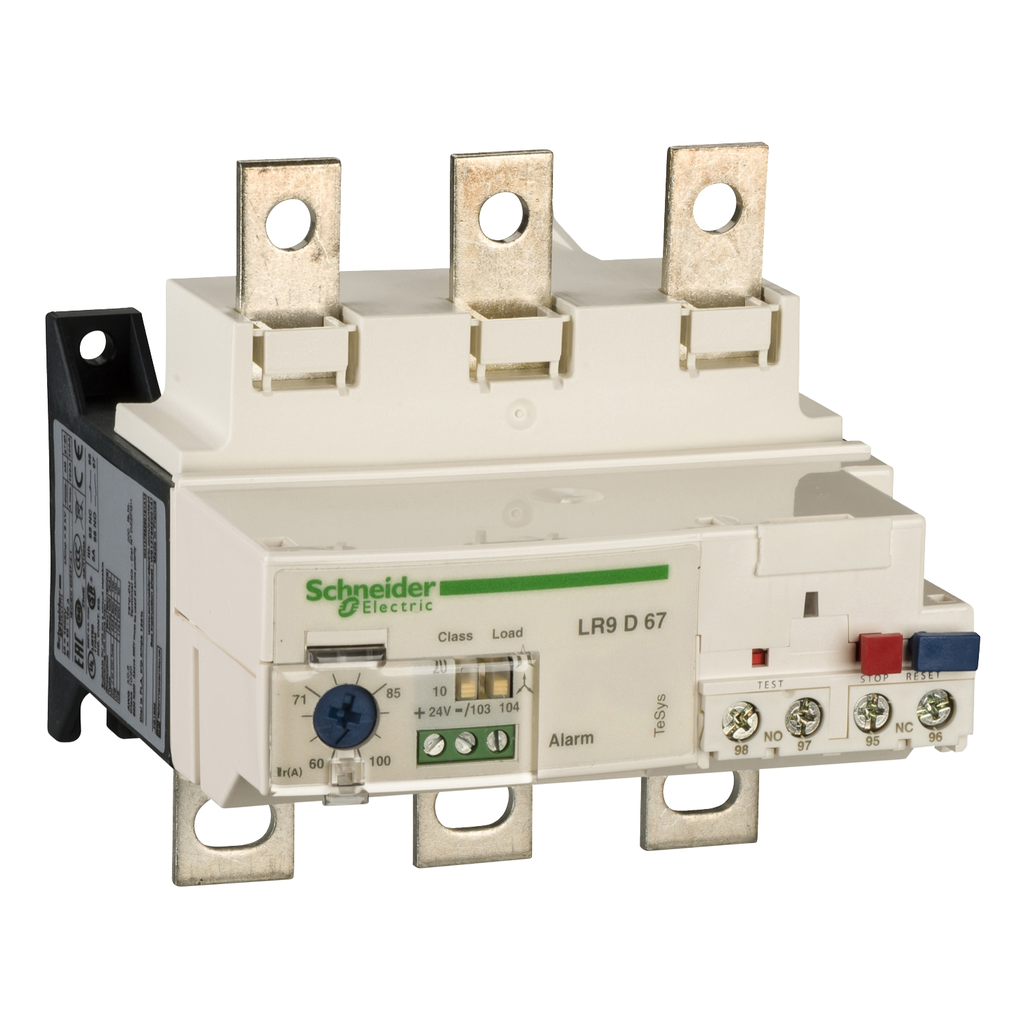

LR9D69 is a TeSys LR9D electronic overload relay from Schneider Electric to be used with a TeSys D contactor. With a thermal range 90-150A, selectable tripping class 10-20, it protects motors 55 to 75kW@400V, for unbalanced loads. LR9D69 is a TeSys LR9D

• Control Type
• Red push-button stop
• Blue push-button reset
• Connections Terminals
• power circuit bars
• control circuit screw clamp terminals 1 0.5-1.5 mm² flexible without cable end
• control circuit screw clamp terminals 1 0.5-1.5 mm² flexib
• Mounting Support
• under contactor
• rail
• Tripping Threshold
• 1.05 +/- 0.06 In alarm IEC 60947-4-1
• 1.12 +/- 0.06 In de-energisation IEC 60947-4-1
• Uimp Rated Impulse Withstand Voltage
• 6 kV IEC 60947-1
• Prop 65
• WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
• Carbon Footprint Of The Installation Phase A5
• 0.11462867527126852
• 0.1 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4
• 2 kg CO2 eq.
• 1.664811934965841
• Standards
• EN/IEC 60947-4-1
• EN/IEC 60947-5-1
• UL 60947-4-1
• UL 60947-5-1
• CSA C22.2 No 60947-4-1
• CSA C22.2 No 60947-5-1
• GB/T 14048.4
• GB/T 14048.5
• Ue Rated Operational Voltage
• 690 V AC 0...400 Hz power circuit IEC 60947-4-1
• Ui Rated Insulation Voltage
• power circuit 1000 V IEC 60947-4-1
• power circuit 600 V CSA
• power circuit 600 V UL
• Ip Degree Of Protection
• IP20 conforming to IEC 60529
• Carbon Footprint Of The Manufacturing Phase A1 To A3
• 4 kg CO2 eq.
• 4.373067856057913
• Accessories
• LA7D305
• XB5AL84101
• XB5AA86102
• Thermal Overload Class
• class 10/20 IEC 60947-4-1
• Carbon Footprint Of The Use Phase B2 B3 B4 B6
• 127 kg CO2 eq.
• 126.69793890788517
• Dielectric Strength
• 1.89 kV 50 Hz IEC 60947-1
• Us Rated Supply Voltage
• 24 V DC
• Carbon Footprint Of The Distribution Phase A4
• 0.5985198819621839
• 0.6 kg CO2 eq.
• Tightening Torque
• alarm circuit 0.45 N.m screw clamp terminals
• power circuit 18 N.m bars M8
• con
• Ith Conventional Free Air Thermal Current
• 5 A signalling circuit
• Mechanical Robustness
• vibrations2 Gn, 5...300 Hz IEC 60068-2-6
• shocks13 Gn for 11 ms IEC 60068-2-7
• Operating Altitude
• <= 6561.68 ft (2000 m) without derating
• Product Compatibility
• NSX circuit breaker
• LC1D115
• LC1D150
• Associated Fuse Rating
• 4 A gG for signalling circuit
• 4 A BS for signalling circuit
• Ambient Air Temperature For Operation
• -20-60 °C without derating IEC 60947-4-1
• Phase Failure Sensitivity
• tripping in 4 s +/- 20 % IEC 60947-4-1
• Maximum Voltage Drop
• <2.5 V closed state
• Product Certifications
• UL
• CSA
• CCC

• Important Information Attributes
• Local Data Status : Publishable
• Local Publishable Date : 2025-07-08
• Device Type : Relay, Control & Measurement - Protection relay
• Serviceability : No
• Traceability : No
• Manufacturing Carbon Footprint : 4.37306785605791
• Distribution Carbon Footprint : 0.598519881962184
• Installation Carbon Footprint : 0.114628675271269
• Use Carbon Footprint : 126.697938907885
• End Of Life Carbon Footprint : 1.66481193496584
• Legacy WEEE Scope : In
• WEEE Product Category : 5
• Scope Perimeter : At least in Europe
• EOLI Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI2212018
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS Eur In Scope : Yes
• ROHS Eur Status : Compliant with Exemptions
• ROHS Eur Conformity Date : 1001
• ROHS Eur Full Compliance Status : Compliant with Exemptions
• ROHS Eur Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
• China ROHS In Scope : No
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : Yes
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : N
• WD Status : 1 - GSC certified
• Compatibility Code : LR9D
• Device Short Name : LR9D
• Network Frequency : 50-60 Hz
• Network Type : AC
• Package Weight Lbs : 904.000 g
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : electronic thermal overload relay
• Range : TeSys
• Relay Application : motor protection
• Returnability : No
• Signalling Function : alarm
• Supply Voltage Limits : 17-32 V
• Sustainable Packaging : No
• Switching Capacity In Ma : 0...150 mA
• Temperature Compensation : -20-60 °C
• Thermal Protection Adjustment Range : 90-150 A
• Total Lifecycle Carbon Footprint : 133 kg CO2 eq.
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Carbon Footprint Kg Co2 Eq Total Life Cycle : 133.4489672561424
• Relationshiptype : Compatible relationship
• General Attributes
• Product Or Component Type : electronic thermal overload relay
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=640032&lang=en-us
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : Product out of China RoHS scope. Substance declaration for your information.
• Mercury Free : Yes
• Carbon Footprint : 133.448967256142
• Ambient Air Temperature For Storage : -60-70 °C
• Circularity Profile : ENVEOLI2212018
• Climatic Withstand : IACS E10
• Environmental Disclosure : ENVPEP2212018
• Eu Rohs Directive : Compliant with Exemptions
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : No
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : France
• Height : 4.65 in
• Width : 4.53 in
• Depth : 4.92 in
