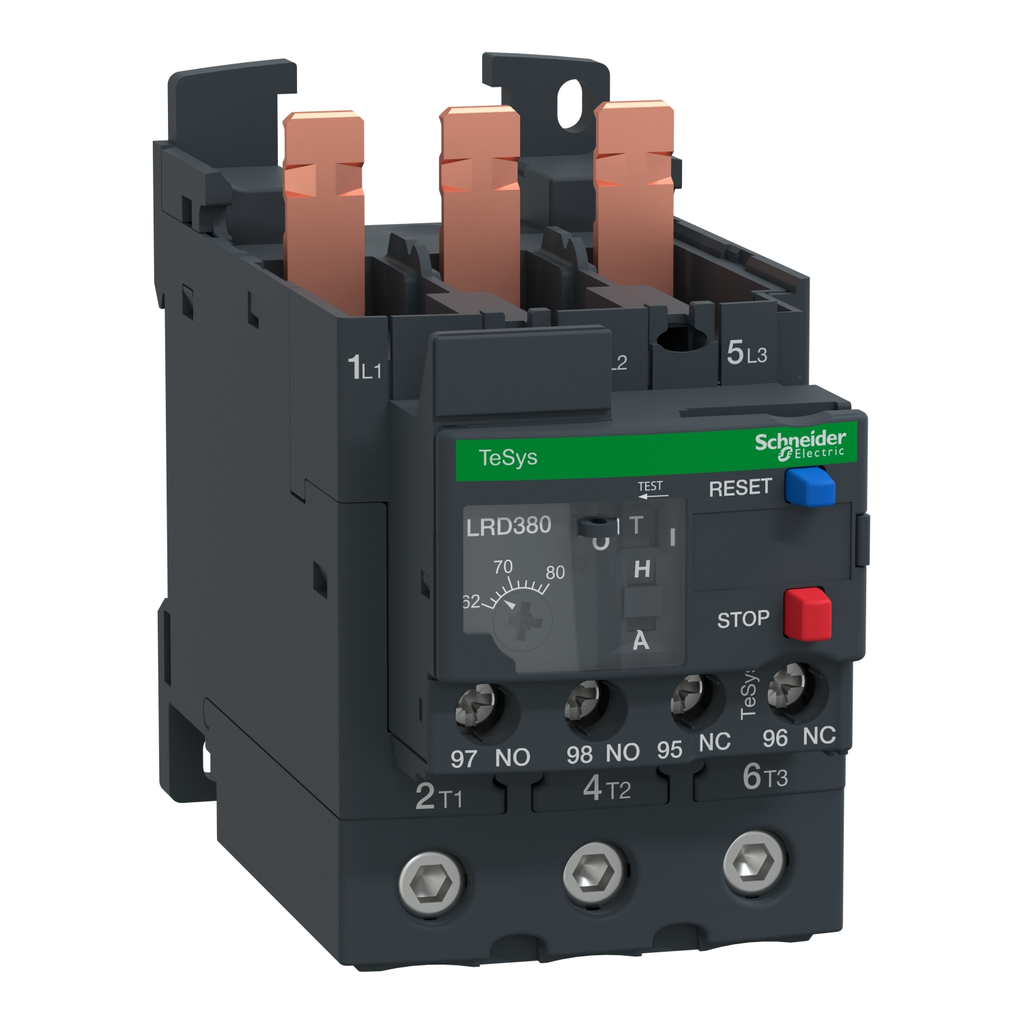

TeSys LRD thermal overload relay, 80A/690V, thermal setting range 62-80A, tripping class 10A, for protection of 3-phase motors 37kW@400V. Non differential device, it can be used with unbalanced loads. It provides a thermal adjustement dial, a manual-auto

• Control Type
• Red push-button stop
• Blue push-button reset
• Connections Terminals
• control circuit screw clamp terminals 2 1-2.5 mm² flexible with cable end
• control circuit screw clamp term
• Mounting Support
• plate, with terminal block LAD96560 on top
• rail, with terminal block LAD96560 on top
• direct mounting under contactor
• Tripping Threshold
• 1.14 +/- 0.06 Ir IEC 60947-4-1
• Carbon Footprint Of The Installation Phase A5
• 0.166761845
• 0.2 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4
• 2 kg CO2 eq.
• 2.383733582
• Standards
• EN/IEC 60947-4-1
• EN/IEC 60947-5-1
• UL 60947-4-1
• UL 60947-5-1
• CSA C22.2 No 60947-4-1
• CSA C22.2 No 60947-5-1
• GB/T 14048.4
• GB/T 14048.5
• Ue Rated Operational Voltage
• 690 V AC 0...400 Hz power circuit IEC 60947-4-1
• Ui Rated Insulation Voltage
• power circuit 690 V IEC 60947-4-1
• power circuit 600 V UL 60947-4-1
• power circuit 600 V CSA C22.2 No 14
• power circuit 600
• Ip Degree Of Protection
• IP20 conforming to IEC 60529
• Carbon Footprint Of The Manufacturing Phase A1 To A3
• 1 kg CO2 eq.
• 1.237182271
• Thermal Overload Class
• class 10A IEC 60947-4-1
• Flame Retardance
• V1 conforming to UL 94
• Carbon Footprint Of The Use Phase B2 B3 B4 B6
• 2 kg CO2 eq.
• 1.896335784
• Dielectric Strength
• 1.89 kV 50 Hz IEC 60947-1
• Permissible Current
• 0.95 A 380 V AC-15 signalling circuit
• 0.06 A 440 V DC-13 signalling circuit
• 0.06 A 440 V DC-13 signall
• Carbon Footprint Of The Distribution Phase A4
• 1.457547461
• 1 kg CO2 eq.
• Tightening Torque
• control circuit 1.7 N.m screw clamp terminals
• power circuit 5 N.m EverLink BTR screw connectors 25-25 mm²
• power circuit 5 N.m EverLink BTR screw connectors 25-25
• Ith Conventional Free Air Thermal Current
• 5 A signalling circuit
• Mechanical Robustness
• shocks15 Gn for 11 ms IEC 60068-2-7
• vibrations3 GN IEC 60068-2-6
• Network Type
• AC
• DC
• Associated Fuse Rating
• 4 A gG for signalling circuit
• 4 A BS for signalling circuit
• Ambient Air Temperature For Operation
• -20-60 °C without derating IEC 60947-4-1
• Range
• TeSys
• TeSys Deca
• Product Certifications
• IEC
• UL
• CSA
• CCC
• EAC
• DNV-GL
• RMRS
• EU-RO MR
• UKCA

• Complementary Attributes
• Uimp Rated Impulse Withstand Voltage : 6 kV
• Important Information Attributes
• Local Data Status : Publishable
• Local Publishable Date : 2025-02-26
• Device Type : Relay, Control & Measurement - Protection relay
• Serviceability : No
• Traceability : No
• Manufacturing Carbon Footprint : 1.237182271
• Distribution Carbon Footprint : 1.457547461
• Installation Carbon Footprint : 0.166761845
• Use Carbon Footprint : 1.896335784
• End Of Life Carbon Footprint : 2.383733582
• Legacy WEEE Scope : In
• WEEE Product Category : 5
• Scope Perimeter : At least in Europe
• EOLI Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI0804005
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• ROHS Eur In Scope : Yes
• ROHS Eur Status : Compliant
• ROHS Eur Conformity Date : 1926
• ROHS Eur Full Compliance Status : Compliant
• ROHS Eur Full Compliance Status Id : COMPLIANT
• China ROHS In Scope : No
• China ROHS Label : 1
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : N
• WD Status : 5 - INITIALIZED WITH DataSCAN OK (Migration)
• Compatibility Code : LR3D
• Device Short Name : LR3D
• Network Frequency : 0...400 Hz
• Package Weight Lbs : 425.0 g
• Phase Failure Sensitivity : tripping current 130 % of Ir on two phase, the last one at 0
• Power Dissipation Per Pole : 4.8 W
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : non differential thermal overload relay
• Relay Application : motor protection
• Returnability : No
• Sustainable Packaging : Yes
• Temperature Compensation : -20-60 °C
• Thermal Protection Adjustment Range : 62-80 A
• Total Lifecycle Carbon Footprint : 7 kg CO2 eq.
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Carbon Footprint Kg Co2 Eq Total Life Cycle : 7.141560943
• Relationshiptype : Compatible relationship
• Accessories : LAD96560
• General Attributes
• Product Or Component Type : non differential thermal overload relay
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=458757373&lang=en-us
• Take Back : No
• Reach Free Shvc : Yes
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Carbon Footprint : 7.141560943
• Ambient Air Temperature For Storage : -60-70 °C
• Circularity Profile : ENVEOLI0804005
• Climatic Withstand : IACS E10
• Environmental Disclosure : ENVPEP080405EN
• Eu Rohs Directive : Compliant
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Product Compatibility : LC1D80A
• Reach Free Of Svhc : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : France
• Height : 2.76 in
• Width : 2.17 in
• Depth : 4.84 in
