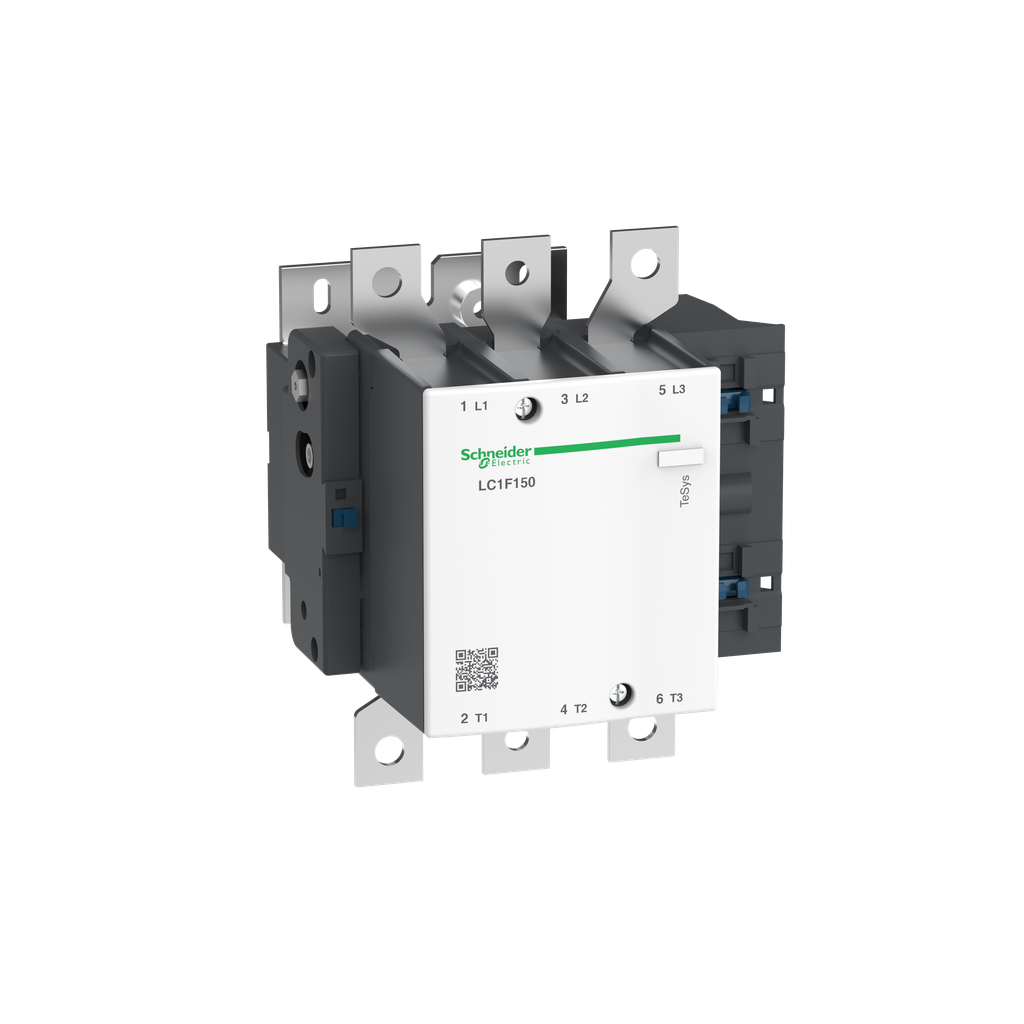

Contactor, TeSys F, 3P(3NO), AC-3 <=440V 150A, 600V AC coil

contactor, TeSys F, 3P(3NO), A

SQDLC1F150X7 LC1F150X7 3606481734167
0.00 / EA
http://schema.org/OutOfStock
Mayer-DDS-Contactor, TeSys F, 3P(3NO), AC-3 <=440V 150A, 600V AC coil-1
  • Country of Origin: Czechia
  • Depth: 171 mm
QTY
  • Specifications
  • Complementary Attributes
    • Control Circuit Voltage Limits : operational 0.85...1.1 Uc 40...400 Hz 55 °C), drop-out 0.2...0.55 Uc 40...400 Hz 55 °C)
    • Control Circuit Type : AC 40...400 Hz
    • Maximum Motor Phase Current : 150 A
    • Maximum Operating Rate : 1200 cyc/h 55 °C
    • Rated Breaking Capacity : 1200 A conforming to IEC 60947-4-1
  • Important Information Attributes
    • Persona Type Ids : EU, OM, OM8, PB
    • Persona Type Names : End User, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
    • Market Segmentation Id : COMMERCIAL, INDUSTRIAL
    • Market Segmentation : Commercial, Industrial
    • Associated Fuse Rating : 160 A aM at <= 440 V, 250 A gG at <= 440 V
    • Contactor Application : resistive load, motor control
    • Motor Power Kw : 75 kW at 380...400 V AC 50/60 Hz (AC-3), 80 kW at 415 V AC 50/60 Hz (AC-3), 80 kW at 440 V AC 50/60 Hz (AC-3), 90 kW at 500 V AC 50/60 Hz (AC-3), 100 kW at 660...690 V AC 50/60 Hz (AC-3), 40 kW at 220...230 V AC 50/60 Hz (AC-3), 22 kW at 400 V AC 50/60 Hz (AC-4)
    • Operating Time : 35 ms closing at Uc), 130 ms opening at Uc)
    • Power Dissipation Per Pole : 22 W AC-1, 8 W AC-3
    • Tightening Torque : control circuit 1.2 N.m, power circuit 18 N.m
    • Utilisation Category : AC-3, AC-1, AC-4
    • Certificate Agency : BV, RINA, LROS (Lloyds register of shipping), RMRoS, ABS, CCC, CB, UL, DNV
    • [Icw] Rated Short-time Withstand Current : 1200 A 40 °C - 10 s, 700 A 40 °C - 30 s, 600 A 40 °C - 1 min, 450 A 40 °C - 3 min, 350 A 40 °C - 10 min
    • [Ie] Rated Operational Current : 250 A (at <40 °C) at <= 440 V AC-1, 150 A (at <55 °C) at <= 440 V AC-3
    • [Uc] Control Circuit Voltage : 600 V, 600 V AC 40...400 Hz
    • [Ue] Rated Operational Voltage : <= 690 V AC 50/60 Hz, <= 690 V AC 50/60 Hz, <= 690 V AC 50/60 Hz<= 690 V AC 50/60 Hz, <= 690 V AC 50/60 Hz, <= 690 V AC 50/60 Hz
    • [Ui] Rated Insulation Voltage : 1000 V IEC 60947-4-1, 1500 V VDE 0110 group C
    • Connections - Terminals : control circuit screw clamp terminals 2 1-2.5 mm²flexible with cable end, control circuit screw clamp terminals 2 1-4 mm²solid without cable endcontrol circuit screw clamp terminals 1 1-4 mm²flexible without cable end, control circuit screw clamp terminals 2 1-4 mm²flexible without cable end, control circuit screw clamp terminals 1 1-4 mm²flexible with cable end, control circuit screw clamp terminals 1 1-4 mm²solid without cable end, power circuit bar 2 25 x 3 mm, power circuit lugs-ring terminals 1 120-120 mm², power circuit connector 1 120-120 mm², power circuit bolted connection
    • Carbon Footprint Of The Distribution Phase [A4] : 0.7019019380813037, 0.7 kg CO2 eq.
    • Carbon Footprint Of The End-of-life Phase [C1 To C4] : 6 kg CO2 eq., 6.480291283629696
    • Carbon Footprint Of The Installation Phase [A5] : 0.3265308693150226, 0.3 kg CO2 eq.
    • Carbon Footprint Of The Manufacturing Phase [A1 To A3] : 71 kg CO2 eq., 70.74302977018031
    • Carbon Footprint Of The Use Phase [B2, B3, B4, B6] : 474 kg CO2 eq., 473.9372250736914
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-04-23
    • Return Indicator : Y
    • Stocking Flag : Y
    • Stock Policy : 1
    • Device Type : LV equipment - LV contactor
    • Serviceability : No
    • Traceability : No
    • Field Service Division : PPIBS
    • Average Life Duration : 20 year(s)
    • Weee Scope : In
    • Weee Product Category : 5
    • Scope Perimeter : At least in Europe
    • Eoli Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2405025
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • Rohs Eur In Scope : Yes
    • Rohs Eur Status : Compliant By Exemption
    • Rohs Eur Conformity Date : 2022
    • Rohs Eur Full Compliance Status : Compliant By Exemption
    • China Rohs In Scope : No
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : No, we have minimized the use of plastic in the packaging in compliance with regulations and considering quality and safety standards
    • Product Contributes To Saved And Avoided Emissions : No
    • Tier Id : 1
    • Tier : 1
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Product Kit Identifier : N
    • Average Impedance : 0.35 mOhm - Ith 250 A 50 Hz
    • Compatibility Code : LC1F
    • Contactor Coil Voltage : 600 V AC standard
    • Device Short Name : LC1F
    • Energy Efficiency Optimized : False
    • Heat Dissipation : 5.9-7.2 W
    • Inrush Power In Va : 690-855 VA, 40...400 Hz 0.9 20 °C)
    • Mechanical Durability : 10 Mcycles
    • Mounting Support : plate
    • Number Of Poles : 3P
    • Overvoltage Category : III
    • Pole Contact Composition : 3 NO
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : contactor
    • Protective Treatment : TH
    • Range : TeSys
    • Range Of Product : TeSys F
    • Returnability : Yes
    • Software Version : v6.1
    • Sustainable Packaging : Yes
    • Total Lifecycle Carbon Footprint : 552 kg CO2 eq.
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Control Circuit Voltage : 600 V
    • Inf Motor Phase Current : 150 A
    • Pep Code : ENVPEP2405025EN
    • Database Version : 2023-02
    • Pep Verification Date : 2025-08-11
    • Pcr Version : PCR-4-ed4-EN-2021 09 06
    • Psr Version : PSR-0005-ed3-EN-2023 06 06
    • Type Of Verification For The Pep : Independent internal review
    • Data Source : extrapolated product
    • Functional-unit Description : Establish and cut off the supply of a downstream installation from an electrical and/or mechanical control characterised by the composition of the poles or type of contacts X, a rated voltage of Ue, a rated current Ie, a control circuit voltage Uc, with Np poles, and if applicable the specific specifications, in the Household/Commercial or Industrial application areas, according to the appropriate use scenario, and during the reference service life of the product of 20 years
    • Functional-unit Quantity : 1
    • Functional-unit Unit : unit
    • Reference Lifetime, In Y : 20
    • Energy Consumption On Product Lifetime, In Kwh : 1156.32
    • Energy Model - Manufacturing [A1-a3] : Czech Republic, CZ
    • Energy Model - Installation [A5] : Electricity Mix; AC; consumption mix, at consumer; < 1kV; EU-27
    • Energy Model - Use [B6] : Electricity Mix; AC; consumption mix, at consumer; < 1kV; EU-27
    • Energy Model - End Of Life [C1-c4] : Electricity Mix; AC; consumption mix, at consumer; < 1kV; EU-27
    • Recyclability Potential, In % : 91
    • Height Nominal : 170 mm
    • Width Nominal : 163.5 mm
    • [Ith] Conventional Free Air Thermal Current : 250 A (at 40 °C)
    • [Uimp] Rated Impulse Withstand Voltage : 8 kV
    • Hold-in Power Consumption In Va : 6.6-8.1 VA, 40...400 Hz 0.9 20 °C)
    • Rated Thermal Current (Ith) : 250 A
    • Nbr. Of Units In Pkg. : 1
    • Package Weight(Lbs) : 4.046 kg
    • Take-back : No
    • Warranty (In Months) : 18
  • Environment Attributes Main
    • China Rohs Regulation : Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
    • Ambient Air Temperature For Operation : -40-60 °C, -40-60 °C
    • Ambient Air Temperature For Storage : -60-80 °C, -60-80 °C
    • Ip Degree Of Protection : IP2X front face with shrouds IEC 60529, IP2X front face with shrouds VDE 0106
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • Mercury Free : Yes
    • Carbon Footprint : 552.1889789348977
    • Circularity Profile : ENVEOLI2405025
    • Environmental Disclosure : ENVPEP2405025EN
    • Eu Rohs Directive : Compliant By Exemption
    • Operating Altitude : 9842.52 ft (3000 m) without derating
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : No, we have minimized the use of plastic in the packaging in compliance with regulations and considering quality and safety standards
    • Permissible Ambient Air Temperature Around The Device : 60-70 °C at Uc
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2405025EN
    • Pep Verification Date : 2025-08-11
    • Pcr Version : PCR-4-ed4-EN-2021 09 06
    • Psr Version : PSR-0005-ed3-EN-2023 06 06
    • Type Of Verification For The Pep : Independent internal review
