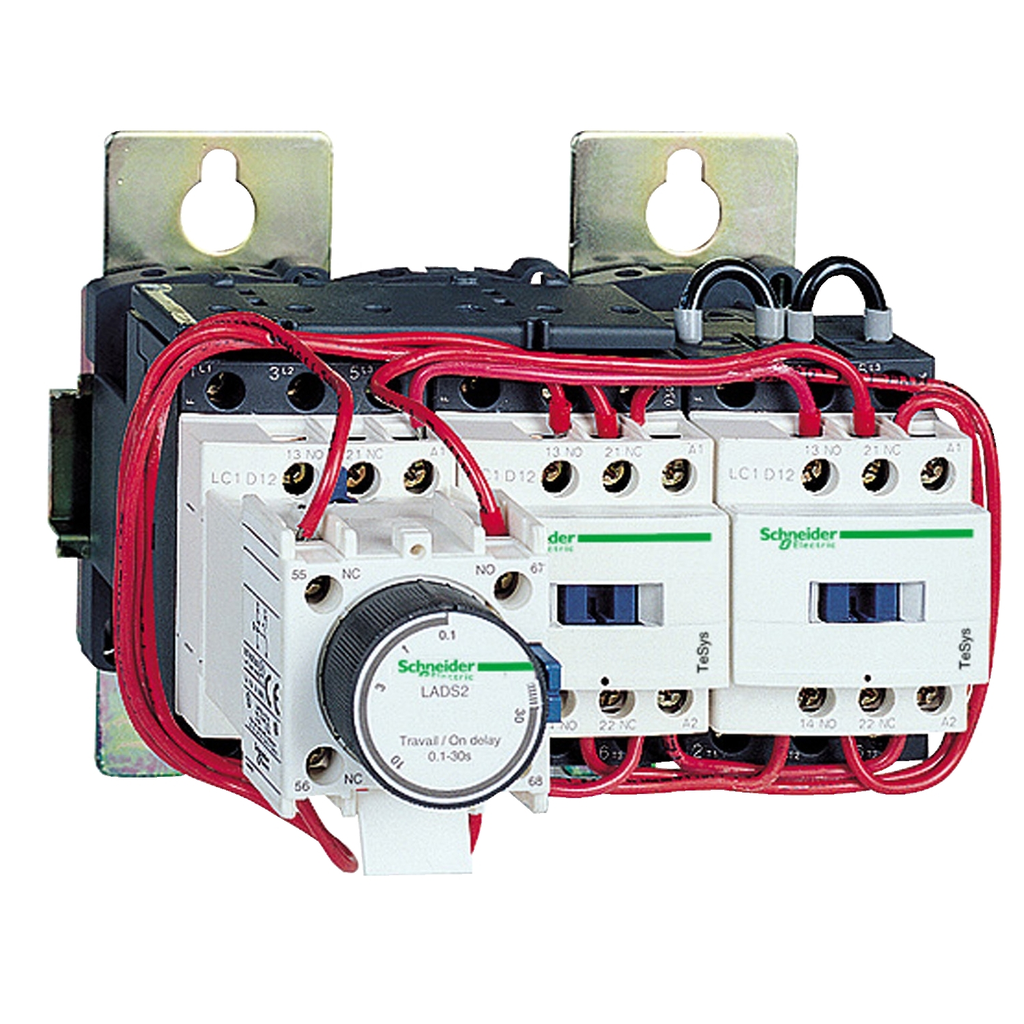

TeSys Deca pre-assembled star-delta starter, for motor control applications up to 110kW@400V in delta connection. It is mounted on plate without isolating device, composed of 3 contactors and 1 time delay auxiliary block. It is provided with a 230V 50/60Hz AC coil, and mechanical interlock, connection by screw clamp terminals. Maximum operating rate is 30 starts/hour and maximum starting time is 30 sec. Dimension is 450mm x 555mm x 205mm (WxHxD).

• Prop 65
• WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov

• Environment
• Mechanical Robustness : vibrations contactor open2 Gn, 5...300 Hz || vibrations contactor closed4 Gn, 5...300 Hz || shocks contactor closed15 Gn for 11 ms || shocks contactor open6 Gn for 11 ms
• Ambient Air Temperature For Operation : -40-60 °C || 60-70 °C with derating
• Pollution Degree : 3
• Insulation Resistance : > 10 MOhm for signalling circuit
• Flame Retardance : V1 conforming to UL 94
• Ambient Air Temperature For Storage : -60-80 °C
• Protective Treatment : TH IEC 60068-2-30
• Ip Degree Of Protection : IP20 front face IEC 60529
• Operating Altitude : 9842.52 ft (3000 m)
• Fire Resistance : 850 °C IEC 60695-2-1
• Contractual warranty
• Warranty : 18 months
• Environmental data
• Rohs Exemption Information : Yes
• Packaging Made With Recycled Cardboard : Yes
• Mercury Free : Yes
• Environmental Disclosure : ENVPEP060301EN
• Packaging Without Single Use Plastic : Yes
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Toxic Heavy Metal Free : Yes
• Scip Number : a530c666-91dd-4119-8d61-f1c22a361ecb
• California Proposition 65 : WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
• Circularity Profile : ENVEOLI100405EN
• Take-Back : No
• Carbon Footprint Of The Use Phase [B2, B3, B4, B6] : 244.50396582733805
• Carbon Footprint Of The Manufacturing Phase [A1 To A3] : 104.91999575823203
• Carbon Footprint Of The Distribution Phase [A4] : 4 kg CO2 eq.
• Pvc Free : Yes
• Carbon Footprint Of The Installation Phase [A5] : 1 kg CO2 eq.
• Sustainable Packaging : Yes
• Total Lifecycle Carbon Footprint : 375 kg CO2 eq.
• Eu Rohs Directive : Compliant
• Carbon Footprint Of The End-Of-Life Phase [C1 To C4] : 20.88980439961189
• Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 375.110870465382
• Complementary
• Non-Overlap Time : 1.5 ms on de-energisation between NC and NO contact || 1.5 ms on energisation between NC and NO contact
• Minimum Switching Current : 5 mA for signalling circuit
• Height : 555 mm
• Control Circuit Voltage Limits : drop-out: 0.3...0.5 Uc at 50/60 Hz (at <55 °C) || operational: 0.8...1.15 Uc at 50/60 Hz (at <55 °C)
• Starting Time : 30 s
• Net Weight : 12.1 kg
• Inrush Power In Va : 280-350 VA 60 Hz cos phi 0.8 (at 20 °C) || 280-350 VA 50 Hz cos phi 0.8 (at 20 °C)
• Connections - Terminals : power circuit: connector 1 10-120 mm² - cable stiffness: flexible without cable end || power circuit: connector 2 10-50 mm² - cable stiffness: flexible without cable end || power circuit: connector 1 10-120 mm² - cable stiffness: flexible with cable end || power circuit: connector 2 10-50 mm² - cable stiffness: flexible with cable end || power circuit: connector 1 10-120 mm² - cable stiffness: solid without cable end || power circuit: connector 2 10-50 mm² - cable stiffness: solid without cable end || control circuit: connector 1 1-2.5 mm² - cable stiffness: flexible without cable end || control circuit: connector 2 1-2.5 mm² - cable stiffness: flexible without cable end || control circuit: connector 1 1-2.5 mm² - cable stiffness: flexible with cable end || control circuit: connector 2 1-2.5 mm² - cable stiffness: flexible with cable end || control circuit: connector 1 1-2.5 mm² - cable stiffness: solid without cable end || control circuit: connector 2 1-2.5 mm² - cable stiffness: solid without cable end
• Coil Technology : without built-in suppressor module
• Maximum Operating Rate : 30 cyc/h 60 °C
• Signalling Circuit Frequency : 25...400 Hz
• Tightening Torque : power circuit 12 N.m connector flat Ø 6...8 mm || control circuit 1.2 N.m connector flat Ø 6 mm || control circuit 1.2 N.m connector Philips No 2
• Mechanical Durability : 8 Mcycles
• Auxiliary Contacts Type : mechanically linked IEC 60947-5-1 3 x 1 NO + 1 NC || mirror contact IEC 60947-4-1 3 x 1 NC
• Hold-In Power Consumption In Va : 2-18 VA 60 Hz cos phi 0.3 (at 20 °C) || 2-18 VA 50 Hz cos phi 0.3 (at 20 °C)
• Switching Voltage : 17 V signalling circuit
• Width : 450 mm
• Depth : 205 mm
• Heat Dissipation : 3-8 W 50/60 Hz
• Specifications
• Country of Origin : France
• Width : 450 mm
• Height : 555 mm
• Weight : 12.1 kg
• Product Certifications : CSA || BV || GL || CCC || GOST || UL || DNV || LROS (Lloyds register of shipping) || RINA
• Interlocking Type : mechanical
• [Uc] Control Circuit Voltage : 230 V AC 50/60 Hz
• [Ue] Rated Operational Voltage : power circuit <= 690 V AC 25...400 Hz
• Standards : IEC 60947-5-1 || CSA C22.2 No 14 || EN 60947-5-1 || UL 508 || EN 60947-4-1 || IEC 60947-4-1
• Pole Contact Composition : 3 x 3 NO
• Mounting Support : plate
• Control Circuit Type : AC 50/60 Hz
• Contactor Application : motor control
• Product Or Component Type : star delta starter
• Product Name : TeSys Deca
• [Uimp] Rated Impulse Withstand Voltage : 8 kV IEC 60947
• Range : TeSys
• Device Presentation : pre-wired
• Utilisation Category : AC-3
• [Ie] Rated Operational Current : 115 A (at <60 °C) at <= 440 V AC AC-3 for power circuit
• Auxiliary Contact Composition : 1 NC KM2 line contactor || 1 NO KM3 delta contactor
• Electrical Durability : 0.95 Mcycles 115 A AC-3 <= 440 V
• Overvoltage Category : III
• Motor Power Kw : 110 kW 380/400 V AC 50/60 Hz || 110 kW 415 V AC 50/60 Hz || 110 kW 440 V AC 50/60 Hz || 63 kW 220/230 V AC 50/60 Hz
• [Ui] Rated Insulation Voltage : power circuit 600 V CSA || power circuit 600 V UL || signalling circuit 600 V CSA || signalling circuit 600 V UL || power circuit 1000 V IEC 60947-4-1 || signalling circuit 1000 V IEC 60947-1
• Device Short Name : LC3D
• Poles Description : 3 x 3P
