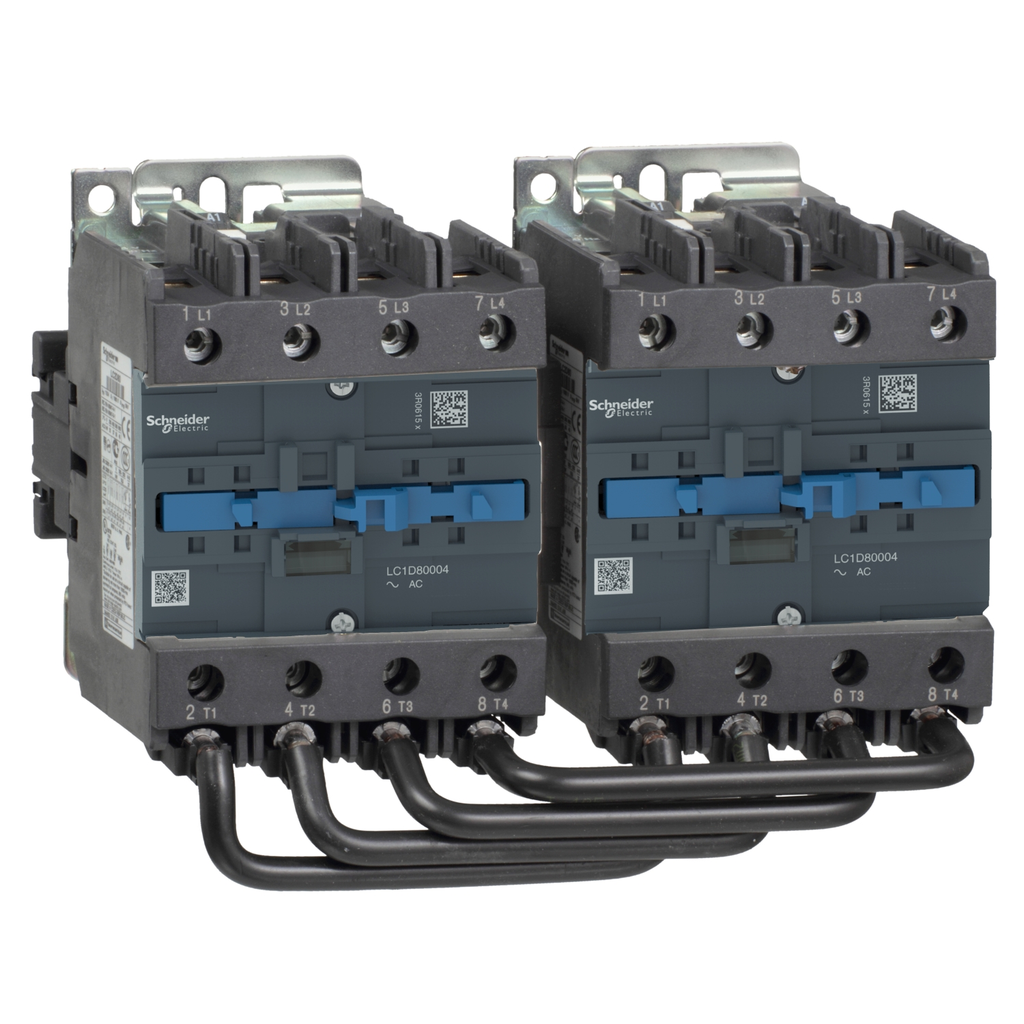

TeSys Deca changeover contactor , 4P(4 NO) , AC-1 , <= 440V, 125A, 220V AC coil

TESYS DECA CHANGEOVER CONTACTO

SQDLC2D80004M5 LC2D80004M5 3389110086645
1455.91 / EA
http://schema.org/OutOfStock
Mayer-DDS-TeSys Deca changeover contactor , 4P(4 NO) , AC-1 , <= 440V, 125A, 220V AC coil-1
  • Country of Origin: Czechia
  • Depth: 158 mm
  • Warranty Length: 18 mth
  • Weight: 1393 g
TeSys Deca changeover contactor, 4P(4NO) for category AC-1 applications up to 125A @440V. It is provided with 220V 50Hz coil, with no auxiliary contacts, power and control connections by screw clamp terminals. It procures with 10 Mcycles mechanical durability and 0.8 Mcycles electrical durability. It provides IP20 protection on front face conforming to IEC 60529. It can cover -40°C to 60°C operation temperature and without derating under 3000m altitude. Designed for demanding applications with maximum operating rates up to 3600 cycles per hour under maximum 60°C. The dimension is 127mm x 207mm x 158mm (H x W x D), mounting on rail or plate. It is preassembled with prewired power connections, also with mechanical interlock. Multi standards certified(UL,LROS,CSA,CCC,EAC,UKCA,CB,DNV-GL,RINA,BV).
QTY
  • Product Description
  • Features
  • Specifications
TeSys Deca changeover contactor, 4P(4NO) for category AC-1 applications up to 125A @440V. It is provided with 220V 50Hz coil, with no auxiliary contacts, power and control connections by screw clamp terminals. It procures with 10 Mcycles mechanical durability and 0.8 Mcycles electrical durability. It provides IP20 protection on front face conforming to IEC 60529. It can cover -40°C to 60°C operation temperature and without derating under 3000m altitude. Designed for demanding applications with maximum operating rates up to 3600 cycles per hour under maximum 60°C. The dimension is 127mm x 207mm x 158mm (H x W x D), mounting on rail or plate. It is preassembled with prewired power connections, also with mechanical interlock. Multi standards certified(UL,LROS,CSA,CCC,EAC,UKCA,CB,DNV-GL,RINA,BV).
  • Features
    • Designed to meet needs of demanding applications
    • Wide range of accessaries to satisfy different customer usage
    • Digital customer experience for technical documents
    • New modern look & feel of all machines
    • Easier to install and operate with multi-standard screws
    • It provides high mechanical and electrical durability
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
  • Complementary Attributes
    • Control Circuit Type : AC 50 Hz, AC 50 Hz
    • Ie Rated Operational Current : 125 A (at <60 °C) at <= 440 V AC AC-1 for power circuit80 A (at <60 °C) at <= 440 V AC AC-3 for power circuit, 80 A (at <60 °C) at <= 440 V AC AC-3e for power circuit, 55 A (at <60 °C) at <= 400 V AC AC-4 for power circuit
    • Uc Control Circuit Voltage : 220 V, 220 V AC 50 Hz
    • Ui Rated Insulation Voltage : power circuit 600 V CSA, power circuit 600 V ULpower circuit 1000 V IEC 60947-4-1
    • Control Circuit Voltage Limits : 0.3...0.6 Uc (-40-55 °C):drop-out AC 50 Hz0.85...1.1 Uc (-40-55 °C):operational AC 50 Hz
    • Irms Rated Making Capacity : 1100 A at 440 V for power circuit conforming to IEC 60947
    • Maximum Motor Phase Current : 80 A
    • Maximum Operating Rate : 3600 cyc/h 60 °C
    • Rated Breaking Capacity : 1100 A at 440 V for power circuit conforming to IEC 60947
    • Icw Rated Short Time Withstand Current : 135 A 40 °C - 10 min for power circuit320 A 40 °C - 1 min for power circuit640 A 40 °C - 10 s for power circuit990 A 40 °C - 1 s for power circuit
    • Ue Rated Operational Voltage : power circuit <= 690 V AC 25...400 Hzpower circuit <= 300 V DC
    • Uimp Rated Impulse Withstand Voltage : 8 kV IEC 60947
  • Important Information Attributes
    • Persona Type Ids : EU, LC, OM, OM8, PB, SI
    • Persona Type Names : End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
    • Market Segmentation Id : COMMERCIAL, INDUSTRIAL
    • Market Segmentation : Commercial, Industrial
    • Mechanical Robustness : vibrations contactor open2 Gn, 5...300 Hzshocks contactor open8 Gn for 11 msvibrations contactor closed3 Gn, 5...300 Hz, shocks contactor closed10 Gn for 11 ms
    • Mounting Support : plate, rail
    • Tightening Torque : control circuit 1.2 N.m screw clamp terminals flat Ø 6 mm, control circuit 1.2 N.m screw clamp terminals Philips No 2power circuit 12 N.m connector flat Ø 6 to Ø 8 mmpower circuit 12 N.m connector hexagonal 4 mm, control circuit 1.2 N.m screw clamp terminals pozidriv No 2
    • Utilisation Category : AC-1, AC-3, AC-3e, AC-4
    • Connections Terminals : control circuit screw clamp terminals 2 1-4 mm²solidcontrol circuit screw clamp terminals 1 1-2.5 mm²flexible with cable endpower circuit connector 2 4-25 mm²flexible without cable endpower circuit connector 1 4-50 mm²flexible with cable endpower circuit connector 2 4-16 mm²flexible with cable end, power circuit connector 1 4-50 mm²solid, power circuit connector 2 4-25 mm²solid, control circuit screw clamp terminals 1 1-4 mm²flexible without cable end, control circuit screw clamp terminals 2 1-4 mm²flexible without cable end, control circuit screw clamp terminals 2 1-2.5 mm²flexible with cable end, control circuit screw clamp terminals 1 1-4 mm²solid, power circuit connector 1 4-50 mm²flexible without cable end
    • Control Circuit Voltage : 220 V
    • Certificate Agency : UL, CSA, CCC, EU-RO-MR by DNV-GL, UKCA, EAC, CB Scheme
    • Carbon Footprint Of The Distribution Phase A4 : 0.1713325131435107, 0.2 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 3.2400305595261405, 3 kg CO2 eq.
    • Carbon Footprint Of The Installation Phase A5 : 0.2 kg CO2 eq., 0.24565821976669222
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 9 kg CO2 eq., 8.685024864735219
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 206 kg CO2 eq., 206.02202898550718
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-06-27
    • Return Indicator : N
    • Device Type : LV equipment - LV contactor
    • Serviceability : No
    • Traceability : No
    • Field Service Division : PPIBS
    • Average Life Duration : 20 year(s)
    • Weee Scope : In
    • Weee Product Category : 5
    • Scope Perimeter : At least in Europe
    • Eoli Availability Display : No need of specific recycling operations
    • Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
    • Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
    • Rohs Eur In Scope : Yes
    • Rohs Eur Status : Compliant
    • Rohs Eur Conformity Date : 1924
    • Rohs Eur Full Compliance Status : Compliant
    • China Rohs In Scope : No
    • China Rohs Label : 1
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Tier Id : 1
    • Tier : 1
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Product Kit Identifier : N
    • Associated Fuse Rating : 200 A gG at <= 690 V coordination type 1 for power circuit160 A gG at <= 690 V coordination type 2 for power circuit
    • Average Impedance : 0.8 mOhm - Ith 125 A 50 Hz for power circuit
    • Coil Technology : without built-in suppressor module
    • Compatibility Code : LC2D
    • Contact Compatibility : M1
    • Contactor Application : resistive load
    • Device Short Name : LC2D
    • Electrical Durability : 0.8 Mcycles 125 A AC-1 <= 690 V
    • Fire Resistance : 850 °C IEC 60695-2-1
    • Flame Retardance : V1 conforming to UL 94
    • Heat Dissipation : 6-10 W 50 Hz
    • Inrush Power In Va : 200-200 VA 50 Hz cos phi 0.75 (at 20 °C)
    • Interlocking Type : mechanical
    • Mechanical Durability : 10 Mcycles
    • Number Of Poles : 4P
    • Operating Time : 20...35 ms closing6...20 ms opening
    • Overvoltage Category : III
    • Pole Contact Composition : 4 NO
    • Power Dissipation Per Pole : 12.5 W AC-1
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Name : TeSys Deca
    • Product Or Component Type : changeover contactor
    • Protective Treatment : TH IEC 60068-2-30
    • Range : TeSys
    • Range Of Product : TeSys Deca
    • Returnability : No
    • Safety Reliability Level : B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
    • Software Version : v5.9.4
    • Sustainable Packaging : Yes
    • Total Lifecycle Carbon Footprint : 218 kg CO2 eq.
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Rated Thermal Current Hv : 125 A
    • Database Version : 2022-01
    • Data Source : extrapolated product
    • Height Nominal : 127 mm
    • Width Nominal : 207 mm
    • Nbr. Of Units In Pkg. : 1
    • Customs Code : 8536490065
    • Ith Conventional Free Air Thermal Current : 125 A (at 60 °C) for power circuit
    • Hold In Power Consumption In Va : 20-20 VA 50 Hz cos phi 0.3 (at 20 °C)
    • Rated Thermal Current Ith : 125 A
    • Warranty In Months : 18
    • Functional Unit Description : Switch on and off during 20 years electrical power supply of a downstream installation with an electrical and/or mechanical control. The functional unit is characterized by a type 3P(3NO), a control circuit voltage 230V AC, a power circuit voltage 690V and a rated operational current 80A
    • Functional Unit Quantity : 1
    • Functional Unit Unit : unit
    • Reference Lifetime In Y : 20
    • Energy Consumption On Product Lifetime In Kwh : 3083.52
    • Recyclability Potential In % : 76
  • Environment Attributes Main
    • China Rohs Regulation : Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
    • Ambient Air Temperature For Storage : -60-80 °C, -60-80 °C
    • Take Back : No
    • Reach Free Shvc : Yes
    • Recycled Metal Content At Cr Level : 0 %
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Carbon Footprint : 218.36407514267873
    • Ambient Air Temperature For Operation : -40-60 °C-40-60 °C60-70 °C with derating
    • Climatic Withstand : IACS E10
    • Environmental Disclosure : ENVPEP1102005EN
    • Eu Rohs Directive : Compliant
    • Ip Degree Of Protection : IP20 front face IEC 60529
    • Operating Altitude : 0...9842.52 ft (0...3000 m)
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Free Of Svhc : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP1102005EN
    • Pep Verification Date : 2025-08-05
    • Pcr Version : PEP-PCR-ed4-2021 09 06
    • Psr Version : PSR-0005-ed2-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
  • General Attributes
    • Product Or Component Type : changeover contactor
    • Range Of Product : TeSys Deca
  • ETIM
    • ETIM 8 : EC000010
    • ETIM 9 : EC000010
    • ETIM 10 : EC000010
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : Czechia
    • Weight : 1393 g
    • Depth : 158 mm
  • Overview Attributes
    • Device Presentation : preassembled, with prewired power connections
