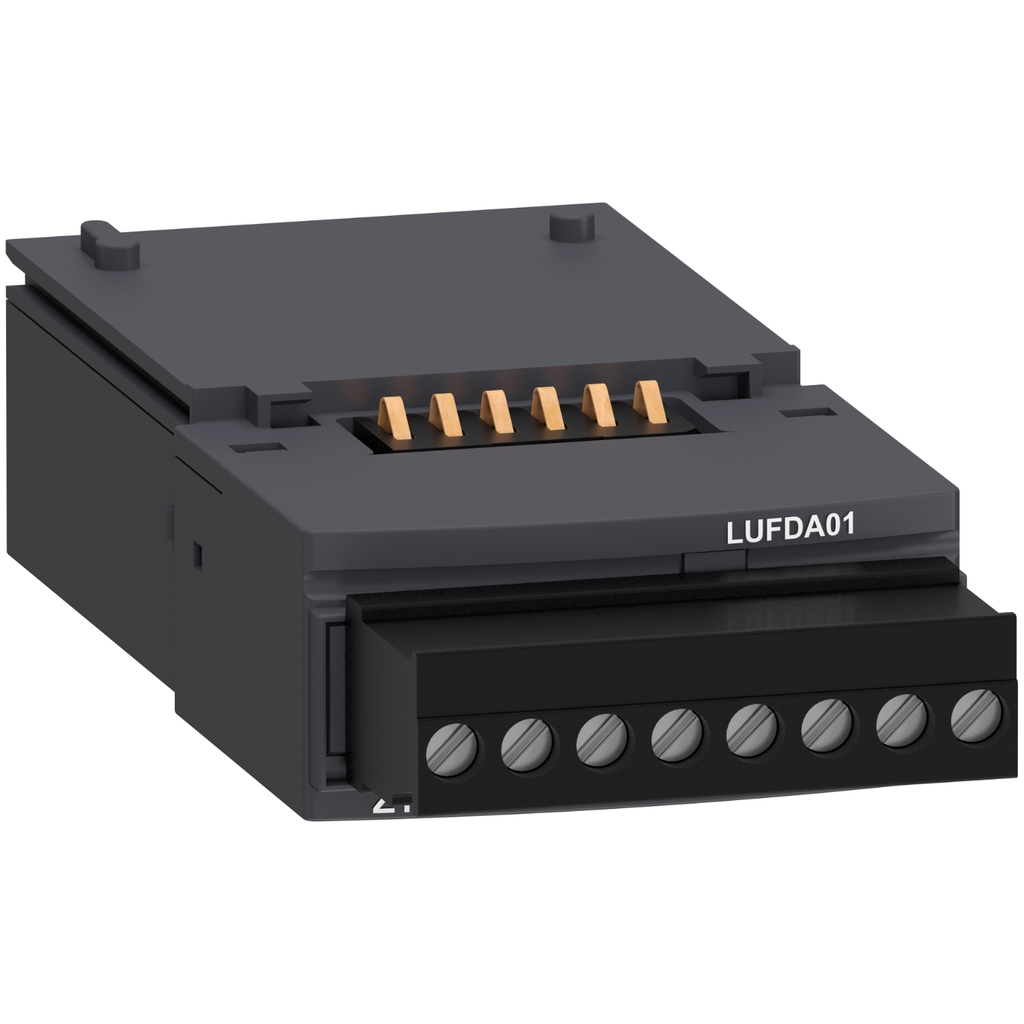

Function module, thermal overload signalling, TeSys Ultra, 1NC

AUX FUNCTION MODULE, AUTO/REM

SQDLUFDA01 LUFDA01 3389110745313
167.13 / EA
http://schema.org/OutOfStock
Mayer-DDS-Function module, thermal overload signalling, TeSys Ultra, 1NC-1
  • Country of Origin: France
  • Net Weight: 0.055 kg
  • Warranty Length: 18 mth
  • Weight: 0.055 kg
TeSys U additional function module to be inserted in advanced power bases LUB120, LUB320, LUB380 for thermal overload tripping indication. It indicates the overload tripping and reset done by the power base control pad or done remotely. It provides 1NC instantaneous contact rated 24-250V AC/DC 5A max. It requires an external power supply 24-240V AC or DC. To be inserted in the cavity of a power base provided for the auxiliary modules. Certified when used in conjunction with a LUB power base (IEC, UL, CSA, CCC, EAC, Marine).
QTY
  • Product Description
  • Specifications
TeSys U additional function module to be inserted in advanced power bases LUB120, LUB320, LUB380 for thermal overload tripping indication. It indicates the overload tripping and reset done by the power base control pad or done remotely. It provides 1NC instantaneous contact rated 24-250V AC/DC 5A max. It requires an external power supply 24-240V AC or DC. To be inserted in the cavity of a power base provided for the auxiliary modules. Certified when used in conjunction with a LUB power base (IEC, UL, CSA, CCC, EAC, Marine).
  • Specifications
    • Country of Origin : France
    • Weight : 0.055 kg
    • Product Or Component Type : function module
    • Range : TeSys
    • Product Compatibility : LUCB || LUCC || LUCD
    • Device Short Name : LUF
  • Complementary
    • [Ith] Conventional Free Air Thermal Current : 2 A 70 °C
    • Auxiliary Contact Composition : 1 NC
    • Short-Circuit Protection : 2 A fuse gG IEC 60947-5-1
    • Connection Pitch : 5.08 mm
    • Communication Of Faults : LED front panel
    • Net Weight : 0.055 kg
    • Mounting Location : front side
    • Function Available : thermal overload signalling and automatic or remote reset
    • Mounting Mode : plug-in
    • [Us] Rated Supply Voltage : 24...240 V DC
    • Tightening Torque : 0.5-0.6 N.m 3.5 mm flat
  • Environmental data
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : Yes
    • Mercury Free : Yes
    • Halogen Content Performance : Halogen free plastic parts product
    • Packaging Without Single Use Plastic : Yes
    • Scip Number : e383808a-7832-4e0a-8697-e499929809d4
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Minimum Percentage Of Recycled Plastic Content : 0
    • Take-Back : No
    • Sustainable Packaging : Yes
    • Eu Rohs Directive : Compliant with Exemptions
  • Contractual warranty
    • Warranty : 18 months
