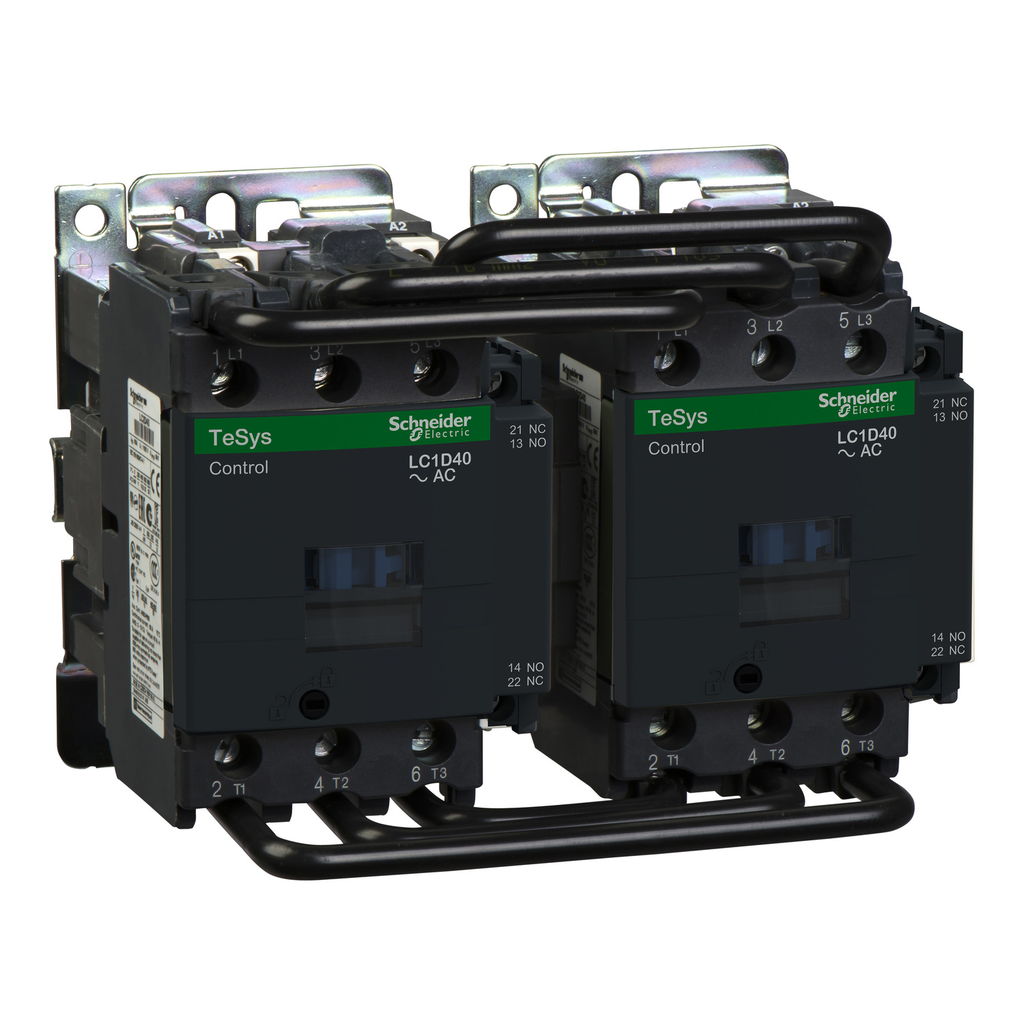

TeSys Deca reversing contactor, 3 poles (3NO),for motor control applications 40A/440V,AC-3/3e 18.5kW@400V. Pre-wired power connections, with mechanical interlock,without electrical interlocking. It provides a 120V 60Hz AC coil with transient suppressor module, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures reliability and durability to standard applications. Compact (90mm width), with DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EN).

• Prop 65
• WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov

• Environment
• Product Certifications : GOST || CCC || GL || LROS (Lloyds register of shipping) || BV || UL || DNV || RINA || CSA
• Ambient Air Temperature For Operation : -5-60 °C
• Standards : CSA C22.2 No 14 || IEC 60947-4-1 || EN 60947-4-1 || UL 508 || IEC 60947-5-1 || EN 60947-5-1
• Shock Resistance : 10 gn contactor closed || 8 gn contactor opened
• Vibration Resistance : 2 gn 5-300 Hz contactor opened || 4 gn 5-300 Hz contactor closed
• Ambient Air Temperature For Storage : -60-80 °C
• Protective Treatment : TH 3)IEC 60068
• Ip Degree Of Protection : IP2X IEC 60529 || IP2X VDE 0106
• Operating Altitude : 9842.52 ft (3000 m) without derating
• Fire Resistance : 850 °C IEC 60695-2-1
• Permissible Ambient Air Temperature Around The Device : -40-70 °C at Uc
• Heat Dissipation : 6-10 W at 50/60 Hz for control circuit
• Contractual warranty
• Warranty : 18 months
• Environmental data
• Rohs Exemption Information : Yes
• Packaging Made With Recycled Cardboard : Yes
• Mercury Free : Yes
• Environmental Disclosure : ENVPEP110205EN
• Packaging Without Single Use Plastic : Yes
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Toxic Heavy Metal Free : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• California Proposition 65 : WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
• Reach Free Of Svhc : Yes
• Circularity Profile : N/A
• Take-Back : No
• Carbon Footprint Of The Use Phase [B2, B3, B4, B6] : 107.15533235931866
• Carbon Footprint Of The Manufacturing Phase [A1 To A3] : 11.071525141639038
• Carbon Footprint Of The Distribution Phase [A4] : 2 kg CO2 eq.
• Pvc Free : Yes
• Carbon Footprint Of The Installation Phase [A5] : 0.1 kg CO2 eq.
• Sustainable Packaging : Yes
• Total Lifecycle Carbon Footprint : 124 kg CO2 eq.
• Eu Rohs Directive : Compliant
• Carbon Footprint Of The End-Of-Life Phase [C1 To C4] : 3.3326604790210625
• Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 123.98777621799216
• Complementary
• Non-Overlap Time : 1.5 ms on de-energisation between NC and NO contacts || 1.5 ms on energisation between NC and NO contacts
• Interlocking Type : mechanical
• Minimum Switching Current : 5 mA for control circuit
• [Ue] Rated Operational Voltage : power circuit <= 1000 V AC 25...400 Hz
• Height : 132 mm
• Power Dissipation Per Pole : 2.4 W AC-3 - Ith 60 A
• Average Impedance : - Ith 60 A 50 Hz for power circuit
• Auxiliary Contact Composition : 1 NO + 1 NC
• Control Circuit Voltage Limits : drop-out: 0.3...0.6 Uc at 50/60 Hz (at <60 °C) || operational: 0.8...1.1 Uc at 50 Hz (at <60 °C) || operational: 0.85...1.1 Uc at 60 Hz (at <60 °C)
• [Ith] Conventional Free Air Thermal Current : 10 A (at 60 °C) for control circuit || 60 A (at 60 °C) for power circuit
• Mounting Support : rail || plate
• Safety Reliability Level : B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 || B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
• Insulation Resistance : > 10 MOhm for control circuit
• Rated Breaking Capacity : 800 A at 440 V for power circuit conforming to IEC 60947
• Irms Rated Making Capacity : 140 A AC for control circuit conforming to IEC 60947-5-1 || 800 A at 440 V for power circuit conforming to IEC 60947
• Associated Fuse Rating : 10 A gG for control circuit conforming to IEC 60947-5-1 || 80 A gG at <= 690 V coordination type 1 for power circuit || 80 A gG at <= 690 V coordination type 2 for power circuit
• Net Weight : 2.4 kg
• Inrush Power In Va : 200-200 VA cos phi 0.75 (at 20 °C) || 220-220 VA cos phi 0.75 (at 20 °C)
• [Uimp] Rated Impulse Withstand Voltage : 6 kV IEC 60947
• Coil Technology : without built-in bidirectional peak limiting diode suppressor
• Flame Retardance : V1 conforming to UL 94
• Minimum Switching Voltage : 17 V for control circuit
• Maximum Operating Rate : 3600 cyc/h 60 °C
• Tightening Torque : control circuit 1.7 N.m 1-2.5 mm² flat Ø 6 mm || control circuit 1.7 N.m 1-2.5 mm² Philips No 2 || control circuit 1.7 N.m 1-4 mm² flat Ø 6 mm || control circuit 1.7 N.m 1-4 mm² Philips No 2 || power circuit 5 N.m 1-25 mm² hexagonal || power circuit 8 N.m 1-35 mm² hexagonal
• Assembly Style : ready assembled
• Mechanical Durability : 6000000 cycles
• Auxiliary Contacts Type : mechanically linked 1 NO + 1 NC IEC 60947-5-1 || mirror contact 1 NC IEC 60947-4-1
• Hold-In Power Consumption In Va : 20-20 VA 50 Hz cos phi 0.3 (at 20 °C) || 22-22 VA 60 Hz cos phi 0.3 (at 20 °C) || 26-26 VA 50 Hz cos phi 0.3 (at 20 °C) || 26-26 VA 60 Hz cos phi 0.3 (at 20 °C)
• Operating Time : 12...26 ms closing || 4...19 ms opening
• Width : 165 mm
• Overvoltage Category : III
• Depth : 142 mm
• [Ui] Rated Insulation Voltage : control circuit 600 V CSA || control circuit 600 V UL || power circuit 600 V CSA || power circuit 600 V UL || control circuit 690 V IEC 60947-1 || power circuit 690 V IEC 60947-1
• Protective Cover : with
• Specifications
• Country of Origin : Czechia
• Width : 165 mm
• Height : 132 mm
• Weight : 2.4 kg
• Control Circuit Type : AC
• [Uc] Control Circuit Voltage : 120 V AC 60 Hz
• Range Of Product : TeSys Deca
• Contactor Application : motor control
• Product Or Component Type : reversing contactor
• Connections - Terminals : control circuit 1 1-4 mm²flexible with cable end || power circuit 2 1-25 mm²flexible with cable end || power circuit 2 1-25 mm²flexible without cable end || power circuit 2 1-25 mm²solid without cable end || power circuit 2 1-35 mm²flexible with cable end || power circuit 2 1-35 mm²flexible without cable end || power circuit 2 1-35 mm²solid without cable end || control circuit 1 1-4 mm²flexible without cable end || control circuit 1 1-4 mm²solid without cable end || control circuit 2 1-2.5 mm²flexible with cable end || control circuit 2 1-4 mm²flexible without cable end || control circuit 2 1-4 mm²solid without cable end || power circuit 1 1-35 mm²flexible with cable end || power circuit 1 1-35 mm²flexible without cable end || power circuit 1 1-35 mm²solid without cable end
• Pole Contact Composition : 3 NO
• Utilisation Category : AC-4 || AC-2 || AC-3
• [Ie] Rated Operational Current : power circuit 40 A AC AC-3 60 °C)
• Poles Description : 3P
• Motor Power Kw : 11 kW 220...240 V AC 50/60 Hz || 22 kW 415 V AC 50/60 Hz || 22 kW 440 V AC 50/60 Hz || 22 kW 500 V AC 50/60 Hz || 30 kW 660...690 V AC 50/60 Hz || 18.5 kW 380...400 V AC 50/60 Hz
• Device Short Name : LC2D
• Coil Type : standard
