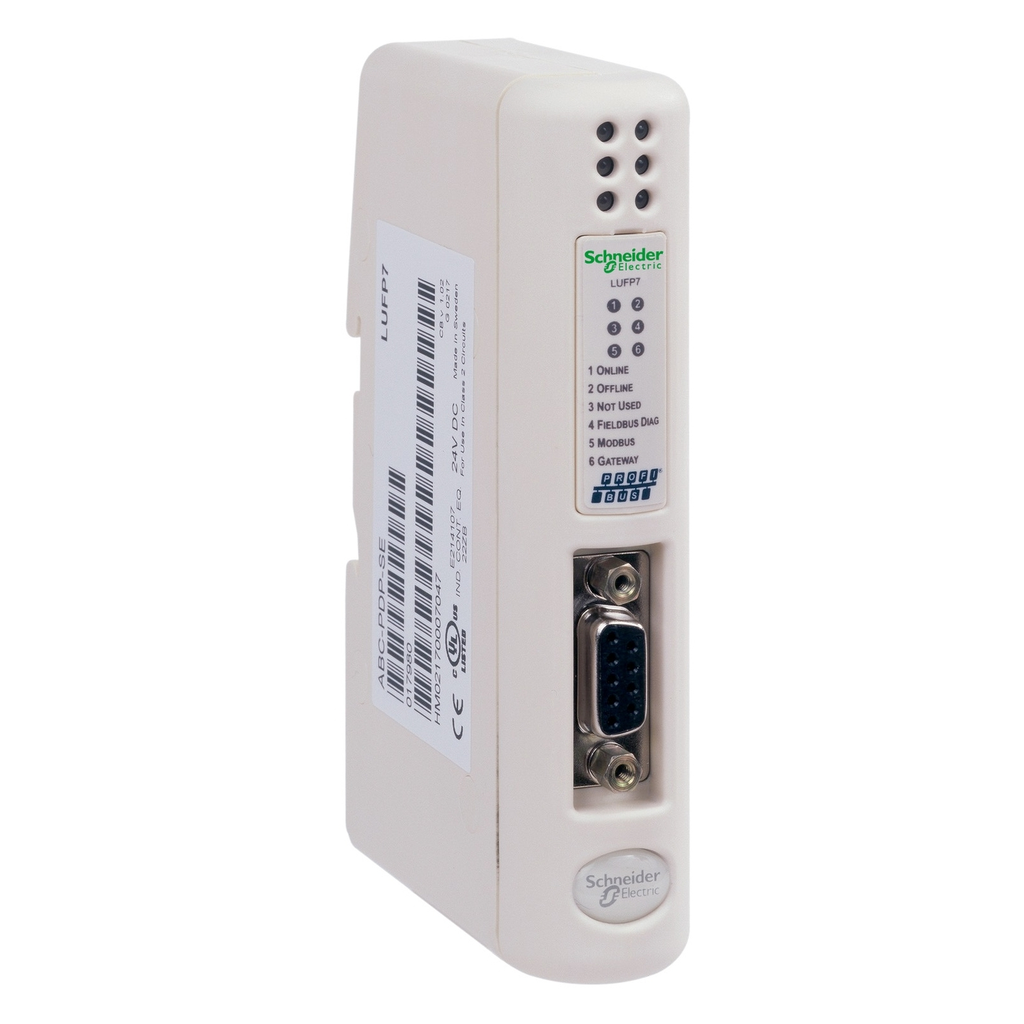

TeSys U communication gateway for interfacing groups of up to 8 x TeSys U starter controllers connected on the same Modbus serial link to a Profibus DP field bus. On front side, it provides the Profibus DP connector, and device and communication LED status. It provides on the bottom 2 x RJ45 connectors for Modbus serial link and PC link, a connector for a 24V DC external power supply. It can be used for interfacing ATS48 soft starters and ATV31 variable speed drives to Profibus DP. To be clipped on a 35mm DIN rail.

• Connector Type
• female SUB-D 9 field bus
• RJ45 Modbus
• RJ45 to a PC
• US Rated Supply Voltage
• 24 V DC +/- 10 %
• Current Consumption
• 100 mA typical
• 280 mA maximum
• Prop 65
• WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
• Market Segmentation
• Commercial
• Industrial
• Persona Type Names
• End User
• Contractor
• Original Equipment Manufacturer
• OEM - Control Panelbuilder
• Panel Builder
• Electromagnetic Compatibility
• electromagnetic emission IEC 50081-2
• electromagnetic immunity IEC 61000-6-2
• Persona Type Ids
• EU
• LC
• OM
• OM8
• PB
• Services
• command Profibus DP 122 configurable words
• configuration and adjustment Fipio by gateway mini messaging facility
• monitoring Profibus DP 122 configurable words
• Market Segmentation Id
• COMMERCIAL
• INDUSTRIAL
• Local Signalling
• LED front panel

• Important Information Attributes
• Local Data Status : Publishable
• Local Publishable Date : 2025-07-10
• Serviceability : No
• Traceability : No
• Field Service Division : PPIBS
• WEEE Applicability : Finished product
• WEEE Scope : In
• Legacy WEEE Scope : In
• WEEE Product Category : 5
• Scope Perimeter : At least in Europe
• ROHS EUR In Scope : Yes
• ROHS EUR Status : Compliant
• ROHS EUR Conformity Date : 1852
• ROHS EUR Full Compliance Status : Compliant
• ROHS EUR Full Compliance Status Id : COMPLIANT
• China ROHS In Scope : No
• China ROHS Label : 1
• With Recycled Cardboard : Yes
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : N
• WD Status : 1 - GSC certified
• Tier Id : 2
• Tier : 2
• Function Option Id : STANDARD
• Function Option : Standard
• Compatibility Code : LUF
• Device Short Name : LUF
• Energy Efficiency Optimized : False
• Package Weight Lbs : 220.000 g
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : communication gateway
• Range : TeSys
• Range Of Product : TeSys U
• Returnability : No
• Sustainable Packaging : No
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Relationship Type : cross-selling relationship
• Nbr Of Units In Pkg : 1
• Warranty In Months : 18
• General Attributes
• Product Or Component Type : communication gateway
• Range Of Product : TeSys U
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=8331644&lang=en-us
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Ambient Air Temperature For Installation : 5-50 °C
• EU ROHS Directive : Compliant
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : No
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : Sweden
