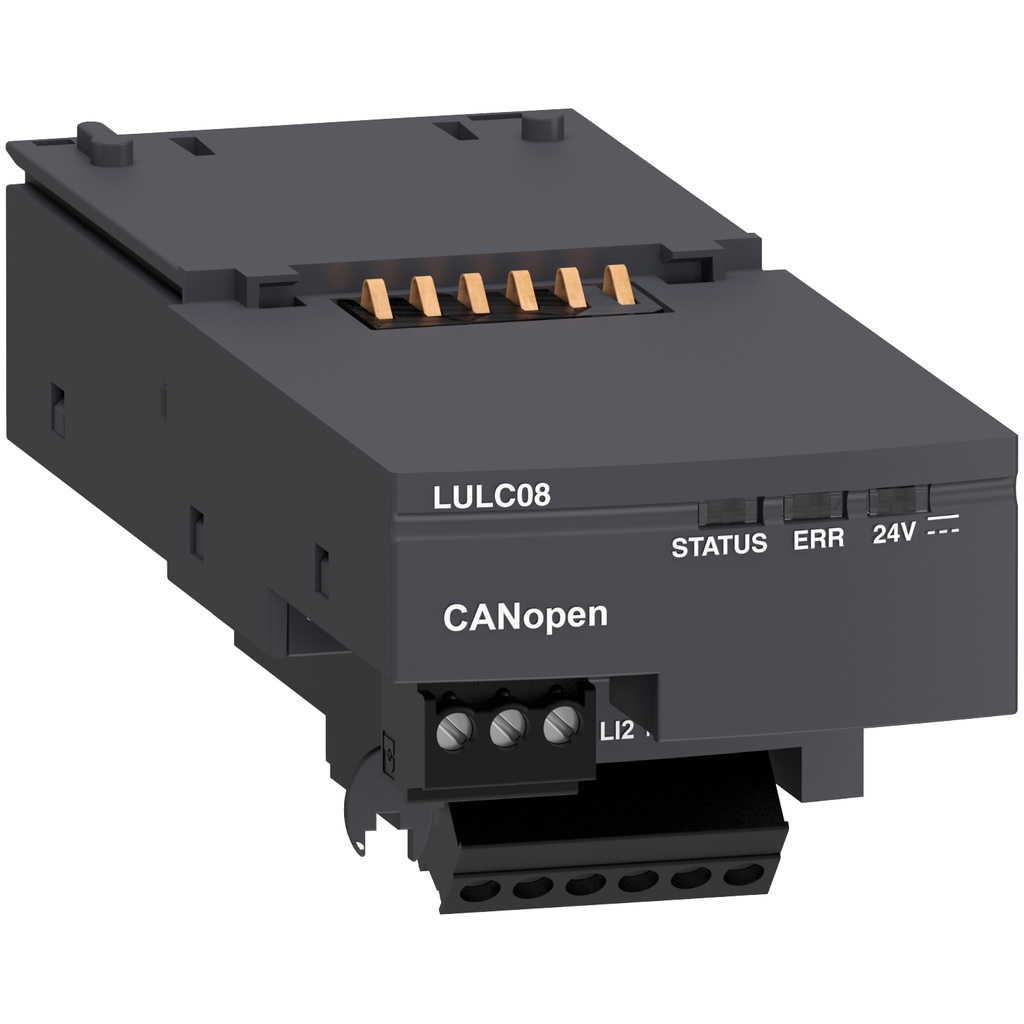

TeSys U communication module for CANopen, to be inserted in advanced power bases LUB120, LUB320, LUB380 equipped with a BL type (24V DC) LUC control unit. It provides a 9-point SUB-D male connector for connection to a CANopen network, a plug-in terminal block for the connection to an external power supply 24V DC, in addition with 2 x configurable logic inputs 24V DC and 1 x logic output 24V DC. On the bottom, a 3-point plug-in terminal block is provided for the local control of the starter controller, to be associated with a control terminal block LU9BN11L for a LUB base or LU9MRL for a LU2B base. It displays 3 LEDs giving the status of the module (24V) and communication line (STATUS, ERR). Certified when used in conjunction with a LUB power base (IEC, UL, CSA, CCC, EAC, Marine).

• US Rated Supply Voltage
• 24 V DC
• Connections Terminals
• screw clamp terminals 1 0.14-1 mm²flexible without cable end
• screw clamp terminals 1 0.14-1 mm²rigid without cable end
• screw clamp terminals 1 0.25-0.5 mm²flexible with cable end
• screw clamp terminals 1 0.25-1 mm²flexible with cable end
• screw clamp terminals 2 0.14-0.5 mm²rigid without cable end
• screw clamp terminals 2 0.14-0.75 mm²flexible without cable end
• screw clamp terminals 2 0.25-0.34 mm²flexible with cable end
• screw clamp terminals 2 0.5-0.5 mm²flexible with cable end
• Current Consumption
• 1.5 mA 24 V DC 20...28 V
• CAD
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0004732_3D-CAD&p_File_name=MCADPD0004732_3D-simplified.stp
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0004732_3D-CAD&p_File_name=MCADPD0004732_2D-back.dwg
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0004732_3D-CAD&p_File_name=MCADPD0004732_2D-back.dxf
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0004732_3D-CAD&p_File_name=MCADPD0004732_2D-bottom.dwg
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0004732_3D-CAD&p_File_name=MCADPD0004732_2D-bottom.dxf
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0004732_3D-CAD&p_File_name=MCADPD0004732_2D-front.dwg
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0004732_3D-CAD&p_File_name=MCADPD0004732_2D-front.dxf
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0004732_3D-CAD&p_File_name=MCADPD0004732_2D-isometric.dwg
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0004732_3D-CAD&p_File_name=MCADPD0004732_2D-isometric.dxf
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0004732_3D-CAD&p_File_name=MCADPD0004732_2D-left.dwg
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0004732_3D-CAD&p_File_name=MCADPD0004732_2D-left.dxf
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0004732_3D-CAD&p_File_name=MCADPD0004732_2D-right.dwg
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0004732_3D-CAD&p_File_name=MCADPD0004732_2D-right.dxf
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0004732_3D-CAD&p_File_name=MCADPD0004732_2D-top.dwg
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0004732_3D-CAD&p_File_name=MCADPD0004732_2D-top.dxf
• Range Compatibility
• TeSys TeSys U LUB non reversing power base
• TeSys TeSys U LU2B reversing power base
• IP Degree Of Protection
• IP20 conforming to IEC 60529
• Response Time
• 10 ms +/- 30 % change to state 0
• 10 ms +/- 30 % change to state 1
• Protection Type
• gL fuse 2 A
• Accessories
• LU9BN11L
• LU9MRL
• Market Segmentation
• Commercial
• Industrial
• Persona Type Names
• End User
• Contractor
• Original Equipment Manufacturer
• OEM - Control Panelbuilder
• Panel Builder
• Number Of Outputs
• 2 dedicated to starter-controller coil operation
• 1
• Persona Type Ids
• EU
• LC
• OM
• OM8
• PB
• Tightening Torque
• 0.2-0.25 N.m2.5 mm
• Logic Input
• positive 24 V DC - 7 mA
• Market Segmentation Id
• COMMERCIAL
• INDUSTRIAL
• Local Signalling
• 3 LEDs front panel
• Switching Current Capacity
• 0.5 mA 24 V

• Important Information Attributes
• Local Data Status : Publishable
• Local Publishable Date : 2025-02-26
• Serviceability : No
• Traceability : No
• Field Service Division : PPIBS
• WEEE Applicability : Finished product
• WEEE Scope : In
• Legacy WEEE Scope : In
• WEEE Product Category : 5
• Scope Perimeter : At least in Europe
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS EUR In Scope : Yes
• ROHS EUR Status : Compliant with Exemptions
• ROHS EUR Conformity Date : 2025
• ROHS EUR Full Compliance Status : Compliant with Exemptions
• ROHS EUR Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
• China ROHS In Scope : No
• China ROHS Label : 7
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 1 - GSC certified
• Tier Id : 2
• Tier : 2
• Function Option Id : STANDARD
• Function Option : Standard
• Associated Cable Type : AWG 26...AWG 16
• Compatibility Code : LUL
• Connection Pitch : 3.81 mm
• Device Short Name : LUL
• Energy Efficiency Optimized : False
• Halogen Free Status : Halogen free plastic parts product
• Package Weight Lbs : 104.000 g
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : communication module
• Range : TeSys
• Range Of Product : TeSys U
• Returnability : Yes
• Sustainable Packaging : Yes
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Relationship Type : Compatible relationship
• Nbr Of Units In Pkg : 1
• Warranty In Months : 18
• General Attributes
• Product Or Component Type : communication module
• Range Of Product : TeSys U
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=8332305&lang=en-us
• Take Back : No
• Halogene Performance : Halogen free plastic parts product
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : Product out of China RoHS scope. Substance declaration for your information.
• Mercury Free : Yes
• EU ROHS Directive : Compliant with Exemptions
• Halogen Content Performance : Halogen free plastic parts product
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : France
