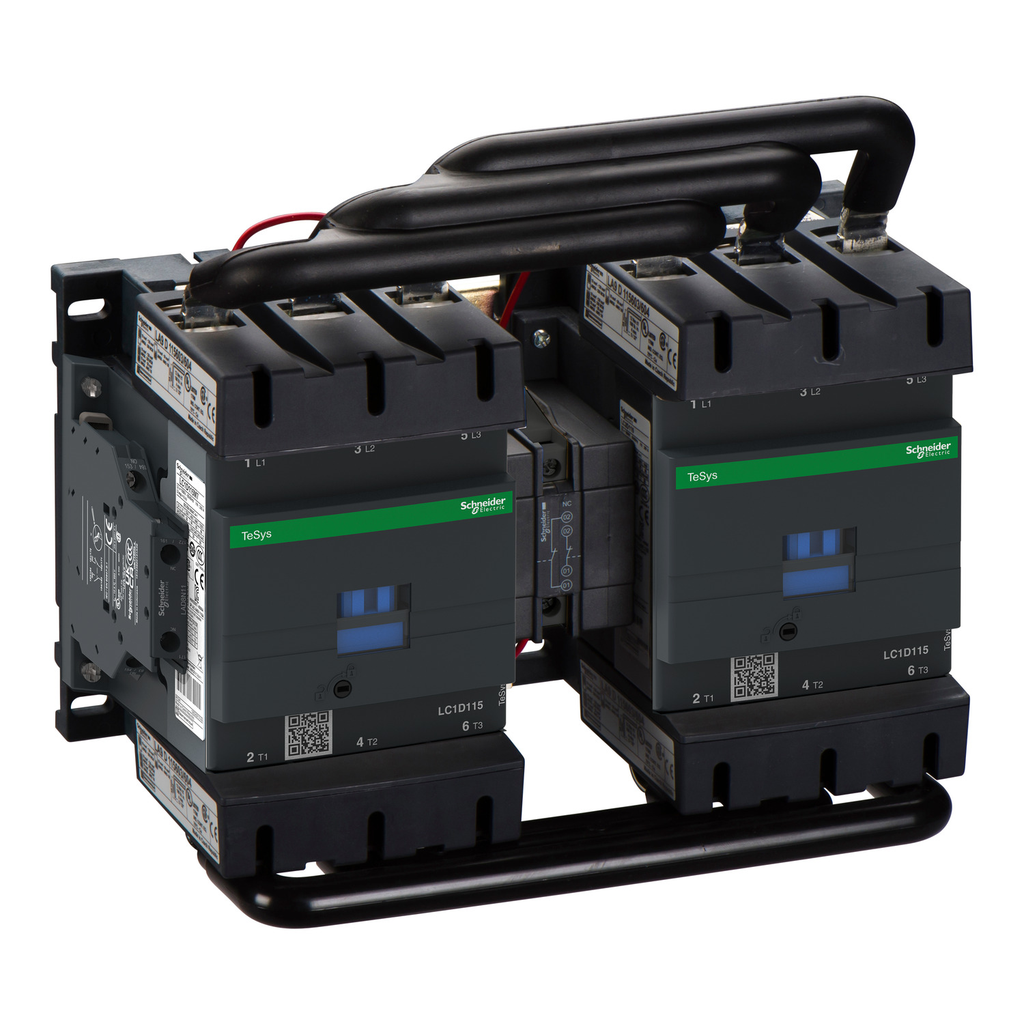

TeSys Deca reversing contactor, 3 poles (3NO), for motor control applications up to 115A/1000V AC-3 (55kW@400V). Rated 115A AC-3 55kW@400V, it includes a 120V 50/60Hz AC coil, 2NO+2NC aux contacts, mechanical and electrical interlock. It provides 120V 50/60Hz AC coils with transient suppressor module, 2NO+2NC built-in auxiliary contacts (NC mirrror certified), power connection by screw connectors 2 inputs, control by screw clamp terminals. For operating rates until 2400 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (266mm width), mounting on 2 DIN-rails or screw fixing. With pre-wired reversing power connections, mechanical and electrical interlock. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine). Assembled with mechanical and electrical interlock and pre-wired reversing circuit. Clear separation between power and control circuits, easy front access to coil and auxiliary contacts connections. Equipped with a 120V AC coil that can be supplied at 50Hz or 60Hz. Provides 4 built-in auxiliary contacts 2NO + 2NC, NC contacts are mirror certified suitable to be included in the control of safety systems. High electrical durability, guaranteed for 0.9 million cycles at 115A AC-3 440V, for demanding motor switching applications. Robust design with high making and breaking capacities up to 20 In. Connection by screw clamp terminals.

• Prop 65
• WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov

• Environment
• Mechanical Robustness : vibrations contactor open2 Gn, 5...300 Hz || vibrations contactor closed4 Gn, 5...300 Hz || shocks contactor closed15 Gn for 11 ms || shocks contactor open6 Gn for 11 ms
• Ambient Air Temperature For Operation : -40-60 °C || 60-70 °C with derating
• Height : 158 mm
• Climatic Withstand : IACS E10
• Pollution Degree : 3
• Net Weight : 6.35 kg
• Flame Retardance : V1 conforming to UL 94
• Ambient Air Temperature For Storage : -60-80 °C
• Protective Treatment : TH IEC 60068-2-30
• Ip Degree Of Protection : IP20 front face IEC 60529
• Operating Altitude : 0...9842.52 ft (0...3000 m)
• Fire Resistance : 850 °C IEC 60695-2-1
• Width : 266 mm
• Depth : 148 mm
• Contractual warranty
• Warranty : 18 months
• Environmental data
• Rohs Exemption Information : Yes
• Packaging Made With Recycled Cardboard : Yes
• Mercury Free : Yes
• Environmental Disclosure : ENVPEP060301EN
• Packaging Without Single Use Plastic : Yes
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Scip Number : a530c666-91dd-4119-8d61-f1c22a361ecb
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• California Proposition 65 : WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
• Circularity Profile : ENVEOLI100405EN
• Take-Back : No
• Carbon Footprint Of The Use Phase [B2, B3, B4, B6] : 163.00264388489205
• Carbon Footprint Of The Manufacturing Phase [A1 To A3] : 60.178417734082934
• Carbon Footprint Of The Distribution Phase [A4] : 2 kg CO2 eq.
• Pvc Free : Yes
• Carbon Footprint Of The Installation Phase [A5] : 0.7 kg CO2 eq.
• Sustainable Packaging : Yes
• Total Lifecycle Carbon Footprint : 237 kg CO2 eq.
• Eu Rohs Directive : Compliant with Exemptions
• Carbon Footprint Of The End-Of-Life Phase [C1 To C4] : 11.24154728284199
• Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 237.00410156700937
• Complementary
• Non-Overlap Time : 1.5 ms on de-energisation between NC and NO contact || 1.5 ms on energisation between NC and NO contact
• Minimum Switching Current : 5 mA for signalling circuit
• Control Circuit Voltage Limits : 0.3...0.5 Uc (55-55 °C):drop-out AC 50/60 Hz || 0.8...1.15 Uc (55-55 °C):operational AC 50/60 Hz
• Insulation Resistance : > 10 MOhm for signalling circuit
• Inrush Power In Va : 280-350 VA 60 Hz 0.8 20 °C) || 280-350 VA 50 Hz 0.8 20 °C)
• Coil Technology : built-in bidirectional peak limiting diode suppressor
• Minimum Switching Voltage : 17 V for signalling circuit
• Signalling Circuit Frequency : 25...400 Hz
• Heat Dissipation : 3-8 W 50/60 Hz
• Auxiliary Contacts Type : mechanically linked 1 NO + 1 NC IEC 60947-5-1 || mirror contact 1 NC IEC 60947-4-1
• Hold-In Power Consumption In Va : 2-18 VA 20 °C) 0.3 60 Hz || 2-18 VA 20 °C) 0.3 50 Hz
• Specifications
• Country of Origin : Czechia
• Width : 266 mm
• Height : 158 mm
• Weight : 6.35 kg
• Interlocking Type : electrical || mechanical
• [Uc] Control Circuit Voltage : 120 V AC 50/60 Hz
• [Ue] Rated Operational Voltage : power circuit <= 1000 V AC 25...400 Hz || power circuit <= 300 V DC
• Power Dissipation Per Pole : 24 W AC-1 || 7.9 W AC-3
• Average Impedance : 0.6 mOhm - Ith 200 A 50 Hz for power circuit
• Auxiliary Contact Composition : 1 NO + 1 NC
• [Ith] Conventional Free Air Thermal Current : 200 A (at 60 °C) for power circuit
• Mounting Support : plate || rail
• Control Circuit Type : AC 50/60 Hz
• Standards : CSA C22.2 No 14 || EN 60947-4-1 || EN 60947-5-1 || IEC 60947-4-1 || IEC 60947-5-1 || UL 508
• Safety Reliability Level : B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 || B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
• Contactor Application : motor control || resistive load
• Rated Breaking Capacity : 1100 A at 440 V for power circuit conforming to IEC 60947
• Product Or Component Type : reversing contactor
• Product Certifications : BV || CCC || CSA || DNV || GL || RINA || UL || EAC || UKCA
• Irms Rated Making Capacity : 140 A AC for signalling circuit conforming to IEC 60947-5-1 || 250 A DC for signalling circuit conforming to IEC 60947-5-1 || 1260 A at 440 V for power circuit conforming to IEC 60947
• Product Name : TeSys Deca
• Associated Fuse Rating : 10 A gG for signalling circuit conforming to IEC 60947-5-1 || 250 A gG at <= 690 V coordination type 1 for power circuit || 200 A gG at <= 690 V coordination type 2 for power circuit
• [Uimp] Rated Impulse Withstand Voltage : 8 kV IEC 60947
• Connections - Terminals : control circuit screw clamp terminals 2 1-2.5 mm²flexible with cable end || control circuit screw clamp terminals 1 1-2.5 mm²flexible without cable end || control circuit screw clamp terminals 2 1-2.5 mm²flexible without cable end || control circuit screw clamp terminals 1 1-2.5 mm²flexible with cable end || control circuit screw clamp terminals 1 1-2.5 mm²solid without cable end || control circuit screw clamp terminals 2 1-2.5 mm²solid without cable end || power circuit connector 1 10-120 mm²flexible without cable end || power circuit connector 2 10-50 mm²flexible without cable end || power circuit connector 1 10-120 mm²flexible with cable end || power circuit connector 2 10-50 mm²flexible with cable end || power circuit connector 1 10-120 mm²solid without cable end || power circuit connector 2 10-50 mm²solid without cable end
• Range : TeSys
• Pole Contact Composition : 3 NO
• Device Presentation : preassembled with reversing power busbar
• Utilisation Category : AC-1 || AC-3 || AC-3e
• [Ie] Rated Operational Current : 200 A (at <60 °C) at <= 440 V AC AC-1 for power circuit || 115 A (at <60 °C) at <= 440 V AC AC-3 for power circuit
• Operating Time : 20...50 ms closing || 6...20 ms opening
• Maximum Operating Rate : 2400 cyc/h 60 °C
• Electrical Durability : 0.8 Mcycles 200 A AC-1 <= 440 V || 0.95 Mcycles 115 A AC-3 <= 440 V || 0.95 Mcycles 115 A AC-3e <= 440 V
• Tightening Torque : control circuit 1.2 N.m screw clamp terminals flat Ø 6 mm || control circuit 1.2 N.m screw clamp terminals Philips No 2 || power circuit 12 N.m connector hexagonal 4 mm || control circuit 1.2 N.m screw clamp terminals pozidriv No 2
• Poles Description : 3P
• Overvoltage Category : III
• Motor Power Kw : 30 kW at 220...230 V AC 50-60 Hz || 55 kW at 380...400 V AC 50-60 Hz || 59 kW at 415 V AC 50-60 Hz || 59 kW at 440 V AC 50-60 Hz || 75 kW at 500 V AC 50-60 Hz || 80 kW at 660...690 V AC 50-60 Hz || 65 kW at 1000 V AC 50-60 Hz
• Maximum Horse Power Rating : 30 hp at 200/208 V AC 60 Hz for 3 phase motors || 40 hp at 230/240 V AC 60 Hz for 3 phase motors || 75 hp at 460/480 V AC 60 Hz for 3 phase motors || 100 hp at 575/600 V AC 60 Hz for 3 phase motors
• [Ui] Rated Insulation Voltage : power circuit 600 V CSA || power circuit 600 V UL || signalling circuit 690 V IEC 60947-1 || signalling circuit 600 V CSA || signalling circuit 600 V UL || power circuit 1000 V IEC 60947-4-1
• Mechanical Durability : 8000000 cycles
• Device Short Name : LC2D
• [Icw] Rated Short-Time Withstand Current : 250 A 40 °C - 10 min for power circuit || 550 A 40 °C - 1 min for power circuit || 950 A 40 °C - 10 s for power circuit || 1100 A 40 °C - 1 s for power circuit || 100 A - 1 s for signalling circuit || 120 A - 500 ms for signalling circuit || 140 A - 100 ms for signalling circuit
• Protective Cover : with
