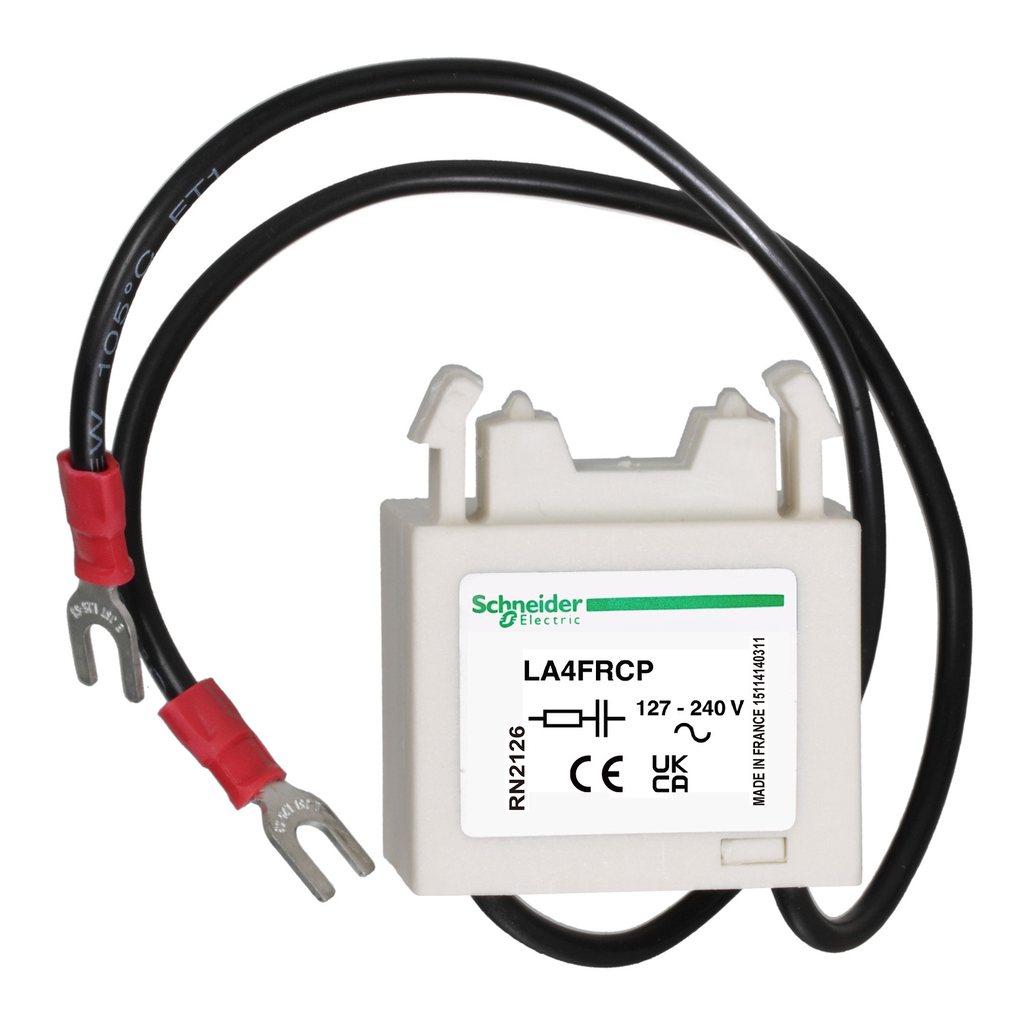

TeSys F suppressor block, for coil protection of contactors LC1F, LC2F, CR1F. To be used for 127-240V AC control circuits, it provides RC protection limiting the transient voltage to 3 Uc max. Clipping on bracket LA9D09981 (to be ordered separately), to be connected to the coil screw terminals. It conforms to RoHS/REACh regulation.

• Complementary Attributes
• Maximum Peak Voltage : 3 Uc
• UC Control Circuit Voltage : 127...240 V AC
• Important Information Attributes
• Persona Type Ids : EU, LC, OM, OM8, PB
• Persona Type Names : End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Carbon Footprint Of The Distribution Phase A4 : 0.0052125285481239795, 0 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.1 kg CO2 eq., 0.1319174551386623
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 0.4 kg CO2 eq., 0.3965383360522023
• Local Data Status : Publishable
• Local Publishable Date : 2025-07-24
• Serviceability : No
• Traceability : No
• Field Service Division : PPIBS
• Legacy WEEE Scope : In
• Scope Perimeter : At least in Europe
• EOLI Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS EUR In Scope : Yes
• ROHS EUR Status : Compliant
• ROHS EUR Full Compliance Status : Compliant
• ROHS EUR Full Compliance Status Id : COMPLIANT
• China ROHS In Scope : No
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : N
• WD Status : 1 - GSC certified
• Function Option Id : STANDARD
• Function Option : Standard
• Compatibility Code : LA4F
• Device Short Name : LA4F
• Package Weight Lbs : 44.000 g
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : suppressor module
• Range : TeSys
• Range Of Product : TeSys F
• Returnability : No
• Suppressor Technology : RC circuit
• Sustainable Packaging : Yes
• Total Lifecycle Carbon Footprint : 0.5 kg CO2 eq.
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Relationship Type : cross-selling relationship
• Pep Code : ENVPEP1112053EN
• Pep Verification Date : 2025-08-05
• PCR Version : PEP-PCR-ed4-2021 09 06
• PSR Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• Functional Unit Description : It provides a flywheel diode protection ensuring no transient overvoltage. Clip-on side mounting, overall size of the contactor is unchanged.
• Functional Unit Unit : unit
• Product Kit Identifier : N
• Product Manager : SHUREN ZHANG
• Environment Attributes Main
• EU ROHS Directive : Compliant​, Compliant
• ROHS Exemption Information : Yes
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Carbon Footprint : 0.5336683197389885
• Environmental Disclosure : ENVPEP1112053EN
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP1112053EN
• Pep Verification Date : 2025-08-05
• PCR Version : PEP-PCR-ed4-2021 09 06
• PSR Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Product Or Component Type : suppressor module
• Range Of Product : TeSys F
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
